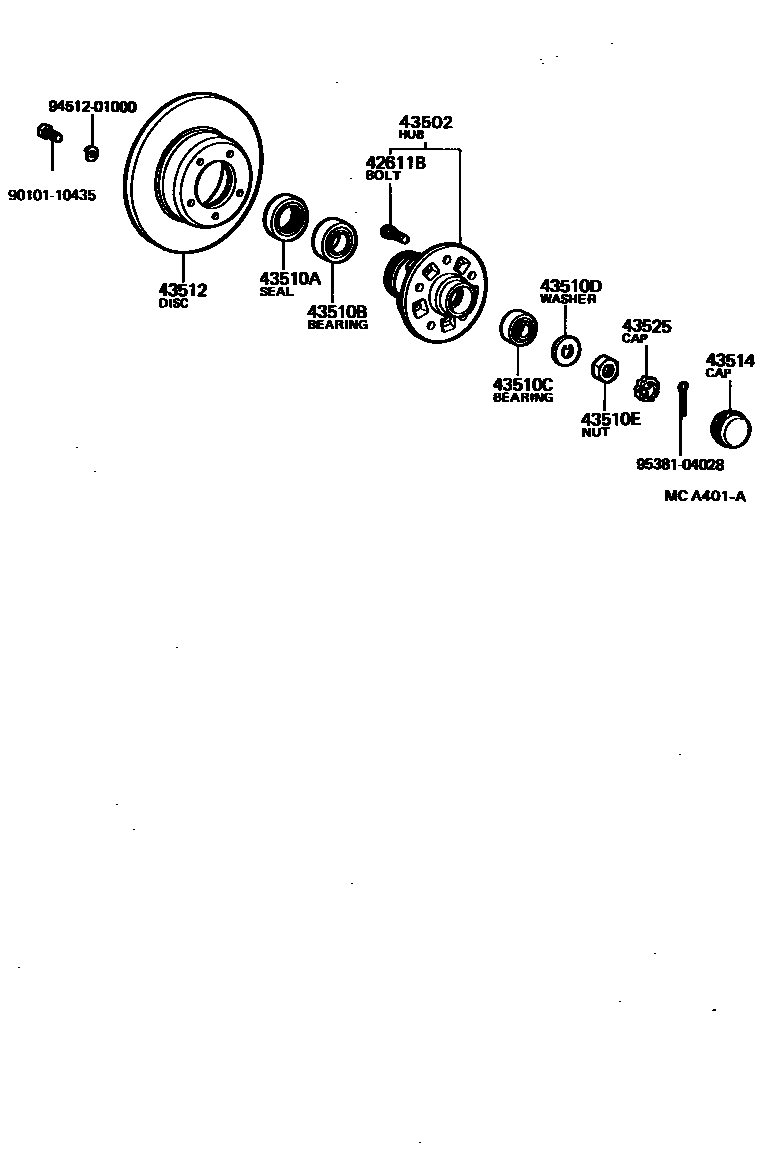

Toyota HILUX — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×10i198311-198808

main90942-02044×12i198311-198411

main90942-02049×12i198508-198903

main90942-02053×12i198411-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-35020×2i198311-198808

main43502-60020×2i198311-198808

main43511-35100×2i198808-198903

main43511-35904×2i198508-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005×2i198311-198808

main90311-62001×2i198311-198808

main90311-66001×2i198508-198903

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34001×2i198512-198808

main90368-34039×2i198311-198512

main90368-49084×2i198311-198903

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21001×2i198603-198808

main90368-21065×2i198311-198603

main90368-45087×2i198311-198903

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007×2i198311-198808

main90214-42030×2i198311-198903

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i198311-198808

43512DISC, FRONT

main43512-26040×2i198311-198808

main43512-35070×2i198311-198808

main43512-35110×2i198508-198808

main43512-35190×2i198808-198903

43514CAP, FRONT HUB GREASE

main43423-35010×2i198311-198903

main43514-35010×2i198311-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i198311-198808

9010110435

main90101-10435

9451201000

main94512-01000

9538104028

main95381-04028

13 parts on this diagram · 3 diagrams in section

FRONT AXLE HUB for Toyota HILUX

This section contains 42 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota HILUX. Key components include: BOLT, HUB (FOR FRONT AXLE), SPACER (FOR DRIVE SHAFT), WASHER, CONE (FOR FRONT AXLE SHAFT), RING, DRIVE SHAFT SNAP, FLANGE, FRONT AXLE OUTER SHAFT.
