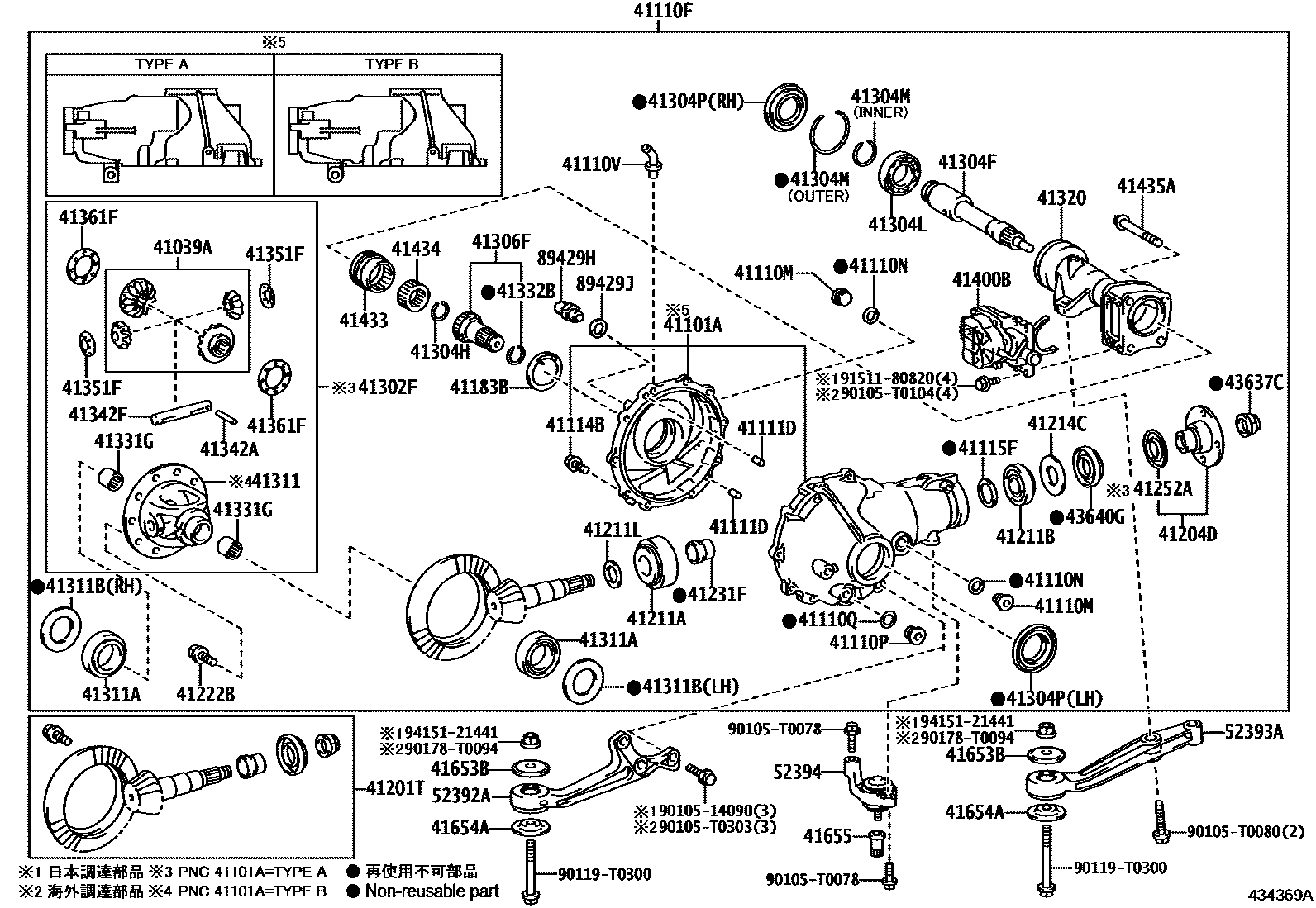

Toyota HILUX — FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41115FRING, FRONT DIFFERENTIAL OIL STORAGE
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41304PSEAL, OIL (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
41320TUBE ASSY, FRONT DIFFERENTIAL
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41400BACTUATOR ASSY, DIFFERENTIAL MOTOR
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
41655NUT, FRONT DIFFERENTIAL MOUNT, NO.1
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
52392ASUPPORT, FRONT DIFFERENTIAL, NO.1
52393ASUPPORT, FRONT DIFFERENTIAL, NO.2
52394SUPPORT, FRONT DIFFERENTIAL, NO.3
89429HSENSOR, TEMPERATURE
89429JGASKET(FOR TEMPERATURE SENSOR)
9010514090
main90105-14090
90105T0078
main90105-T0078
90105T0080
main90105-T0080
90105T0104
main90105-T0104
90105T0303
main90105-T0303
90119T0300
main90119-T0300
90178T0094
main90178-T0094
9151180820
main91511-80820
9415121441
main94151-21441
61 parts on this diagram · 2 diagrams in section
FRONT AXLE HOUSING & DIFFERENTIAL for Toyota HILUX
This section contains 69 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota HILUX. Key components include: GEAR KIT, DIFFERENTIAL, CARRIER SUB-ASSY, DIFFERENTIAL, FRONT, CARRIER ASSY, DIFFERENTIAL, FRONT, PLUG, FRONT DIFFERENTIAL FILLER, GASKET, FRONT DIFFERENTIAL FILLER PLUG.
