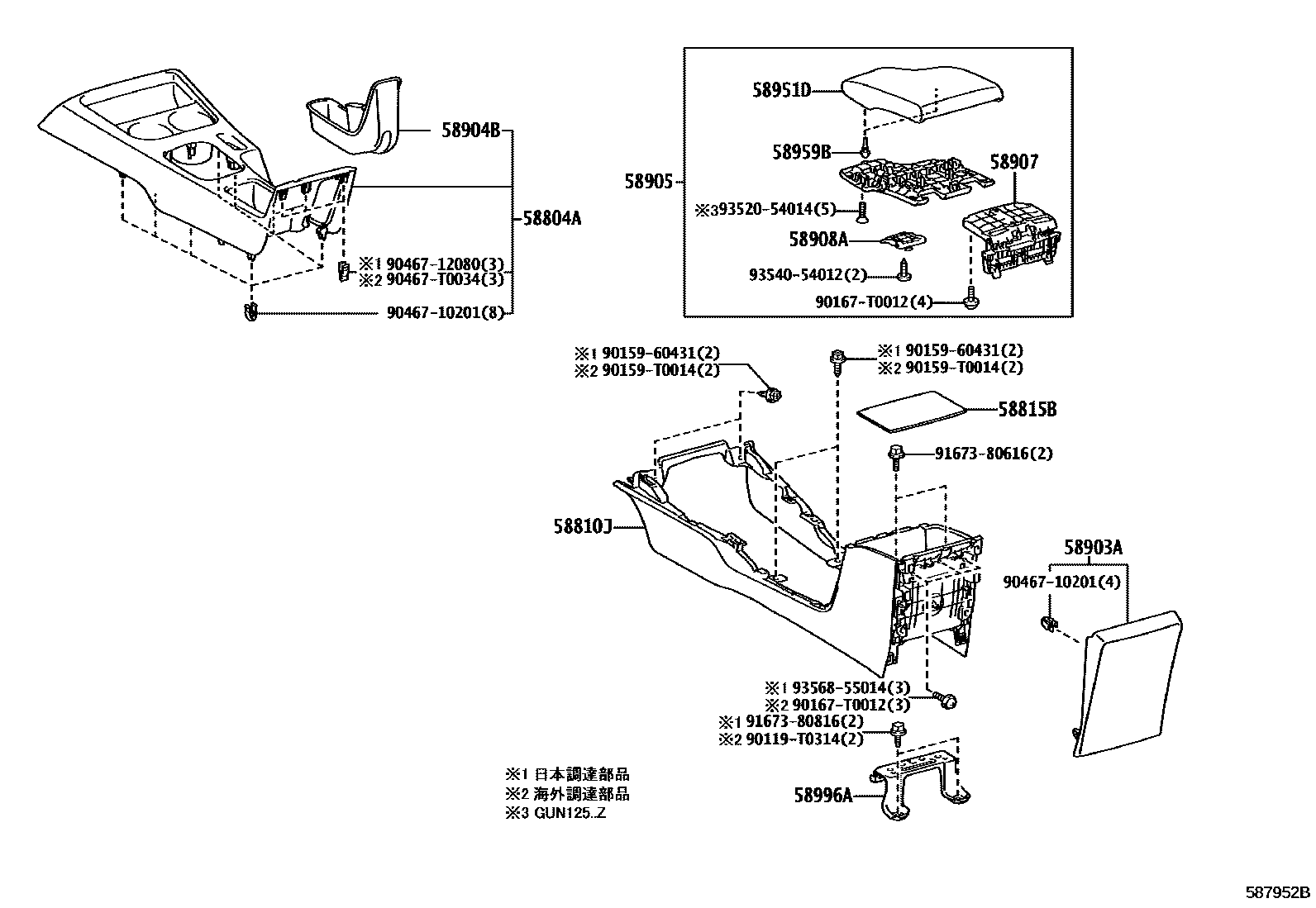

Toyota HILUX — CONSOLE BOX & BRACKET

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-KK090-C1i202108-202207

BLACK/GRAY,TRIM2#

main58804-KK090-C2i202108-202207

58810JBOX ASSY, CONSOLE

main58810-KK250-C0i202108-202207

BLACK,TRIM2#

58815BCARPET, CONSOLE BOX

main58815-KK010i202108-202207

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-KK020-C0i202108-202207

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-KK060-C0i202108-202207

main58904-KK060-C4i202108-202207

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-KK010-C7i202108-202207

BLACK/BLACK,TRIM2#

main58905-KK110-C0i202108-202207

BLACK/BLACK,TRIM20

main58905-KK110-C7i202108-202207

BLACK/GR RED,TRIM23

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-KK010-C0i202108-202207

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-KK010i202108-202207

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-KK010-C2i202108-202207

BLACK,TRIM2#

main58951-KK120-C0i202108-202207

BLACK,TRIM20

main58951-KK120-C4i202108-202207

BLACK/GR RED,TRIM23

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-T0008×2i202108-202207

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-KK020i202108-202207

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

90167T0012

main90167-T0012

9046710201

main90467-10201

9046712080

main90467-12080

90467T0034

main90467-T0034

9167380616

main91673-80616

9167380816

main91673-80816

9352054014

main93520-54014

9354054012

main93540-54012

9356855014

main93568-55014

23 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota HILUX

This section contains 23 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX. Key components include: PANEL SUB-ASSY, CONSOLE, UPPER, BOX ASSY, CONSOLE, CARPET, CONSOLE BOX, PANEL SUB-ASSY, CONSOLE REAR END, COVER SUB-ASSY, PARKING BRAKE HOLE.
