Toyota HILUX — CONSOLE BOX & BRACKET

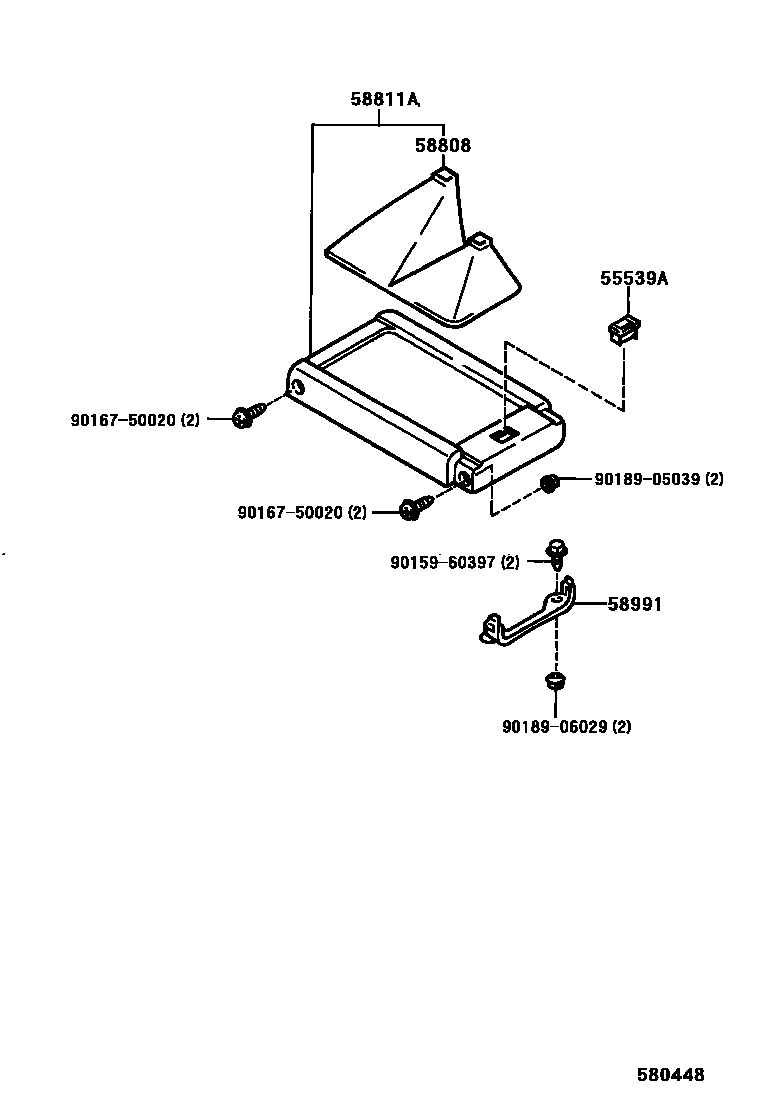

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-20020-12i198904-199108
RED,TRIM3#
main55539-20020-24×2i199108-199308
main55539-20020-B0×2i199108-199511
main55539-20020-E0i198904-199108
BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-35010-B0i199208-199304
GRAY,TRIM1#
main58808-35010-J0i199208-199304
BIUE,TRIM8#
main58808-35011-B0i199304-199503
BLUE,TRIM1#
main58808-35011-J0i199304-199408
BLUE,TRIM8#
main58808-35012-B0i199503-199708
GRAY,TRIM1#
main58808-35020-B0i199208-199304
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58808-35020-J0i199208-199304
BIUE,TRIM8#; W(*ADD),BIUE,TRIM8#
main58808-35021-B0i199304-199503
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58808-35021-J0i199304-199408
W(*ADD),BLUE,TRIM8#
main58808-35022-B0i199503-199708
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58808-35040-B0i199305-199308
GRAY,TRIM1#
main58808-35040-J0i199305-199308
BLUE,TRIM8#
main58808-35070-B0i199308-199503
GRAY,TRIM1#
main58808-35071-B0i199503-199708
GRAY,TRIM1#
main58808-89116-03i198809-199208
GRAY,TRIM1#
main58808-89116-04i198809-199208
BLUE,TRIM8#
main58808-89117-02i198904-199108
RED,TRIM3#
main58808-89117-03i199108-199208
W(*ADD),GRAY,TRIM1#
main58808-89117-04i199008-199208
BLUE,TRIM8#
main58808-89117-06i198904-199108
BROWN,TRIM4#
main58808-89120-02i199008-199108
RED,TRIM3#
main58808-89120-03i199008-199305
GRAY,TRIM1#
main58808-89120-04i199008-199305
BLUE,TRIM8#
main58808-89120-06i199008-199108
BROWN,TRIM4#
58811ABOX, CONSOLE, FRONT
main58802-35010-B0i199208-199304
GRAY,TRIM1#
main58802-35010-J0i199208-199304
BIUE,TRIM8#
main58802-35011-B0i199304-199503
BLUE,TRIM1#
main58802-35011-J0i199304-199408
BLUE,TRIM8#
main58802-35012-B0i199503
GRAY,TRIM1#
main58802-35020-B0i199208-199304
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58802-35020-J0i199208-199304
BIUE,TRIM8#; W(*ADD),BIUE,TRIM8#
main58802-35021-B0i199304-199503
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58802-35021-J0i199304-199308
BLUE,TRIM8#
main58802-35022-B0i199503
GRAY,TRIM1#; W(*ADD),GRAY,TRIM1#
main58802-35040-B0i199305-199308
GRAY,TRIM1#
main58802-35040-J0i199305-199308
BLUE,TRIM8#
main58802-35070-B0i199308-199503
GRAY,TRIM1#
main58802-35071-B0i199503
GRAY,TRIM1#
main58802-35100-B0i199508
GRAY,TRIM1#
main58802-89116-03i198809-199208
GRAY,TRIM1#
main58802-89116-04i198809-199208
BLUE,TRIM8#
main58802-89117-02i198904-199108
RED,TRIM3#
main58802-89117-03i199108-199208
W(*ADD),GRAY,TRIM1#
main58802-89117-04i199108-199208
W(*ADD),BLUE,TRIM8#
main58802-89117-06i198904-199108
BROWN,TRIM4#
main58802-89119-02i199008-199108
RED,TRIM3#
main58802-89119-03i199008-199305
GRAY,TRIM1#
main58802-89119-04i199008-199305
BLUE,TRIM8#
main58802-89119-06i199008-199108
BROWN,TRIM4#
main58811-89120-03i198809
GRAY,TRIM1#
main58811-89120-04i198809-199408
BLUE,TRIM8#
main58811-89120-06i198809-199108
BROWN,TRIM4#
main58811-89121-02i198904-199108
RED,TRIM3#
main58811-89121-03i198904-199303
GRAY,TRIM1#
main58811-89121-04i199008-199303
BLUE,TRIM8#
main58811-89121-06i198904-199108
BROWN,TRIM4#
main58811-89121-R9i199303-199308
BLUE,TRIM8#
main58811-89121-S4i199303-199511
GRAY,TRIM1#
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
main58991-89103i198809
9015960397
main90159-60397
9016750020
main90167-50020
9018905039
main90189-05039
9018906029
main90189-06029

8 parts on this diagram · 7 diagrams in section

CONSOLE BOX & BRACKET for Toyota HILUX

This section contains 33 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX. Key components include: COVER, SPARE SWITCH HOLE, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, BOX, CONSOLE, FRONT.
