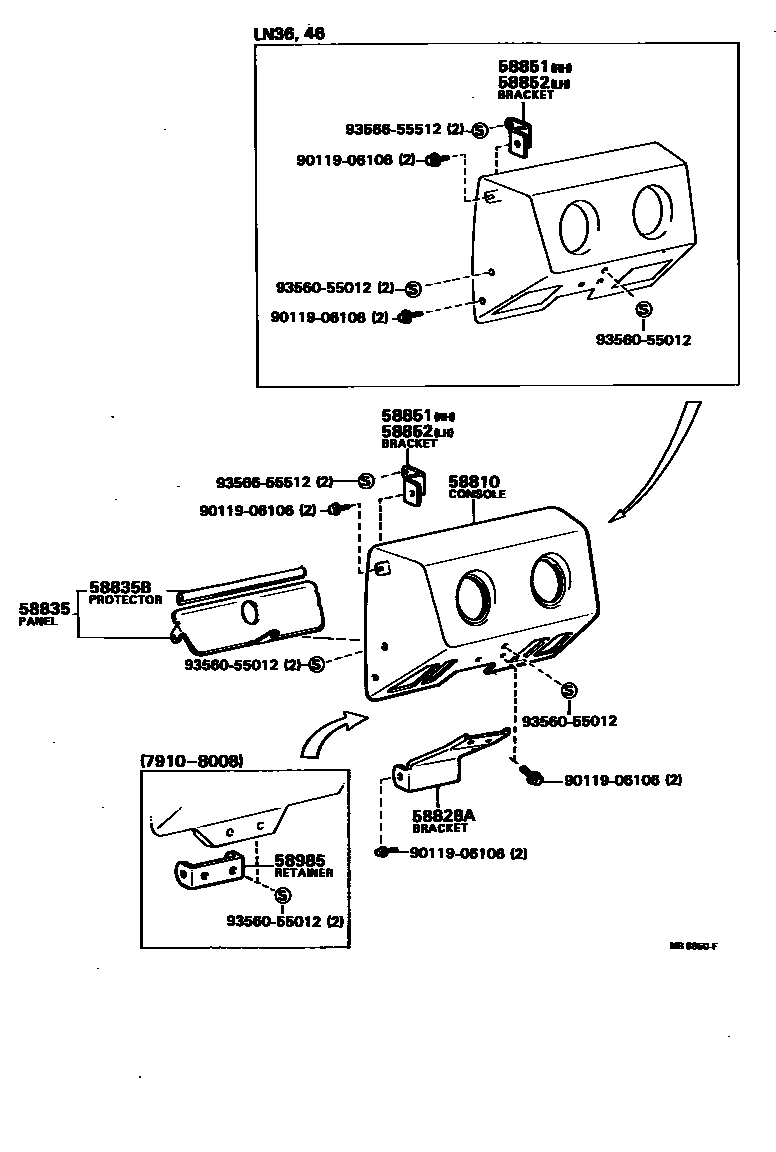

Toyota HILUX — CONSOLE BOX & BRACKET
58810CONSOLE ASSY
SR PACKAGE,BLACK,BLACK,TRIM2#
SR PACKAGE,BEIGE,BEIGE,TRIM4#
SR PACKAGE,BLACK,BLACK,TRIM2#
SR PACKAGE,BROWN,BROWN,TRIM4#
58828ABRACKET, CONSOLE BOX, LOWER
SR PACKAGE
58835PANEL, CONSOLE, UPPER
SR PACKAGE
SR PACKAGE
58835BPROTECTOR, WIRING HARNESS
SR PACKAGE
58851BRACKET, CONSOLE SUPPORT, UPPER RH
SR PACKAGE
58852BRACKET, CONSOLE SUPPORT, UPPER LH
SR PACKAGE
58985RETAINER, CONSOLE BOX
SR PACKAGE
9011906106
main90119-06106
9356055012
main93560-55012
9356655512
main93566-55512
10 parts on this diagram · 2 diagrams in section
CONSOLE BOX & BRACKET for Toyota HILUX
This section contains 29 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota HILUX. Key components include: COVER, AUTO DRIVE OPENING, BRACKET, CONSOLE BOX SUPPORT, FRONT, BRACKET, CONSOLE BOX SUPPORT, REAR, CONSOLE ASSY, SPACER, CONSOLE COMPARTMENT DOOR STOPPER.
