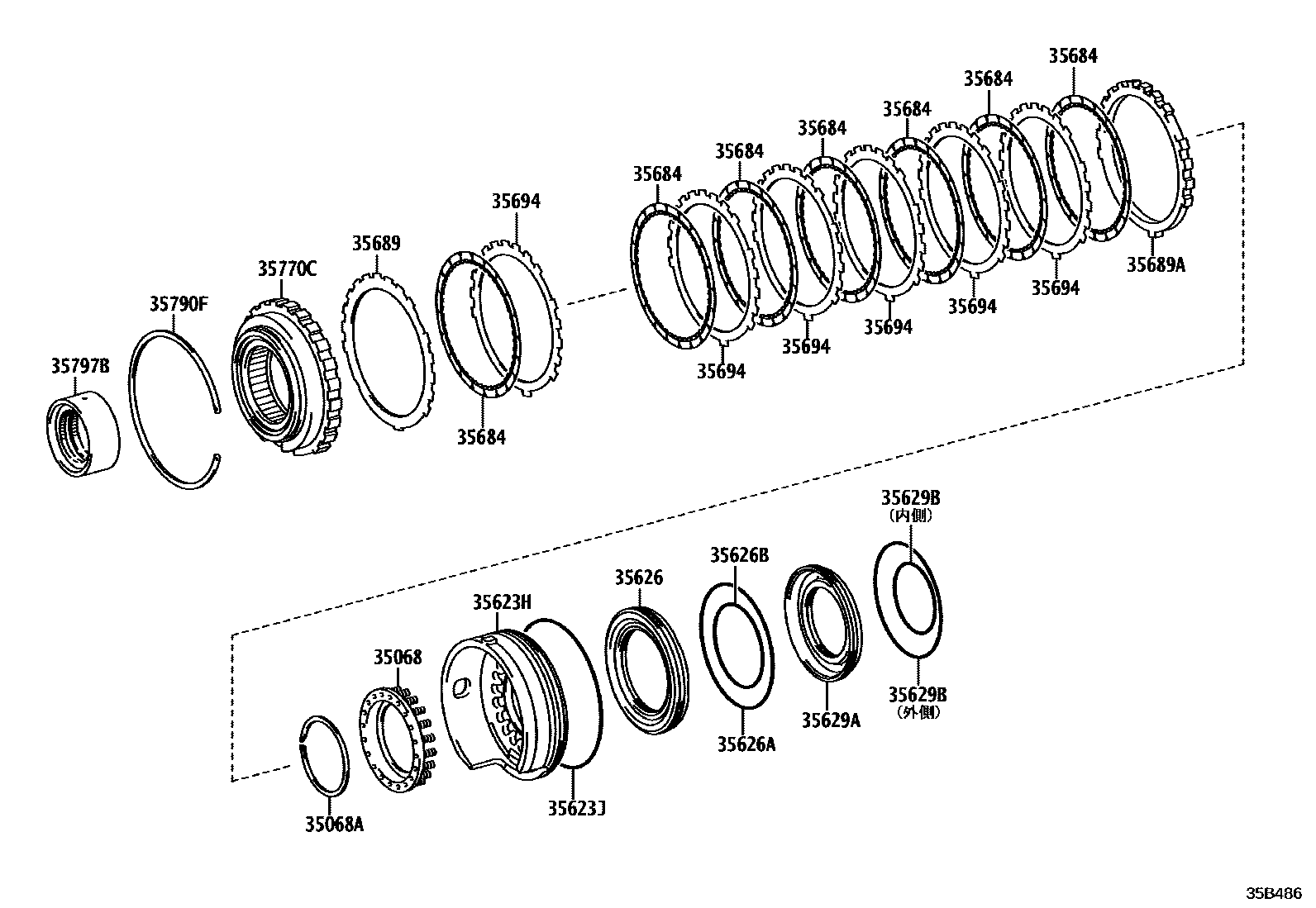

Toyota HILUX — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-0K010i202308-202407

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-61001i202308-202407

35623HPISTON, 1ST & REVERSE BRAKE

main35623-0K010i202308-202407

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-T0072i202308-202407

35626SLEEVE, BRAKE REACTION

main35626-50010i202308-202407

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-T0073i202308-202407

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-T0074i202308-202407

35629APISTON, BRAKE, NO.4

main35629-50020i202308-202407

35629BRING, O (FOR BRAKE PISTON NO.4)

main90301-T0075i202308-202407

main90301-T0076i202308-202407

35684DISC, BRAKE, NO.4

main35684-0K010×7i202308-202407

35689FLANGE, BRAKE, NO.4

main35689-60270i202308-202407

main35689-60280i202308-202407

main35689-60290i202308-202407

main35689-60300i202308-202407

main35689-60310i202308-202407

main35689-60320i202308-202407

main35689-60330i202308-202407

main35689-60340i202308-202407

main35689-60350i202308-202407

main35689-60360i202308-202407

main35689-60370i202308-202407

35689AFLANGE, BRAKE, NO.4

main35689-71010i202308-202407

35694PLATE, BRAKE, NO.4

main35694-0K010×6i202308-202407

35770CCLUTCH ASSY, 1WAY NO.3

main35770-0K020i202308-202407

35790FRING, HOLE SNAP(FOR 1WAY CLUTCH)

main90521-99131i202308-202407

35797BRACE, 1 WAY CLUTCH, INNER

main35797-60020i202308-202407

16 parts on this diagram · 1 diagram in section

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) for Toyota HILUX

This section contains 16 genuine Toyota parts for the BRAKE NO.3, 1ST & REVERSE BRAKE (ATM) system of the Toyota HILUX. Key components include: SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN, RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING), PISTON, 1ST & REVERSE BRAKE, RING, O (FOR 1ST & REVERSE BRAKE), SLEEVE, BRAKE REACTION.
