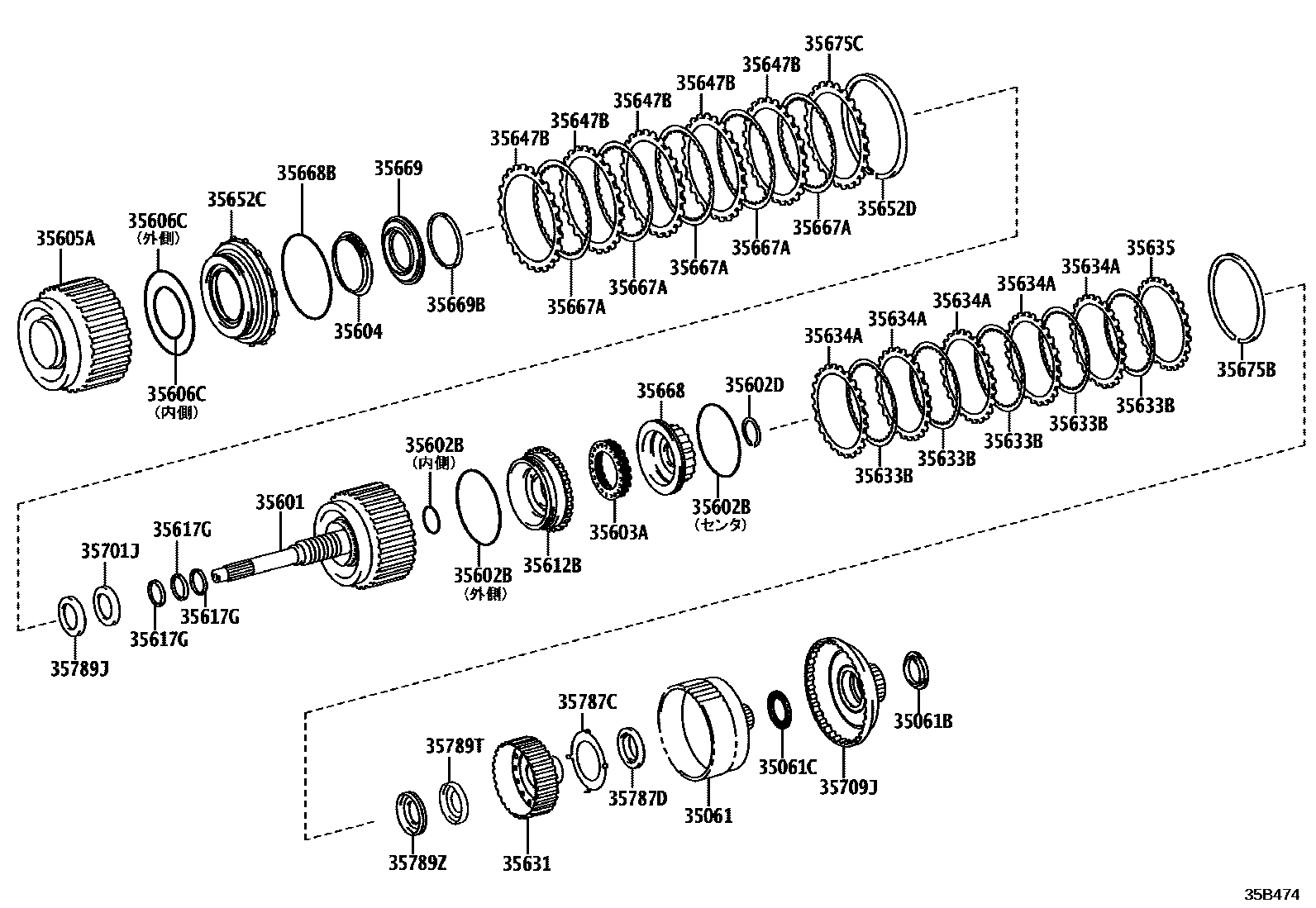

Toyota HILUX — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35061HUB SUB-ASSY, FORWARD CLUTCH
35061BRACE, THRUST BEARING(FOR FORWARD CLUTCH HOB)
35061CBEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB)
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35617GRING, CLUTCH DRUM OIL SEAL
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35647BPLATE, CLUTCH, NO.2
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
35667ADISK, DIRECT CLUTCH
35668BRING, O(FOR CLUTCH BALANCER)
35669BRING, SNAP (FOR CLUTCH BALANCER)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35709JDRUM SUB-ASSY, SUN GEAR INPUT
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
35789ZBEARING, THRUST NEEDLE ROLLER
33 parts on this diagram · 1 diagram in section
BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) for Toyota HILUX
This section contains 33 genuine Toyota parts for the BRAKE BAND & MULTIPLE DISC CLUTCH (ATM) system of the Toyota HILUX. Key components include: HUB SUB-ASSY, FORWARD CLUTCH, RACE, THRUST BEARING(FOR FORWARD CLUTCH HOB), BEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB), DRUM SUB-ASSY, CLUTCH, RING, O (FOR FORWARD CLUTCH PISTON).
