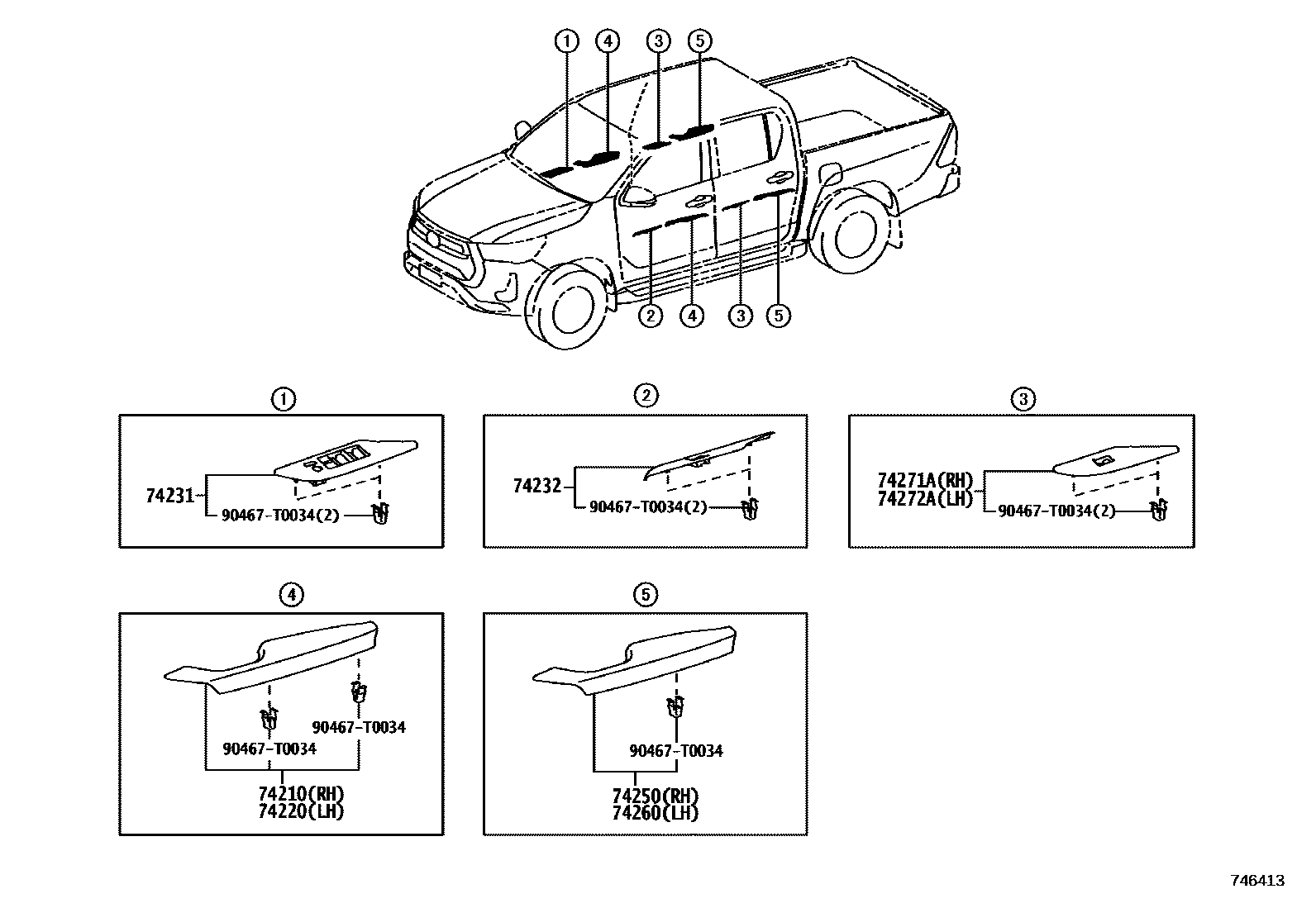

Toyota HILUX — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-0K060-C3i202208-202307

BLACK,TRIM2#

main74210-0K080-C2i202208-202307

main74210-0K080-C4i202208-202307

74220ARMREST ASSY, FRONT, LH

main74220-0K060-C3i202208-202307

BLACK,TRIM2#

main74220-0K080-C2i202208-202307

main74220-0K080-C4i202208-202307

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0K651i202208-202307

main74231-0K660i202208-202307

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0K600i202208-202307

main74232-0K611i202208-202307

74250ARMREST ASSY, REAR RH

main74250-0K020-C3i202208-202307

BLACK,TRIM2#

main74250-0K040-C2i202208-202307

main74250-0K040-C4i202208-202307

74260ARMREST ASSY, REAR LH

main74260-0K020-C3i202208-202307

BLACK,TRIM2#

main74260-0K040-C2i202208-202307

main74260-0K040-C4i202208-202307

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0K310i202208-202307

main74271-0K321i202208-202307

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0K310i202208-202307

main74272-0K321i202208-202307

90467T0034

main90467-T0034

9 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota HILUX

This section contains 22 genuine Toyota parts for the ARMREST & VISOR system of the Toyota HILUX. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, ARMREST ASSY, REAR RH.
