Toyota HILUX — ARMREST & VISOR

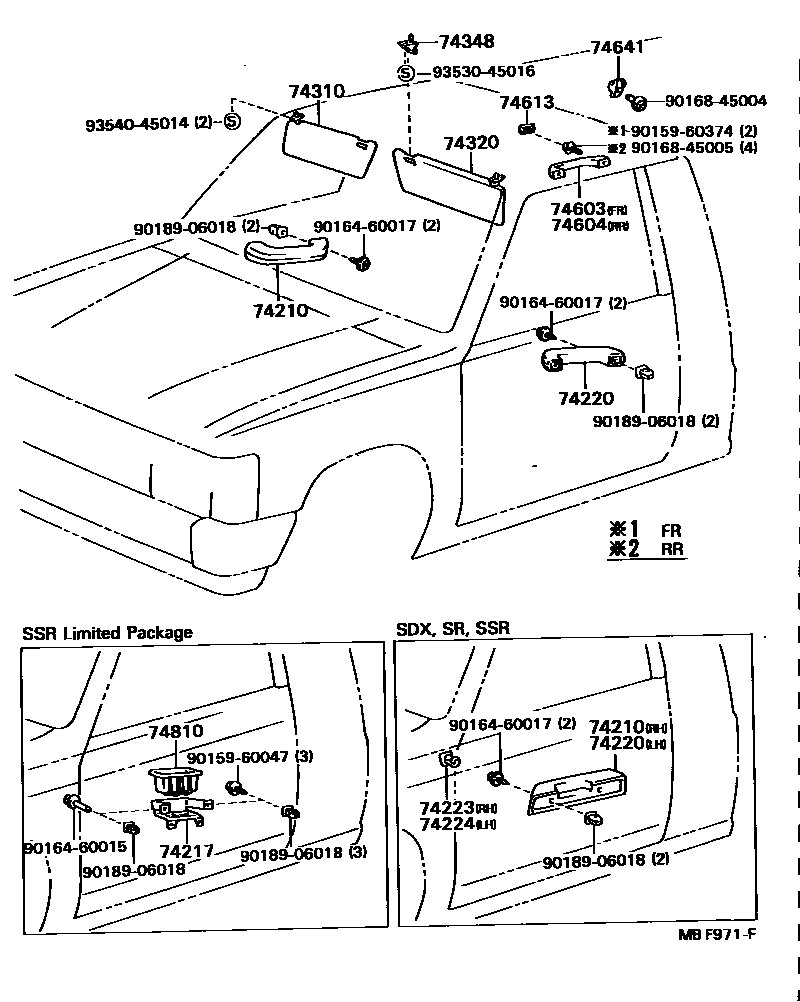

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-89101-06i198311-198608
BROWN,BROWN,TRIM4#
main74210-89101-13i198311-198608
GRAY,GRAY,TRIM1#
main74210-89101-24i198311-198608
BLUE,BLUE,TRIM8#
main74210-89102-03i198311-198608
GRAY,GRAY,TRIM1#
main74210-89102-04i198311-198608
BLUE,BLUE,TRIM8#
main74210-89102-06i198311-198608
BROWN,BROWN,TRIM4#
main74210-89103-03i198608-198808
GRAY,GRAY,TRIM1#
main74210-89103-04i198608-198808
BLUE,BLUE,TRIM8#
main74210-89103-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74210-89104-03i198608-198903
GRAY,GRAY,TRIM1#
main74210-89104-04i198608-198808
BLUE,BLUE,TRIM8#
main74210-89104-05i198608-198903
BEIGE,BEIGE,TRIM4#
74217REINFORCEMENT, DOOR ARMREST
main74217-89101×2i198608-198903
SSR LIMITED PACKAGE
74220ARMREST ASSY, FRONT, LH
main74210-89101-06i198311-198608
BROWN,BROWN,TRIM4#
main74210-89101-13i198311-198608
GRAY,GRAY,TRIM1#
main74210-89101-24i198311-198608
BLUE,BLUE,TRIM8#
main74210-89103-03i198608-198808
GRAY,GRAY,TRIM1#
main74210-89103-04i198608-198808
BLUE,BLUE,TRIM8#
main74210-89103-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74220-89101-03i198311-198608
GRAY,GRAY,TRIM1#
main74220-89101-04i198311-198608
BLUE,BLUE,TRIM8#
main74220-89101-06i198311-198608
BROWN,BROWN,TRIM4#
main74220-89102-03i198608-198903
GRAY,GRAY,TRIM1#
main74220-89102-04i198608-198808
BLUE,BLUE,TRIM8#
main74220-89102-05i198608-198903
BEIGE,BEIGE,TRIM4#
74223CAP, DOOR ARMREST, RH
main74223-89101-03×2i198608-198903
GRAY,GRAY,TRIM1#
main74223-89101-04×2i198608-198808
BLUE,BLUE,TRIM8#
main74223-89101-05×2i198608-198903
BEIGE,BEIGE,TRIM4#
74224CAP, DOOR ARMREST, LH
main74223-89101-03×2i198608-198903
GRAY,GRAY,TRIM1#
main74223-89101-04×2i198608-198808
BLUE,BLUE,TRIM8#
main74223-89101-05×2i198608-198903
BEIGE,BEIGE,TRIM4#
74310VISOR ASSY, RH
main74310-89114-03i198311-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89114-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74310-89114-08i198311-198608
IVORY,IVORY,TRIM4#
main74310-89114-13i198608-198808
GRAY,GRAY,TRIM1#,8#
main74310-89118-03i198311-198508
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89118-08i198311-198508
IVORY,IVORY,TRIM4#
main74310-89119-03i198508-198608
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89119-05i198608-198903
BEIGE,BEIGE,TRIM4#
main74310-89119-08i198508-198608
W/MIRROR,IVORY,IVORY,TRIM4#
main74310-89119-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74310-89125-03i198605-198608
EXTRA,GRAY,LIGHT GRAY,TRIM1#,8#
main74310-89125-13i198704-198705
EVENT,GRAY,GRAY,TRIM1#,8#
74320VISOR ASSY, LH
main74310-89114-03i198311-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74310-89114-05i198608-198808
BEIGE,BEIGE,TRIM4#
main74310-89114-08i198311-198608
IVORY,IVORY,TRIM4#
main74310-89114-13i198608-198903
GRAY,GRAY,TRIM1#,8#
main74320-89108-03i198405-198608
W/MIRROR,LIGHT GRAY,GRAY,TRIM1#,8#
main74320-89108-05i198608-198903
BEIGE,BEIGE,TRIM4#; SSR PACKAGE,BEIGE,BEIGE,TRIM4#
main74320-89108-08i198405-198608
W/MIRROR,IVORY,IVORY,TRIM4#
main74320-89108-13i198608-198903
GRAY,GRAY,TRIM1#,8#; SSR PACKAGE,GRAY,GRAY,TRIM1#,8#
main74320-89122-03i198605-198608
EXTRA,GRAY,LIGHT GRAY,TRIM1#,8#
main74320-89122-13i198709-198710
EVENT,GRAY,GRAY,TRIM1#,8#
74348HOLDER, VISOR
main74348-14010-18×2i198311-198608
IVORY,IVORY,TRIM4#
main74348-14010-23×2i198311-198312
LIGHT GRAY,GRAY,TRIM1#,8#
main74348-14010-25×2i198608-198808
BEIGE,BEIGE,TRIM4#
main74348-14010-33×2i198312-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74348-14010-43×2i198608-198903
GRAY,GRAY,TRIM1#,8#
main74348-89101-05×2i198808-198903
BEIGE,BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-10020-10i198608-198903
GRAY,GRAY,TRIM1#,8#
main74610-10020-13i198405-198903
LIGHT GRAY,GRAY,TRIM1#,8#
main74610-10020-28i198405-198903
IVORY,IVORY,TRIM4#
main74610-10020-55i198608-198903
BEIGE,BEIGE,TRIM4#
main74611-89101-08i198311-198608
IVORY,IVORY,TRIM4#
main74611-89101-15i198608-198808
BEIGE,BEIGE,TRIM4#
main74611-89101-23i198311-198312
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-33i198312-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-43i198608-198808
GRAY,GRAY,TRIM1#,8#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-10020-10×2i198608-198903
GRAY,GRAY,TRIM1#,8#
main74610-10020-13×2i198405-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74610-10020-28×2i198405-198608
IVORY,IVORY,TRIM4#
main74610-10020-55×2i198608-198903
BEIGE,BEIGE,TRIM4#
main74611-89101-08×2i198312-198608
IVORY,IVORY,TRIM4#
main74611-89101-15×2i198608-198808
BEIGE,BEIGE,TRIM4#
main74611-89101-33×2i198312-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74611-89101-43×2i198608-198808
GRAY,GRAY,TRIM1#,8#
74613PLUG, ASSIST GRIP
main74617-14010-13×6i198405-198608
LIGHT GRAY,GRAY,TRIM1#,8#
main74617-14010-20×6i198608-198903
GRAY,GRAY,TRIM1#
main74617-14010-28×6i198405-198608
IVORY,IVORY,TRIM4#
main74617-14010-55×6i198608-198903
BEIGE,BEIGE,TRIM4#
74641HOOK, COAT, B
main74631-89101-05×2i198608-198903
BEIGE,BEIGE,TRIM4#
main74631-89101-13×2i198608-198903
GRAY,GRAY,TRIM1#
74810PULL ASSY, DOOR, INSIDE
main74811-89104-05×2i198608-198903
SSR LIMITED PACKAGE,BEIGE,BEIGE,TRIM4#
main74811-89104-13×2i198608-198903
SSR LIMITED PACKAGE,GRAY,GRAY,TRIM1#
9015960047
main90159-60047
9015960374
main90159-60374
9016460015
main90164-60015
9016460017
main90164-60017
9016845004
main90168-45004
9016845005
main90168-45005
9018906018
main90189-06018
9353045016
main93530-45016
9354045014
main93540-45014

22 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota HILUX

This section contains 25 genuine Toyota parts for the ARMREST & VISOR system of the Toyota HILUX. Key components include: ARMREST ASSY, FRONT, RH, REINFORCEMENT, DOOR ARMREST, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH.
