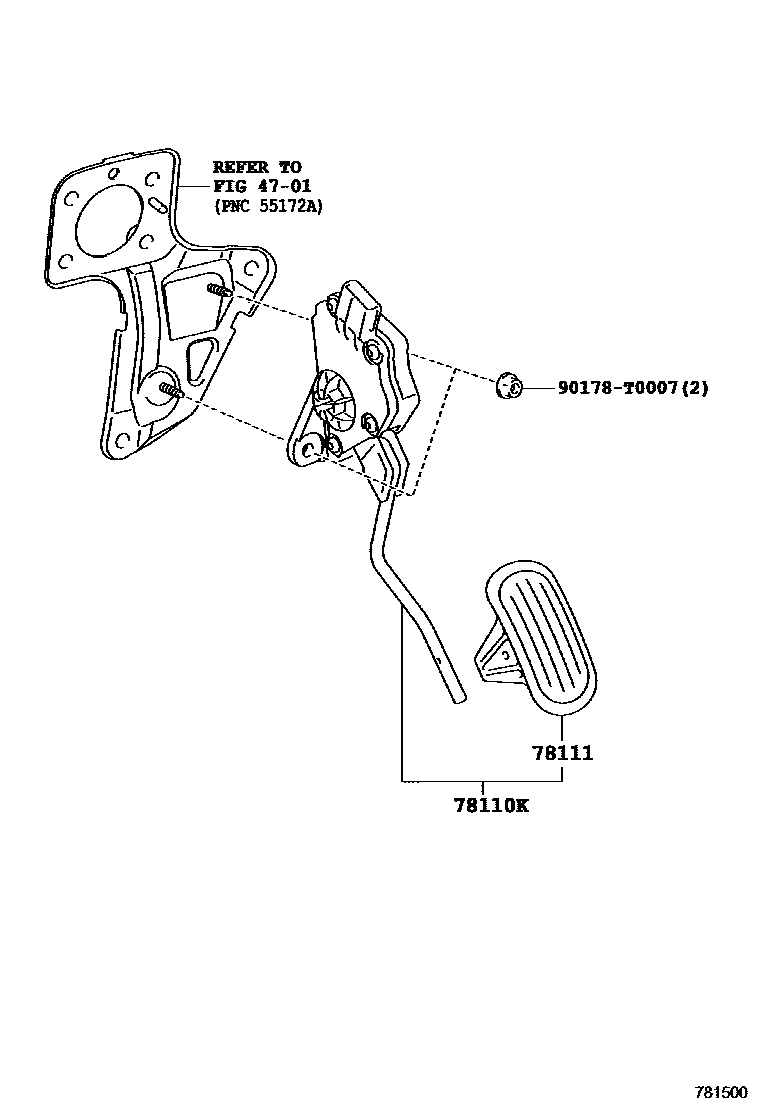

Toyota HILUX — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-0K040i201708-202005

78111PEDAL, ACCELERATOR

main78111-0K010i201708-202005

90178T0007

main90178-T0007

4 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota HILUX

This section contains 4 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: BRAKE PEDAL & BRACKET, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PEDAL, ACCELERATOR.
