Toyota HILUX — ACCELERATOR LINK

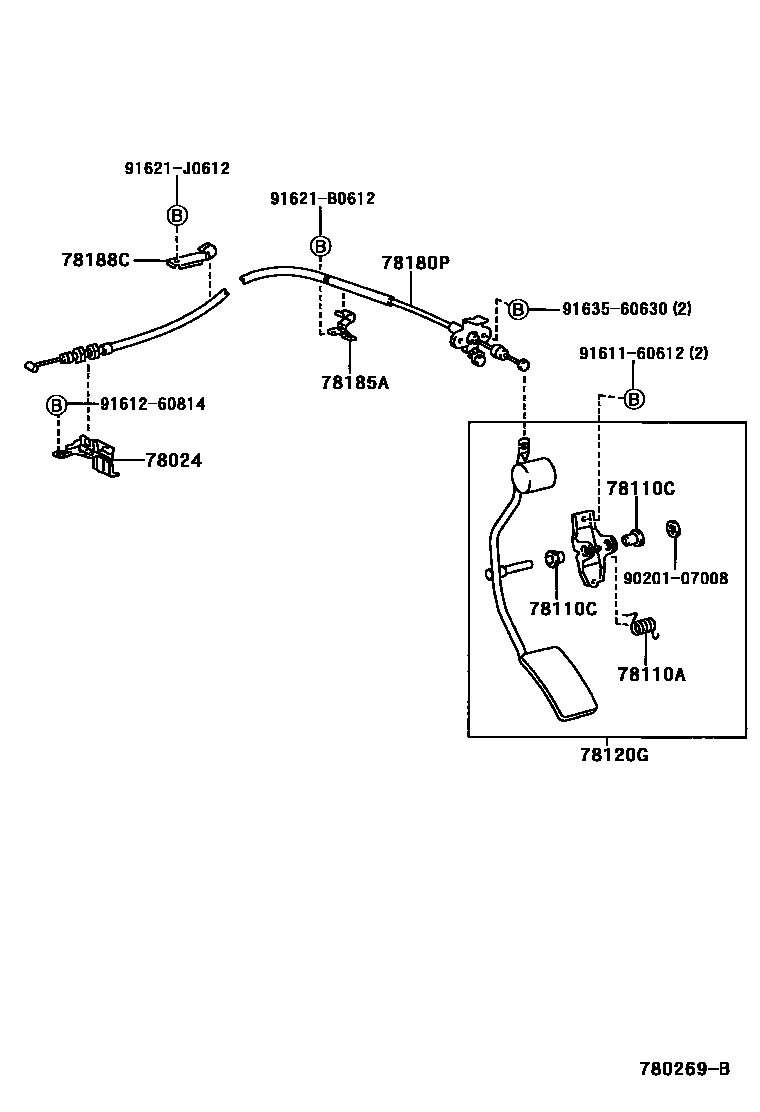

Parts diagram

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22100i199708-200108

main78024-26020i199708-199908

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23075i200108-200407

main90508-32031i199708-199908

main90959-03085i199708-200108

main90959-03088i199908-200108

main90959-03089i200108-200308

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08063×2i199708-200108

78120GROD ASSY, ACCELERATOR PEDAL

main78120-35180i199708-200108

main78120-35190i199708-199908

main78120-35200i199908-200108

main78120-35230i200108-200308

main78120-35290i200108-200308

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35300i199708-199908

main78180-35310i200108-200308

main78180-35370i199708-200108

main78180-35430i199708-200108

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-35070i199708-200108

main78185-35080i200108-200308

main78185-35090i199711-200108

main78185-35100i200108-200407

78188CCLAMP, ACCELERATOR CONTROL CABLE, NO.5

main78188-35040i200108-200308

main78188-35120i199708-199908

main78188-35130i199908-200108

9020107008

main90201-07008

9161160612

main91611-60612

9161260814

main91612-60814

91621B0612

main91621-B0612

91621J0612

main91621-J0612

9163560630

main91635-60630

13 parts on this diagram · 3 diagrams in section

ACCELERATOR LINK for Toyota HILUX

This section contains 22 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD).
