Toyota HILUX — ACCELERATOR LINK

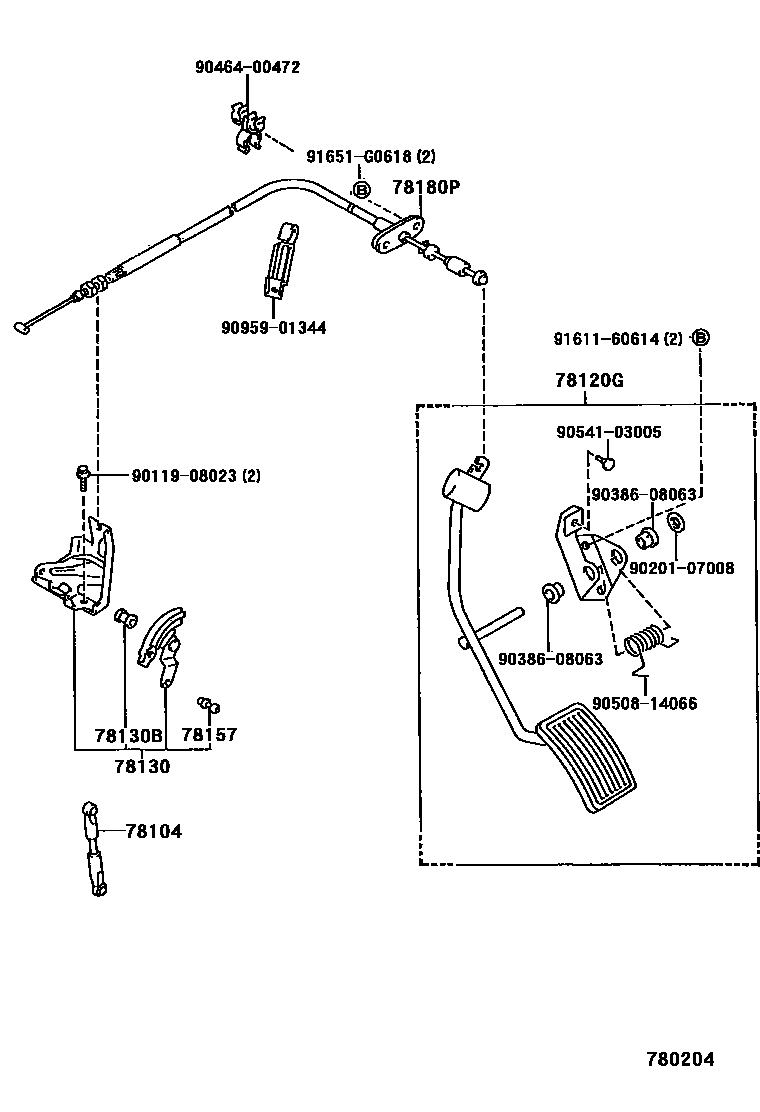

Parts diagram

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140i198809-199305

main78104-89106i198809-199408

78120GROD ASSY, ACCELERATOR PEDAL

main78120-35050i199008-199108

main78120-35071i199308-199511

main78120-89145i198809-199408

main78120-89146i198809

main78120-89149i199108

main78120-89150i198904

main78120-89151i198904-199511

78130BELLCRANK ASSY, ACCELERATOR

main78130-35020i198809-199408

78130BBUSH, ACCELERATOR BELLCRANK

main90386-08003×2i198809-199108

78157BALL, ACCELERATOR JOINT

main78157-10010i198809-199108

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-35020i199108-199112

main78180-35070i199112-199308

main78180-35120i199308-199511

main78180-35150i199403

main78180-35160i199403-199511

main78180-35270i199508

main78180-89150i198809-199403

main78180-89155i198809-199408

main78180-89161i198904

main78180-89162i198904-199308

main78180-89165i199008-199403

main78180-89166i199008-199108

9011908023

main90119-08023

9020107008

main90201-07008

9038608063

main90386-08063

9046400472

main90464-00472

9050814066

main90508-14066

9054103005

main90541-03005

9095901344

main90959-01344

9161160614

main91611-60614

91651G0618

main91651-G0618

15 parts on this diagram · 7 diagrams in section

ACCELERATOR LINK for Toyota HILUX

This section contains 50 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD ASSY, ACCELERATOR PEDAL, BELLCRANK ASSY, ACCELERATOR.
