Toyota HILUX — ACCELERATOR LINK

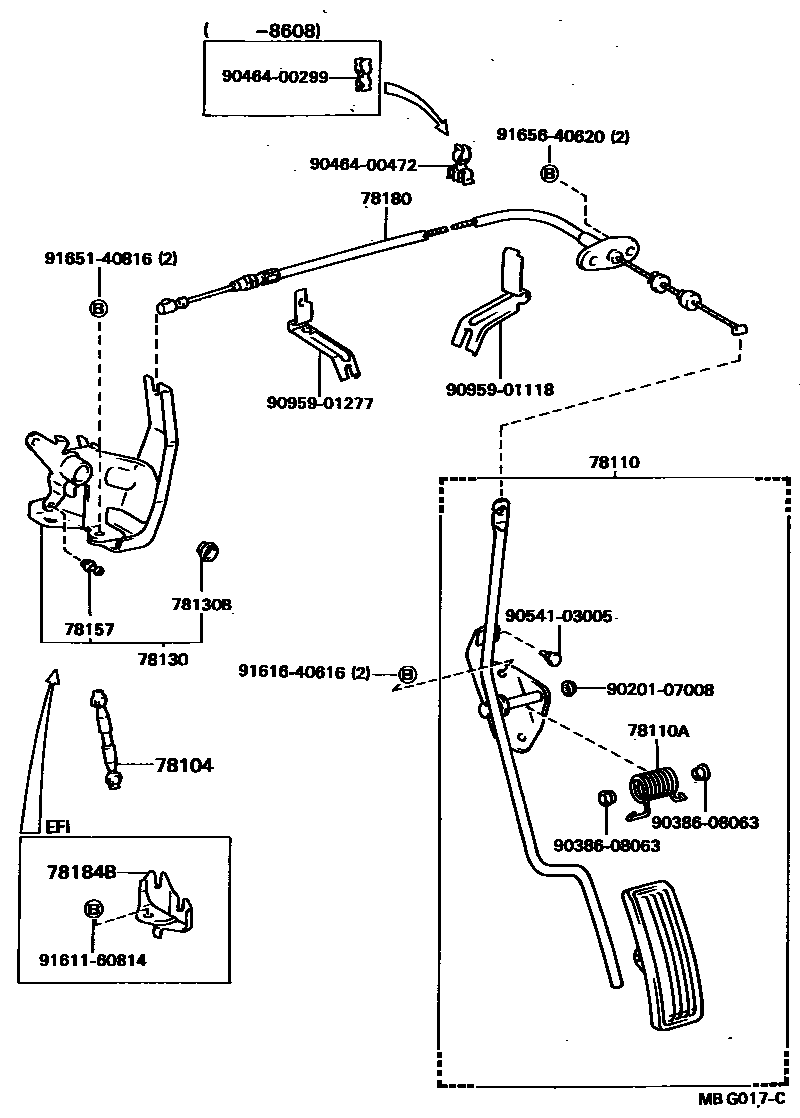

Parts diagram

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-89105i198311-198903

main78104-89106i198311-198903

78110ROD ASSY, ACCELERATOR PEDAL

main78120-89112i198311-198408

main78120-89113i198408-198506

main78120-89119i198311-198408

main78120-89120i198311-198408

main78120-89130i198506-198903

main78120-89132i198506-198903

main78120-89133i198608-198903

main78120-89135i198608-198903

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-14066i198608-198903

main90508-23075i198311-198903

main90508-24006i198608-198903

78130BELLCRANK ASSY, ACCELERATOR

main78130-89109i198311-198903

78130BBUSH, ACCELERATOR BELLCRANK

main90386-08003×2i198311-198903

78157BALL, ACCELERATOR JOINT

main78157-10010i198311-198903

78180WIRE ASSY, ACCELERATOR

main78180-89128i198311-198611

main78180-89129i198311-198903

main78180-89135i198411-198903

main78180-89142i198608-198903

main78180-89143i198611-198711

main78180-89147i198711-198903

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-87005i198608-198903

9020107008

main90201-07008

9038608063

main90386-08063

9046400299

main90464-00299

9046400472

main90464-00472

9054103005

main90541-03005

9095901118

main90959-01118

9095901277

main90959-01277

9161160814

main91611-60814

9161640616

main91616-40616

9165140816

main91651-40816

9165640620

main91656-40620

19 parts on this diagram · 7 diagrams in section

ACCELERATOR LINK for Toyota HILUX

This section contains 46 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: LINK, ACCELERATOR, BUSH (FOR ACCELERATOR LINK), SPRING, TORSION (FOR ACCELERATOR LINK), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD ASSY, ACCELERATOR PEDAL.
