Toyota HILUX — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-0K070×2iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX202006-202201
ANGLE 0
ANGLE -2
ANGLE +2
85301INLET SUB-ASSY, WASHER
main85301-0K190iGUN122..SS;GUN125..LHD..(GD,SS)..L;GUN125,135..RHD..(KEN,SA);GUN125..LHD..(GD,SD,SX)..S;GGN125,GUN126,136,LAN125,TGN120,126,136..GHA,KEN,SA202009-202111
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-0K011iGGN125,GUN112,12#,13#,LAN125,TGN11#,12#,13#..AD,AS,MD,MS,SD,SS,SX,TD,TS,TX202006-202012
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K250iTGN121..SA;GUN125..LHD..SS..S;GUN122,125,135..LHD..SD..(H,L); TGN126..L..SA;GUN122..LHD..SS202009-202109
ALGERIA SPEC (EURO 3 REGULATION),TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
main85315-0K270iGUN122..SS;GUN125..LHD..(GD,SS)..L;GUN125,135..RHD..(KEN,SA);GUN125..LHD..(GD,SD,SX)..S;GGN125,GUN126,136,LAN125,TGN120,126,136..GHA,KEN,SA202009-202111
TYPE A:REFER ILLUST.
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
main85336-30160iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=40
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1445
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=685
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=430
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=40
L=235
827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A640
90119T0144
main90119-T0144

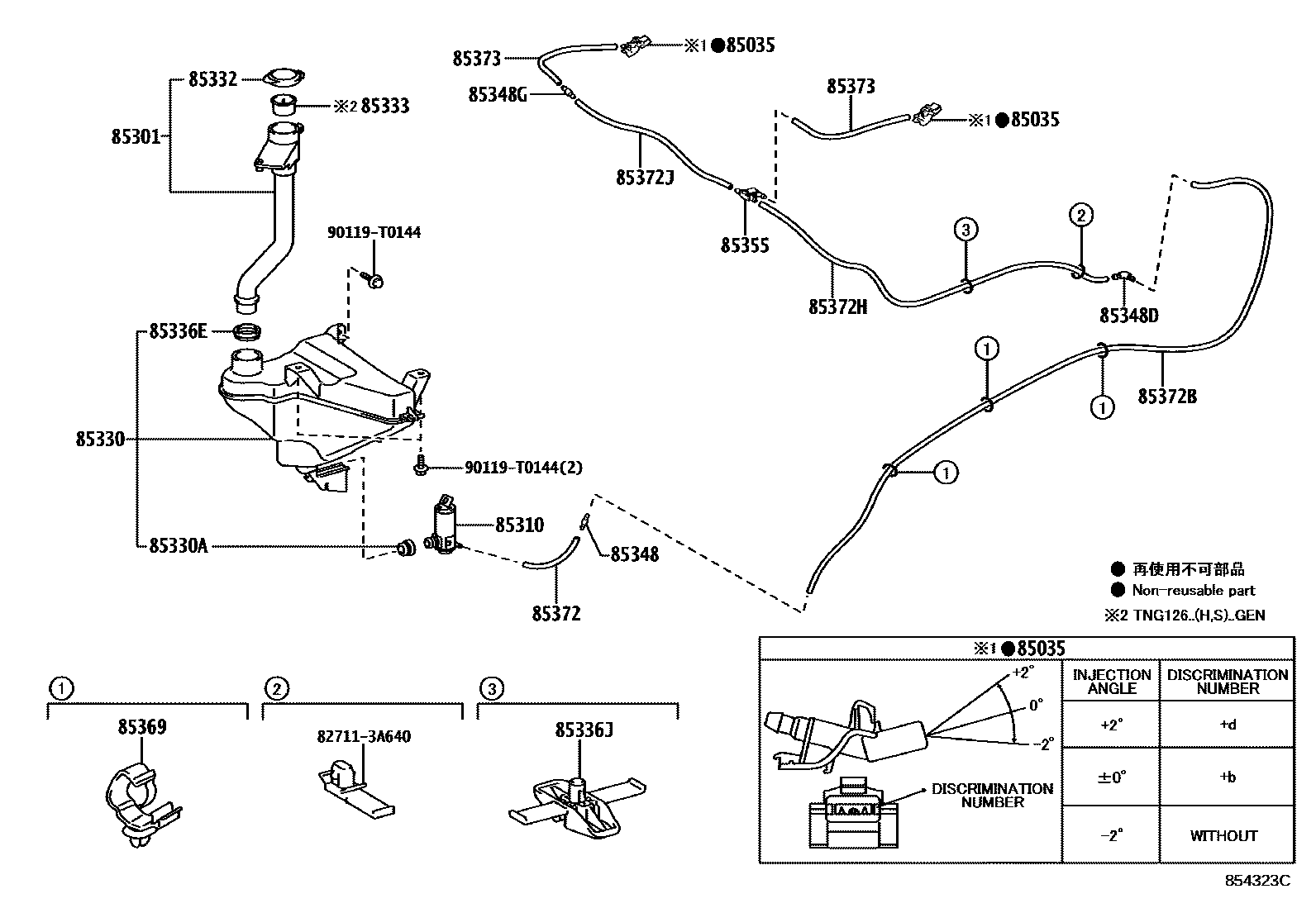

21 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
