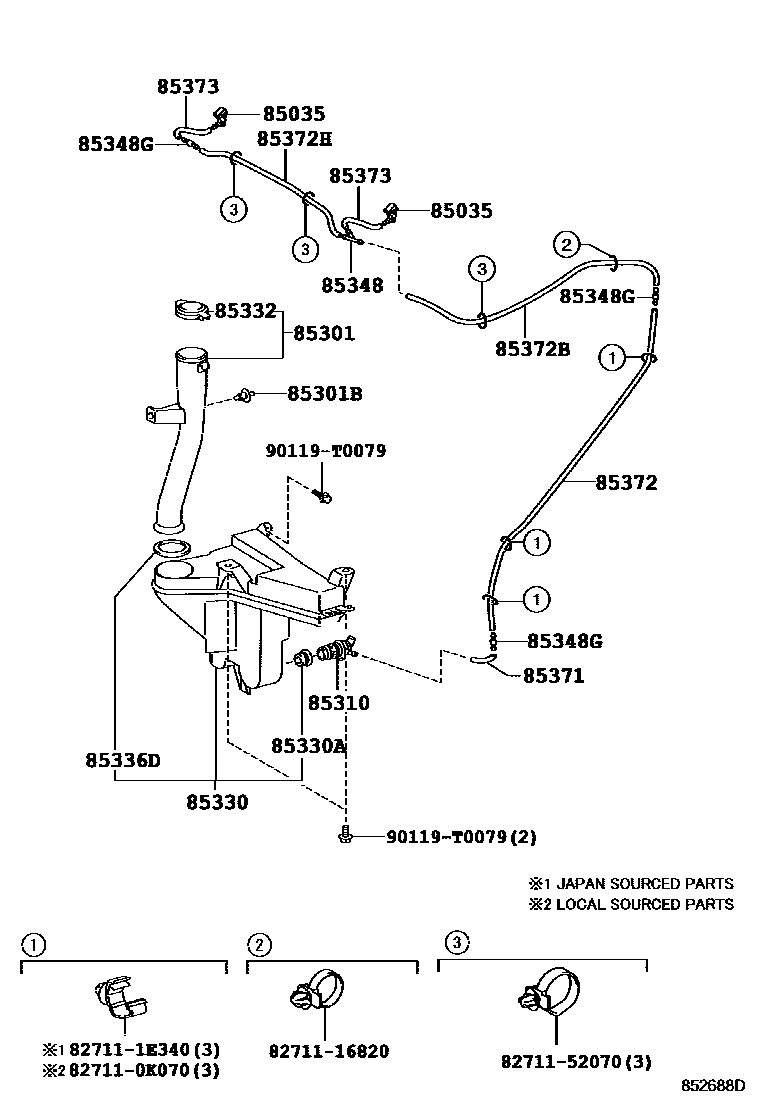

Toyota HILUX — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301INLET SUB-ASSY, WASHER
main85301-0K150iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH201107-201609
CAUCASUS SPEC
85301BCLIP, WASHER
IVORY
BLACK
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
CAUCASUS SPEC
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512
85330ABUSH, WINDSHIELD WASHER JAR
main85336-0K020iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512
85332CAP, WINDSHIELD WASHER JAR
main85316-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH201107-201609
85336DPACKING, WINDSHIELD WASHER JAR
main85336-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,SA,TH201107-201512
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=40
L=1910,CAUCASUS SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=950
L=1450(*H,L=530),CAUCASUS SPEC
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=900
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=530)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=120)
827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K070
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E340
8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52070
90119T0079
main90119-T0079
20 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
