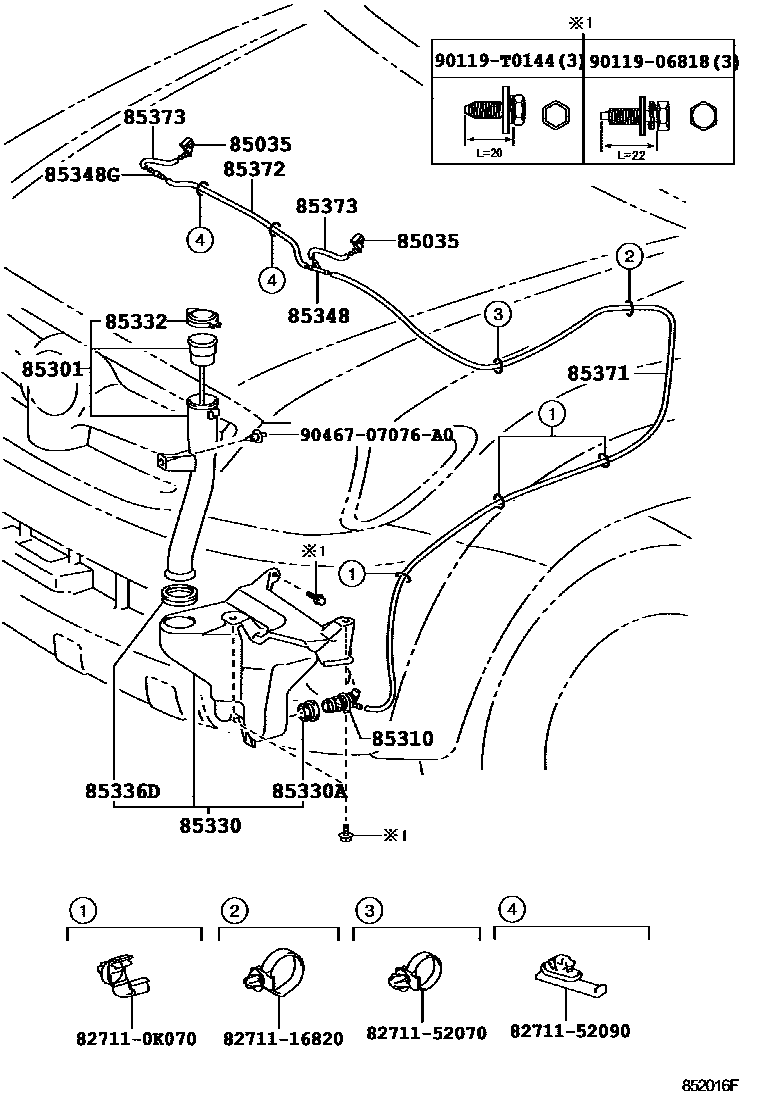

Toyota HILUX — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-0K010×2iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202
85301INLET SUB-ASSY, WASHER
main85301-0K010iGGN25..ARL;GGN25..5FC..SA;TGN26..LHD..(GCC,GEN,SA);GGN15,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,36..ARL,GCC,GEN,IDN,PHL,SA,TH200808-200901
main85301-0K150iGGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);GGN25,KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11,26,36..ARL,GCC,GEN,PHL,SA,TH200902
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-21010iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202
85330JAR ASSY, WINDSHIELD WASHER
main85315-0K010iTGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,SA,TH)200408-200810
85330ABUSH, WINDSHIELD WASHER JAR
main85336-0K020iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107
85332CAP, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
main85336-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250iTGN36..CBU;GGN25..5FC..SA;GGN25..ANCOM,ARL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,2#,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA200808-200903
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122iTGN36..CBU;GGN25..5FC..SA;GGN25..ANCOM,ARL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,2#,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA200808-200903
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90068-33019iLAN15..PKN; TGN36..5F;TGN36..4FC..DLX;TGN16..DCB,SCB,XTR;GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN10,11,15,26..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH200903-201005
L=40
L=1910
main90068-33158iKUN15..XTR..TH;GGN15..DCB..DLX;TGN16..(SMT,XTR)..DLX;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;TGN16..(DCB,SCB)..(ARL,GCC,SA,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;GGN25,35,KUN10,16,LAN15,25,35,TGN11,15..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU201005
L=40
main90099-33803iTGN36..CBU;GGN25..5FC..SA;GGN25..ANCOM,ARL;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,35,KUN1#,2#,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA200808-200903
L=1910
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-59091iGGN15..DCB..DLX;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN2#,3#,TGN26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH;GGN25,35,KUN10,16,LAN15,25,35,TGN11,15..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU200903
L=950
main90099-33080iTGN36..SCB;KUN25..SCB..MA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,25,KUN10,15,36,LAN15,25,35,TGN10,11,15..(DCB,SCB,XTR)..(5F,5FC)200408-200903
L=1450(*H,L=510)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=120)
827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K070
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52070
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
9011906818
main90119-06818
90119T0144
main90119-T0144
9046707076A0
main90467-07076A0
19 parts on this diagram · 9 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 32 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JOINT, WASHER TANK, JAR ASSY, WINDSHIELD WASHER.
