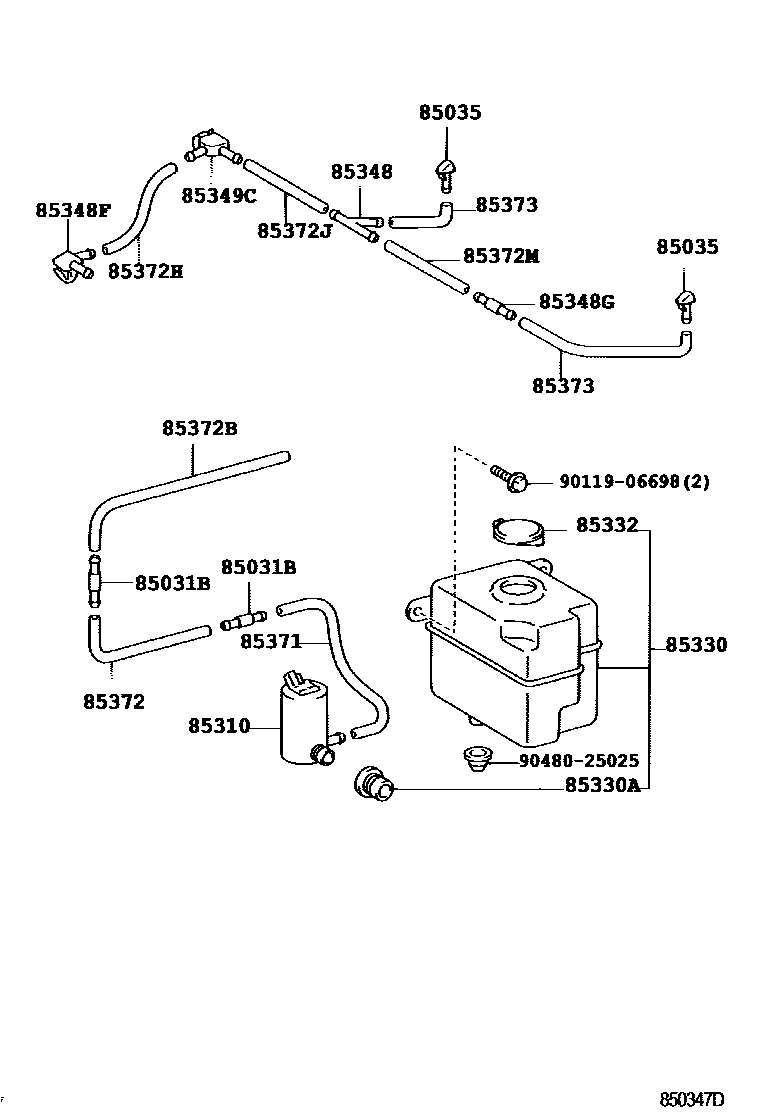

Toyota HILUX — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
main85381-04020×2iLN152..CBU;LN167..DCB..TH;KZN165,LN147,150,167,192,RZN147,149,169..THDCB,THSCB,XTR;LN145,152,155,157,172,RZN154,174..RHD..(SCB,THXTR)..(ARL,TH)199808-200109
main85381-04050×2iKDN145,15#,16#,190,KZN165,LN145,150,155..RHD..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR200109-200212
main85381-35030×2iLN152..XTR..IV3;RZN169..DCB..SA;RZN169..(DCB,SCB)..DLX..(ARL,SA);KZN165,LN167..SCB..DLX..(DEFI,TDE);LN167,RZN169..RHD..(DCB,SCB)..(CBR,DSL);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,145,147,166,172,192,RZN142,147,149,154,174,YN140..RHD..(DCB,SCB,XTR)..DLX..(ARL,GEN,SA)199708
main85381-35040×2iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
TYPE B:REFER TO ILLUSTRATION
TYPE A OR TYPE C:REFER TO ILLUSTRATION
85330JAR ASSY, WINDSHIELD WASHER
main85315-35280iLN152..IV3;KZN165..SR..ARL;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);RZN144,149,154,169..CBR;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN145,16#..RHD..DLX..DSL..(ARL,GEN,SA);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN140,147,172,192,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iKZN190..SR;LN147..IV3;LN145..LHD..IV3;LN147..DCB,THDCB;RZN149..ARL,CO,GCC;LN145,155,RZN148..LHD..(CO,TH);LN145,152,RZN148..(ARL,GEN,SA)..CBU;KDN165,190,KZN165,LN140,141,146,16#,17#,19#,RZN142,144,147,154,16#,174,19#,VZN167,172..ARL,CO,GCC,GEN,MA,SA200108-200511
85332CAP, WINDSHIELD WASHER JAR
main85316-34050iLN152..IV3;RZN169..CBR;KZN165..SR..ARL;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;LN167,RZN149..DLX..(DSL,EFI)..(ARL,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250iLN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,SCB)..(CBR,DSL);LN155,RZN144,149,154..LHD..(CBR,DSL);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85349-89122iLN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,SCB)..(CBR,DSL);LN155,RZN144,149,154..LHD..(CBR,DSL);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
main85377-32220iLN167..DCB..SR..ARL;RZN147,169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200108-200208
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-07001iLN152..IV3;RZN169..CBR;KZN165..SR..ARL;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;LN167,RZN149..DLX..(DSL,EFI)..(ARL,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708
L=1800(*H,L=100)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33299iLN167..DCB..SR;RZN147,169..(DCB,SCB)..ARL;LN167,RZN174..(SCB,XTR)..ARL..CBU200109-200208
L=1000(*H,L=140),TYPE B:REFER TO ILLUSTRATION
L=1800(*H,L=140),TYPE A:REFER TO ILLUSTRATION; L=1800(*H,L=460),TYPE C:REFER TO ILLUSTRATION
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90099-33299iRZN169..CBR;LN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;KZN165..(DCB,SCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN149..(DCB,SCB)..DLX..(DSL,EFI)..(ARL,GEN,SA);KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
L=1000(*H,L=400)
main90446-07001iRZN169..SR..SA;LN152..XTR..IV3;LN167..(DCB,SCB)..DSL;LN167..(DCB,SCB)..DLX..DEFI;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;KZN165,LN172,RZN147,154,174,194..(DCB,SADCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,SA)199708-200203
L=1800(*H,L=300),TYPE B:REFER TO ILLUSTRATION
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90446-07001iRZN169..CBR;LN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;KZN165..(DCB,SCB)..SR..ARL;RZN169..(DCB,SCB)..DLX..(ARL,SA);LN155,RZN144,149,154..LHD..(CBR,DSL);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN149..(DCB,SCB)..DLX..(DSL,EFI)..(ARL,GEN,SA);KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
L=1800(*H,L=250)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001iRZN169..SR..SA;LN152..XTR..IV3;LN167..(DCB,SCB)..DSL;LN167..(DCB,SCB)..DLX..DEFI;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;KZN165,LN172,RZN147,154,174,194..(DCB,SADCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,SA)199708-200203
L=1800(*H,L=410),TYPE B:REFER TO ILLUSTRATION
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
main90446-07001iRZN169..SR..SA;LN152..XTR..IV3;LN167..(DCB,SCB)..DSL;LN167..(DCB,SCB)..DLX..DEFI;LN147,RZN149,169..(DCB,SCB)..DLX..ARL;KZN165,LN172,RZN147,154,174,194..(DCB,SADCB,SCB,XTR)..(DEFI,DSL,EFI,TDE)..(ARL,SA)199708-200203
L=1800(*H,L=650),TYPE B:REFER TO ILLUSTRATION
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33299iLN152..XTR..IV3;RZN169..DCB..SA;LN145..LHD..DLX..TH;RZN169..(DCB,SCB)..DLX..(ARL,SA);LN167,RZN169..(DCB,SCB)..(CBR,DSL);LN155,RZN144,149,154..LHD..(CBR,DSL);RZN149..(DCB,SCB)..DLX..EFI..(ARL,GEN);KZN165,RZN194..(DCB,SADCB,SCB)..SR..(ARL,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN165,LN167,RZN154..RHD..(SCB,XTR)..DLX..(DEFI,EFI,TDE);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..(DCB,SCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
L=1000(*H,L=60)
9011906698
main90119-06698
9048025025
main90480-25025
19 parts on this diagram · 3 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 32 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
