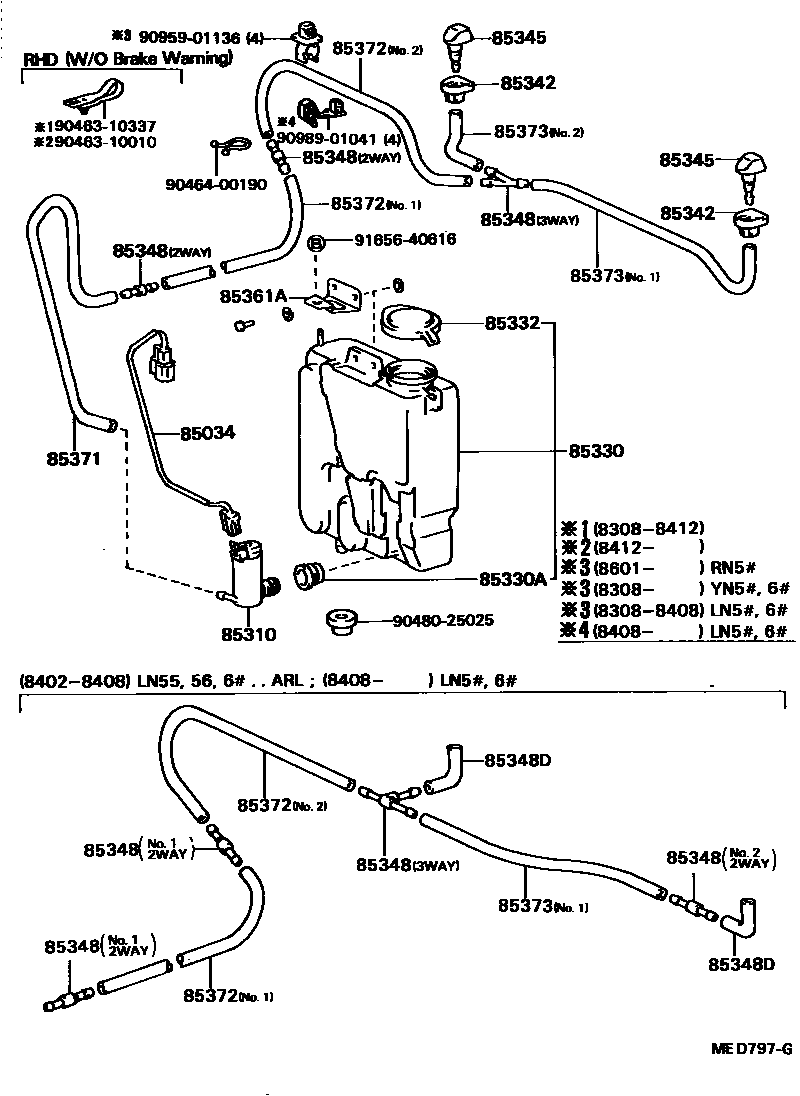

Toyota HILUX — WINDSHIELD WASHER
85034WIRE, WASHER
main85034-89101iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807
85330JAR ASSY, WINDSHIELD WASHER
main85331-89121iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807
85332CAP, WINDSHIELD WASHER JAR
main85332-12320iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807
85342HOLDER, WASHER NOZZLE
85345NOZZLE, WINDSHIELD WASHER
main85035-89110×2iYN58..4F;YN58..SR5,STD;LN51,56,61,65,YN50,51,55,56,57,6#..RHD..(4F,4FC,4H,5F)198608-199807
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY
3 WAY
NO.2,2 WAY
NO.1,2 WAY
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-89121iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=40)
L=2000(*H,L=400)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1400,NO.2
L=1000(*H,L=360),NO.1
L=1800(*H,L=650),NO.2; L=1800(*H,L=700),NO.2
main90446-06013iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807
L=1000(*H,L=800),NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=100),NO.1,NO.2
9046310010
main90463-10010
9046310337
main90463-10337
9046400190
main90464-00190
9048025025
main90480-25025
9095901136
main90959-01136
9098901041
main90989-01041
9165640616
main91656-40616
20 parts on this diagram · 3 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 26 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: WIRE, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
