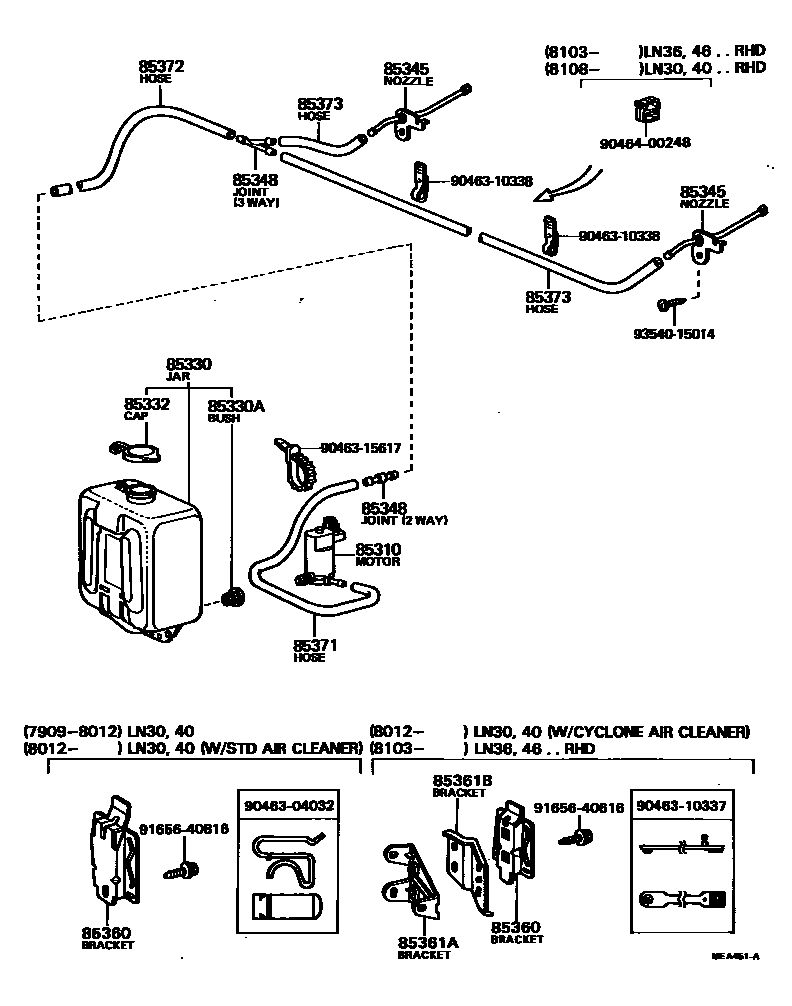

Toyota HILUX — WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100i198108-198307

main85310-89103i198103-198108

main85310-89104i198012-198307

W/CYCLONE AIRCLEANER

main85310-95110i198108-198307

85330JAR ASSY, WINDSHIELD WASHER

main85330-89104i197808-198403

main85330-89110i198103-198108

main85330-95110i198108-198307

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i197808-198403

main90099-32103i198103-198108

85332CAP, WINDSHIELD WASHER JAR

main85332-16010i198108-198307

main85332-20060i198103-198108

main85332-30050i198103-198307

85345NOZZLE, WINDSHIELD WASHER

main85341-89104×2i197808-198403

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-20010i198103-198108

2WAY

main85355-14010i197808-198403

3 WAY

main85355-87201×2i197808-198403

2 WAY

85360BRACKET ASSY, WINDSHIELD WASHER

main16402-89101i198012-198307

W/CYCLONE AIRCLEANER

main53752-89101i197909-198307

W/STD AIRCLEANER

main53752-89107i198103-198307

85361ABRACKET, WINDSHIELD WASHER, NO.1

main53261-89102i198103-198307

main53752-89106i198103-198307

85361BBRACKET, WINDSHIELD WASHER, NO.2

main53262-89102i198307-198403

W/CYCLONE AIRCLEANER

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33346i198103-198108

*H,L=200

main90446-06013i198012-198108

L=1000(*H,L=410); L=1000(*H,L=410),W/STD AIR CLEANER

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-06013i198103-198108

*H,L=500

main90446-06013i198108-198307

L=1450(*H,L=700); L=600(*H,L=500),W/CYCLONE AIR CLEANER; L=600(*H,L=500),W/HEAD LAMP CLEANER

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013i197808-198403

L=1100(*H,L=100)

9046304032

main90463-04032

9046310337

main90463-10337

9046310338

main90463-10338

9046315617

main90463-15617

9046400248

main90464-00248

9165640616

main91656-40616

9165640816

main91656-40816

9354015014

main93540-15014

20 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR, FILTER, WINDSHIELD WASHER JAR.
