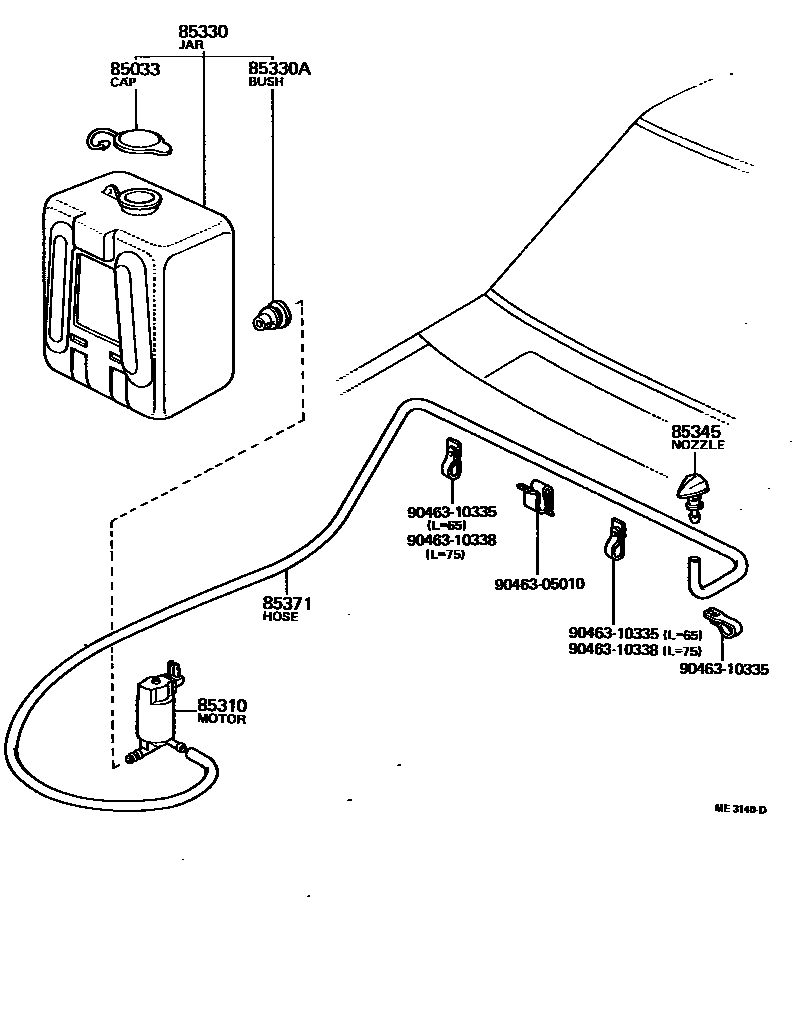

Toyota HILUX — WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-20070i197205-197702

main85332-30050i197702-197807

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020i197205-197702

main85310-20100i197702-197807

85330JAR ASSY, WINDSHIELD WASHER

main85330-89101i197205-197702

main85330-89104i197702-197807

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32057i197205-197702

main90099-32089i197702-197807

85345NOZZLE, WINDSHIELD WASHER

main85035-14010i197205-197807

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33283i197205-197807

9046305010

main90463-05010

9046310335

main90463-10335

9046310338

main90463-10338

9 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 9 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
