Toyota HILUX — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1STEERING 0012 1SEAT 0013 1DOOR,ROOF & FLOOR

83181GSENSOR, SPEEDOMETER

main83181-12020iKUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,200408-200812

main83181-35040iKUN10,15,LAN15,35,TGN10,15..(DLX,SR)..(DCR,DEFI,HTWC)200808-200906

main83181-35041iKUN15,LAN15..PKN200908-201201

main83181-35070iTGN16..XTR..TH;GGN15,KUN16,TGN36..(4FC,5FC)..(ANCOM,ARL,PHL,TH)200408-200812

83181HRING, O (FOR SPEEDOMETER SENSOR)

main90301-18004iTGN16..XTR..TH;GGN15,KUN16,TGN36..(4FC,5FC)..(ANCOM,ARL,PHL,TH)200408-200812

main90301-18018iKUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)200808-201108

main96711-24030iKUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,200408-200812

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iKUN15..PKN201010-201201

DENSO

main83530-28020iTGN36..SCB;TGN16..XTR..TH;TGN26,36..DCB..DLX..LA;GGN15,25,TGN1#..5F,5FC;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA)200501-200812

main83530-60010iKUN15..PKN201010-201201

YAZAKI

main83530-60020iTGN36..CBU;GGN25..5FC..SA;GGN15,35,TGN1#;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA)200808-201204

YAZAKI

main83530-60030iLAN15,25,35..SA200810-201108

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKUN15..PHL..CBU;KUN10,LAN15,TGN10,15..(GCC,GEN,IDN,PKN)..CBU;KUN15..(DCB,SCB,XTR)..(DLX,STD)..(GCC,GEN,PKN,TH)200408-201202

main84210-0K010iGGN15,25..5F200901-200908

TYPE C:REFER 33-01

main84210-12040iKUN16..5F..TH;KUN15,2#,36..5F..SR..TH200608-200808

(J)

sub84210-52050

main84210-71010iTGN26..ANCOM..CBU;TGN26..LHD..5F..(GCC,GEN,LA,SA)200808-201204

main84210-71020iTGN36..SCB;TGN11,16..5F;TGN36..DCB..SA;TGN36..DCB..DLX..LA200502-200812

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35080supersedes 84222-35080iKUN25..SA;TGN26..RHD;TGN26..4FC..GCC;KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);GGN25,KUN26..(4FC,5FC)..(ANCOM,ARL,GEN,LA,PHL,TH);GGN25,KUN25,TGN26..(4FC,5F)..SR..(ANC200408-200812

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35090iGGN25..5FC..SA200408-200808

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35110iGGN25..5FC..SA200408-200808

84540SWITCH ASSY, NEUTRAL START

main84540-35050iTGN26..4FC..(GCC,TH);TGN16,36..(DCB,XTR)..(ANCOM,PHL,TH)200501-200812

main84540-71010iGGN15,25,35,KUN16,2#,36..4FC,5FC200808-201204

89491SENSOR, ENGINE OIL LEVEL

main89491-26081iKUN15,2#,3#..SA200504-200810

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

827150K410BRACKET,WIRING HARNESS CLAMP

main82715-0K410

9043018008

main90430-18008

9155180612

main91551-80612

9165140825

main91651-40825

9165140830

main91651-40830

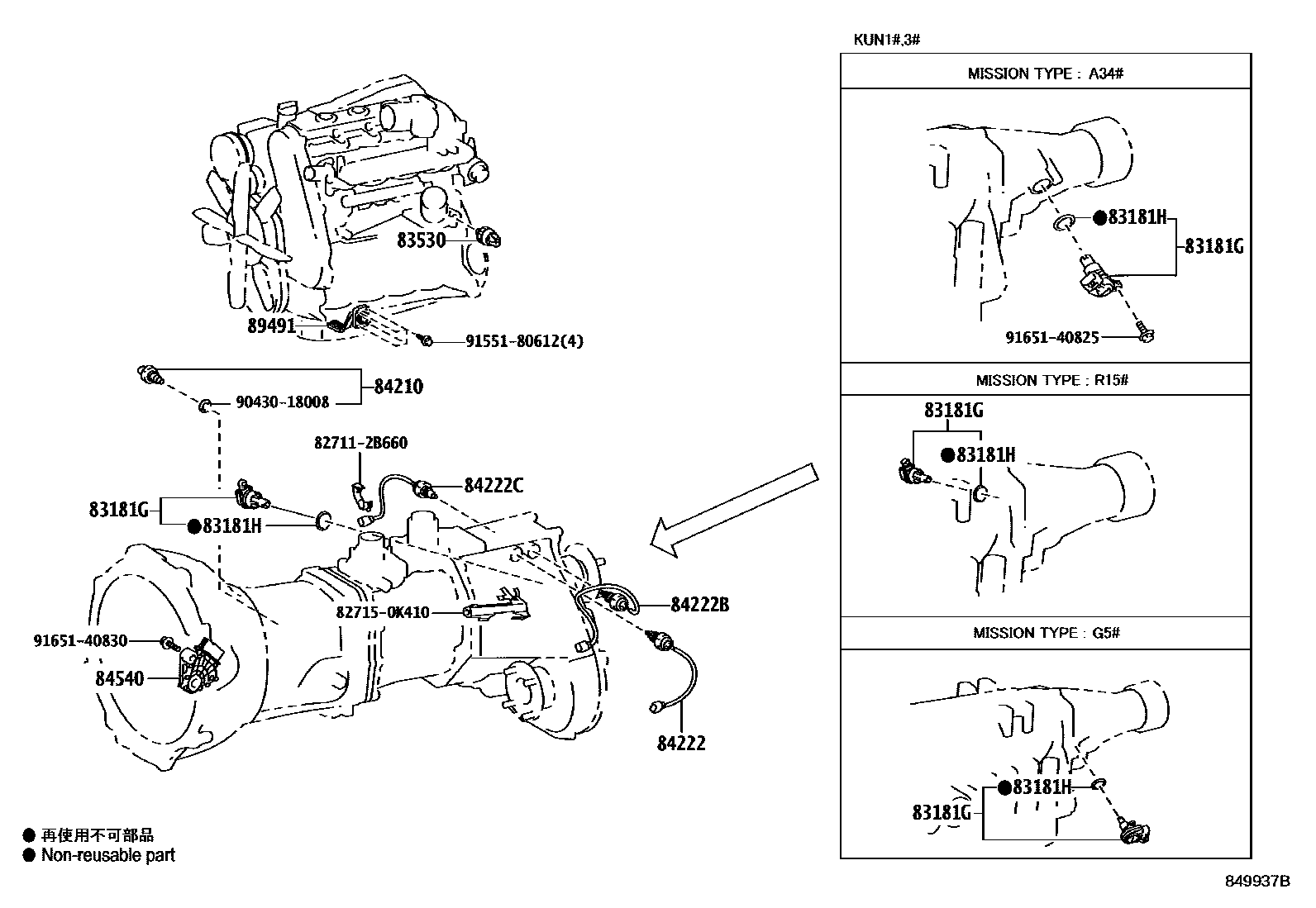

15 parts on this diagram · 13 diagrams in section
