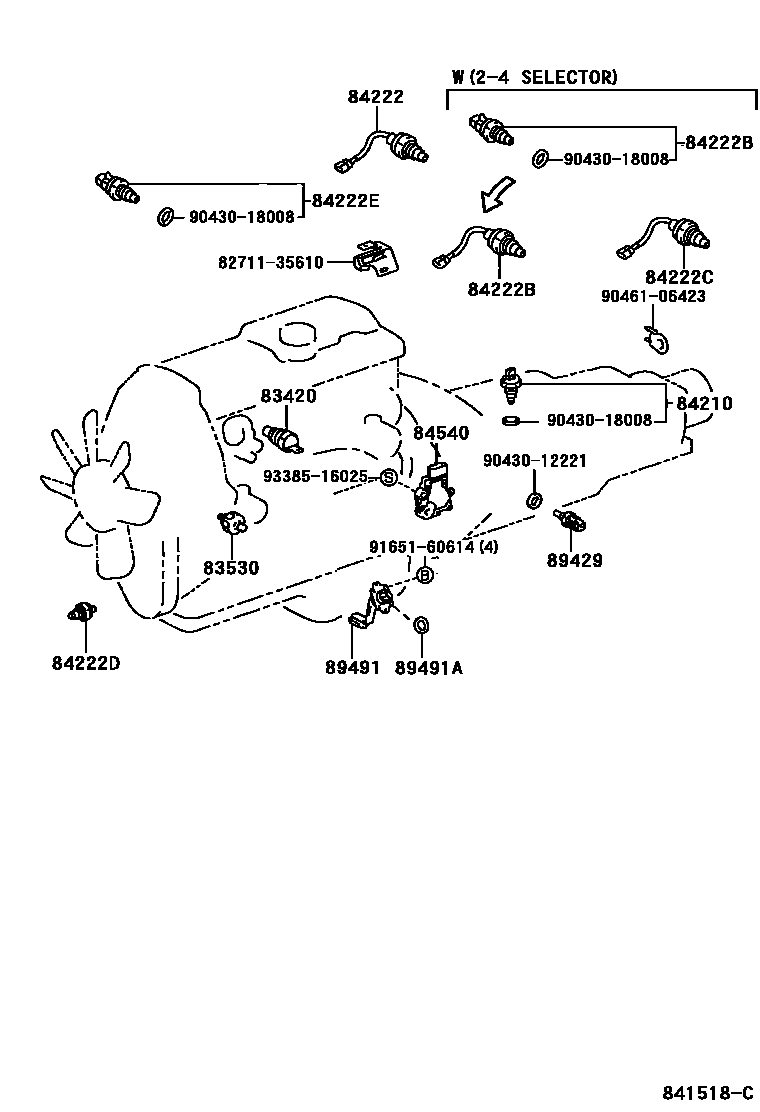

Toyota HILUX — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1INSTRUMENT PANEL SWITCHES 0010 1INSTRUMENT PANEL SWITCHES 0011 1COWL RELAY 0012 1COWL RELAY 0013 1DOOR & FLOOR SWITCHES 0014 1COMBINATION SWITCH 0015 1COMBINATION SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN167,172200208-200502

main83420-16040iLN166..MA200108-200502

main83420-20040iRZN174,19#;RZN169..DCB..SA;RZN144,149,154,169..CBR;RZN154,169..DLX..(ARL,SA);RZN148,149,168..DLX..EFI..(ARL,GEN)199708

main83420-26010iKDN165,190..MA200408-200502

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iYN140199808-200010

main83530-28020iRZN149,154,VZN167,172..ARL200108-200502

main83530-30060iLN14#,16#,17#,191199708-199803

main83530-60010iKZN165,190..SR..SA200109-200504

main83530-60020iRZN14#,154,16#,174,193199708-199803

main83530-60030iLN147,167..IV3;LN166,172..ARL,MA;LN167..(DCB,THDCB)..DLX..ARL;LN147,152..(DCB,THDCB,XTR)..ARL..CBU200108-200502

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iRZN147..THSCB;LN167..THDCB..SR;LN167..THSCB..CBU200109-200208

main84210-12040iLN147,167..IV3;KZN165..SCB..IV3;RZN149..MTM..ARL;LN167..(DCB,THDCB)..DLX..ARL;KZN165,LN152..(DCB,SCB,THXTR,XTR)..ARL..CBU;LN147,172,RZN154..(DCB,THDCB,THXTR,XTR)..M200108-200502

THAILAND SPEC

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35050iLN166..MA200108-200503

main84222-35090iKDN166..ATM200208-200407

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-12010iKZN165..THDCB..SR200109-200208

W(2-4 SELECTOR)

main84222-35060iLN166,RZN16#..CO,GCC200108

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35080iKZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..DLX..(DEFI,EFI)..ARL;LN167,RZN169..(CBR,DSL)..(ARL,GCC,SA,TH);KZN165,LN166,172,RZN174.199708-200203

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35070iRZN169..SA;LN167..DEFI..TH;KZN165..SR..ARL;LN167..(DCB,THDCB,XTR)..DSL;KZN165,LN172,RZN174..(THXTR,XTR)..(CBU,IV1);LN167,RZN169..(DCB,THDCB)..DLX..(DEFI,EFI)..ARL199708-200110

84222ESWITCH, DIFFERENTIAL LOCK INDICATOR

main84222-12010iLN167..SR..SA;KZN165,RZN169..SA199807-200203

84540SWITCH ASSY, NEUTRAL START

main84540-30270iKDN190..MA200109-200502

main84540-30290iLN152..ATM199806-200109

TOKAIRIKA

main84540-30300iLN152..ATM199806-200109

MATSUSHITA

main84540-51010iKDN166,VZN167,172..ATM200208-200502

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN145,147,15#,167,172,192..ARL,TH199708-199908

89491SENSOR, ENGINE OIL LEVEL

main89491-26111iLN140,145..SA200203-200502

subS8346-01580

main89491-35011iLN167,192..SA199807-200203

main89491-35040iKZN165,190..SR..SA200109-200504

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iKZN165..(DCB,SCB)..(ARL,SA);KZN190,LN140,145,167,192..SA;KZN165..(THDCB,THSCB,XTR)..SR199908-200203

8271135610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35610

9043012221

main90430-12221

9043018008

main90430-18008

9046106423

main90461-06423

9165160614

main91651-60614

9338516025

main93385-16025

18 parts on this diagram · 15 diagrams in section
