Toyota HILUX — STARTER
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ#,2RZFE..RZN142,147,168,193200108-200306
12V 1.0KW
12V 2.0KW
12V 2.7KW
12V 2.2KW
12V 2.0KW
12V 2.2KW
12V 2.0KW
main28011-76070i3RZFE..RZN169..DLX;3RZFE..RZN149..SR..GCC;2RZFE..RZN168..DCB..GEN;3RZFE..RZN149..DLX..(ARL,GCC);3RZFE..RZN169..DCB..SR..(GEN,SA);2RZFE,3RZFE..RZN144,148,154,174,194..(ARL,GCC,GEN,SA)..CBU200108-200508
12V 1.2KW,1.4KW
28100STARTER ASSY
12V 2.0KW
12V 2.7KW
12V 2.2KW
12V 2.0KW
12V 1.4KW
12V 2.2KW
12V 1.0KW
12V 1.0KW
12V 1.4KW
12V 2.0KW
main28100-75130i3RZFE..RZN169..DCB..SA;3RZFE..RZN169..DLX..(ARL,SA);3RZFE..RZN149..DLX..(ARL,GEN);3RZFE..RZN154,174,194..RHD..(DCB,SCB,THXTR,XTR)200009-200206
12V 1.2KW
28110HOUSING ASSY, STARTER DRIVE
12V 2.0KW
12V 2.2KW
12V 1.0KW
main28110-75070i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW
12V 1.2KW,1.4KW
12V 2.0KW
12V 2.2KW
28120YOKE ASSY, STARTER
12V 1.2KW
12V 1.0KW
main28120-54380i3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA199812-200008
12V 2.0KW
main28120-64040i5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..(DCB,SCB)..(ARL,SA);1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE,5L#..KZN190,LN147,167,172,192..DLX199708-200203
12V 2.2KW
12V 1.4KW
12V 2.7KW
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-15020i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW
12V 2.0KW
main28130-64170i2RZFE..RZN148..DLX..CBU;2RZFE..RZN168..DCB..DLX;3RZF..RZN144,149,154,169200009-200206
12V 1.4KW
12V 1.0KW
12V 2.0KW
28140HOLDER ASSY, STARTER BRUSH
12V 1.0KW
12V 1.4KW
12V 2.0KW
main28140-64040i1KZTE..KZN190..SR;1K#,5LE..KDN151,166,KZN165,LN147,152,167,172,192..MTM200109-200504
12V 2.2KW
12V 1.2KW
12V 1.4KW
12V 2.7KW
28143SPRING, STARTER BRUSH
12V 2.0KW
main90099-17112×4i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW,1.4KW
12V 2.2KW
28150SWITCH ASSY, MAGNET STARTER
12V 2.0KW
12V 2.7KW
12V 2.2KW
12V 2.0KW
12V 1.4KW
main28150-67050i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203
12V 2.2KW
12V 1.0KW
main28150-75070i2RZFE..RZN148..CO;2RZFE..RZN148..GEN..CBU;1RZ#,2RZFE..RZN142,147,168,193200108-200306
12V 1.0KW
12V 2.0KW
main28150-75130i2RZFE..RZN148,168..CO;2RZFE..RZN168..SCB..CBU;1RZ,2RZFE..RZN142,147,193200306-200511
12V 1.2KW
28159BCOVER, MAGNET SWITCH
main28159-10040i1KZTE,5LE..KZN165,190,LN167,192..SA; 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW; 12V 2.2KW
12V 2.0KW
main28159-55050i2RZFE..RZN148..DLX..CBU;2RZFE..RZN168..DCB..DLX; 2RZFE..RZN168..DCB..DLX;2RZFE,3RZFE..RZN148,149..DLX..GEN..CBU200203-200206
12V 1.2KW,1.4KW
28160ARMATURE ASSY, STARTER
12V 1.0KW
12V 2.0KW
12V 2.7KW
main28160-64041i5L#..LN152..IV3;5L..LN167..ARL,SA;1KZTE..KZN165..(DCB,SCB)..(ARL,SA);1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE,5L#..KZN190,LN147,167,172,192..DLX199708-200203
12V 2.2KW
12V 1.4KW
12V 2.0KW
12V 1.2KW
28160ABEARING, STARTER ARMATURE
main28253-45020i1RZ,2RZFE..RZN142,193;1RZ..RZN147..DCB..GEN;1RZ..RZN147..LHD..SCB..GEN;2RZFE..RZN148,168..SR..GEN;1RZ,2RZFE..RZN147,148,168..CO,GCC,SA; 2RZFE..RZN148,168..DLX..GEN..CBU;1RZ#..RZN147..RHD..(SCB,THSCB)..(ARL,GEN)200108-200306
12V 1.0KW
12V 2.2KW
12V 1.2KW,1.4KW
main90099-10208i3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH199708-199812
12V 2.0KW
28160BBEARING, STARTER ARMATURE, NO.2
12V 1.0KW
12V 2.2KW
12V 2.0KW
28165SPRING, STARTER MAGNET SWITCH RETURN
12V 1.0KW
12V 1.4KW,2.0KW; 12V 2.0KW
28169CLAMP, STARTER MOTOR LEAD WIRE
main28169-10040i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN; 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU200203-200306
12V 1.0KW
12V 2.2KW
main28169-54380i3RZF..RZN169..LHD..GEN;5L,3RZF..LN167,192,RZN149..SR..(GEN,TH);2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH199708-199812
12V 2.0KW
main28169-55050i3RZFE..RZN169..SA;3RZFE..RZN149,169..DLX..ARL;3RZFE..RZN154,174,194..RHD..(SCB,THXTR,XTR)200009-200110
12V 1.2KW
28175AGASKET, MAGNET SWITCH COVER
main28175-10040i1RZ..RZN142,147..RHD..SCB;1RZE,2RZFE..RZN147,148,168..DLX; 2RZFE..RZN148..DLX..CBU;1RZ..RZN147..RHD..SCB..GEN;1RZE,2RZFE..RZN147,168..DLX200108-200110
12V 1.0KW
main28175-54380i3RZF..RZN149..SR..GEN;3RZF..RZN169..LHD..GEN;2L,3L..LN140,141,145,146,166,171,191..GCC,GEN,SA199812-200008
12V 2.0KW
main28175-55050i1RZ..RZN147..LHD..GEN;3RZF..RZN144,149,154,169; 3RZFE..RZN149,154,169,174,194199708-200009
12V 1.2KW; 12V 1.4KW
28226STARTER KIT, BATTERY TERMINAL
12V 1.0KW
12V 1.2KW
main28226-54330i1KZTE..KZN190..SR;1KZTE..KZN165..CBU,IV1;1KZTE..KZN165..(SCB,THSCB)..IV3200109-200504
main28226-54340i5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH199803-199812
12V 2.0KW
12V 2.0KW
12V 1.2KW,1.4KW
12V 1.0KW
12V 2.2KW
28226ASTARTER KIT, MOTOR TERMINAL
main28226-72010i1KZTE..KZN165,190..SA; 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2L,3L,5LE..LN140,145,16#,192..RHD..(GEN,SA); 2L,3L..LN145,166..RHD..GEN..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW,2.0KW; 12V 2.0KW,2.2KW; 12V 2.2KW
main28226-74070i1RZ..RZN147..LHD..GEN;3RZF..RZN144,149,154,169; 3RZFE..RZN149,154,169,174,194199708-200009
12V 1.2KW; 12V 1.4KW
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040×5i2L,3L,5L,1RZ#,2RZFE,3RZ#,2Y..LN14#,15#,16#,17#,19#,RZN14#,154,16#,174,19#,YN140199708-199812
28229RETAINER, STARTER IDLE GEAR
main28229-26040i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN; 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU200203-200306
12V 1.0KW
main28229-74070i3RZFE..RZN149,154,169,174,194; 5L..LN167,192..TH;2L,3L,5L..LN140,141,145,146,15#,166,171,191..GCC,GEN,SA,TH199708-199812
12V 1.2KW; 12V 2.0KW
28235PLUNGER, MAGNET SWITCH
main28235-35080i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN; 1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..GEN..CBU200203-200306
12V 1.0KW
12V 2.0KW
main28235-55050i2RZFE..RZN148..DLX..CBU;2RZFE..RZN168..DCB..DLX; 2RZFE..RZN168..DCB..DLX;2RZFE,3RZFE..RZN148,149..DLX..GEN..CBU200203-200206
12V 1.2KW,1.4KW
28252GEAR, STARTER IDLE
main28254-45020i1RZ..RZN147..RHD..SCB..GEN;2RZFE..RZN148,168..DLX..CBU; 2RZFE..RZN148,168..DLX;1RZ..RZN142,147..RHD..SCB200110-200203
12V 1.0KW
12V 2.2KW
12V 2.0KW
main28254-74070i2RZFE..RZN148..DLX..CBU;2RZFE..RZN168..DCB..DLX; 2RZFE..RZN168..DCB..DLX;2RZFE,3RZFE..RZN148,149..DLX..GEN..CBU200203-200206
12V 1.2KW,1.4KW
9009900902
main90099-00902
9009900907
main90099-00907
9009904473
main90099-04473
9009904562
main90099-04562
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908204
main90179-08204
9161261055
main91612-61055

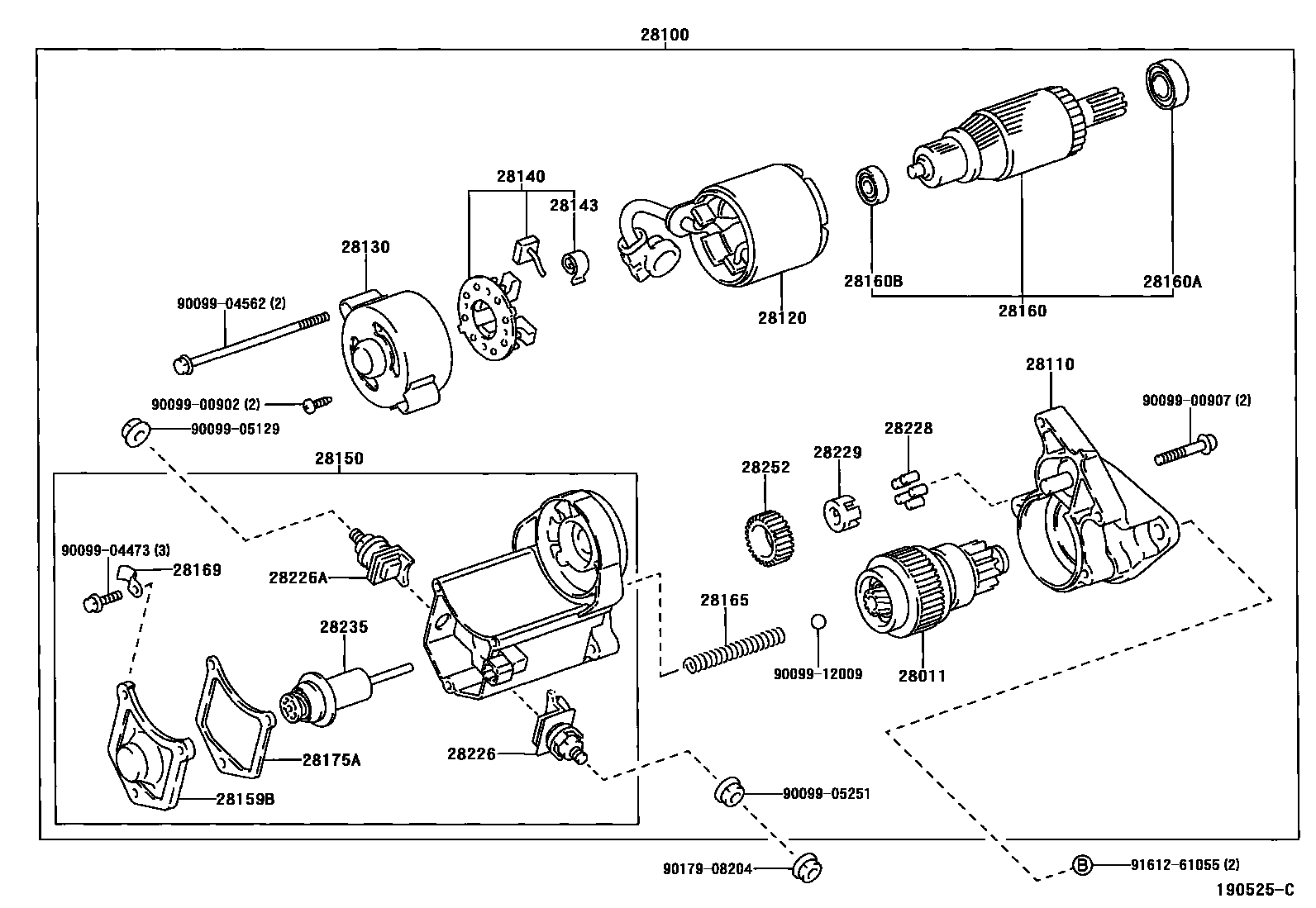

30 parts on this diagram · 13 diagrams in section
STARTER for Toyota HILUX
This section contains 62 genuine Toyota parts for the STARTER system of the Toyota HILUX. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, RING, O(FOR STARTER YOKE).
