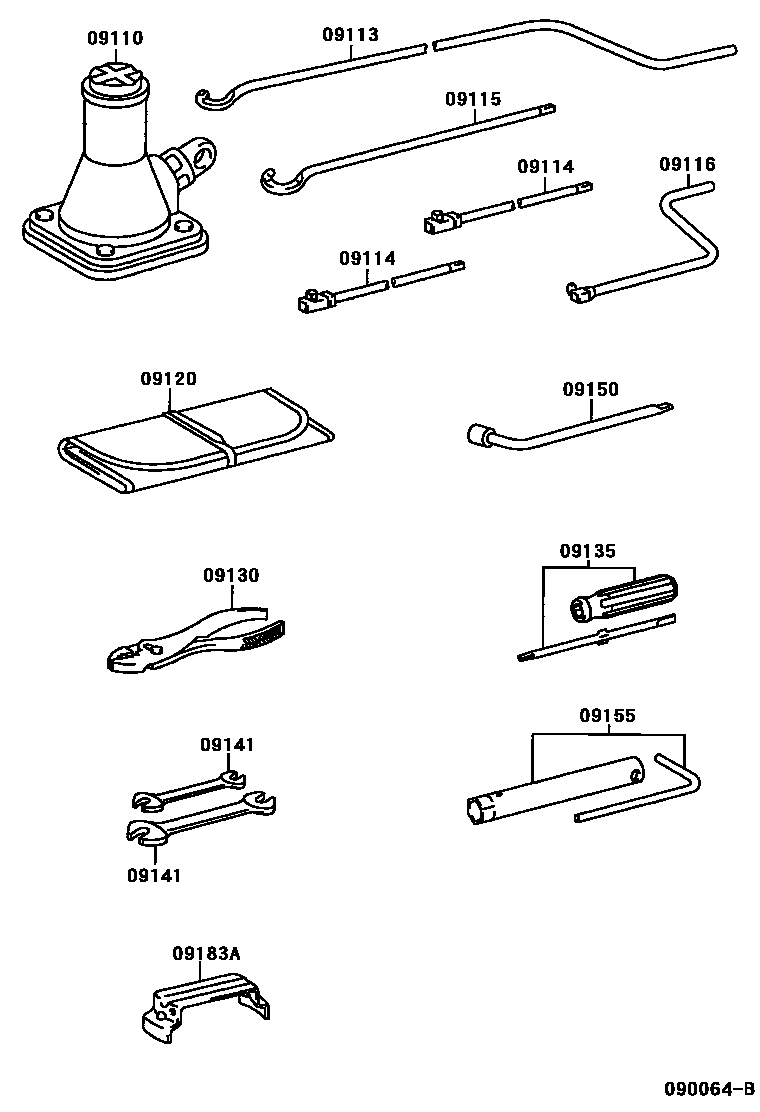

Toyota HILUX — STANDARD TOOL
09110JACK ASSY
main09111-35160iLN152..IV3;RZN154..ARL;RZN144,149,154..CBR;RZN149..DLX..EFI..(ARL,GEN);LN14#,RZN142,147,148,YN140..DLX..(ARL,GCC,GEN,SA)199708-200603
main09111-35170iRZN169..DCB..SA;KZN165..SCB..DLX;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN166,17#,19#,RZN168,174,193..DLX..(ARL,GCC,GEN,SA)199708-200603
09113HANDLE, JACK
main09113-04040iLN145,155,157,167..(DCB,SCB)..TH;KZN165,LN147,167,RZN147,149,169..THDCB,THSCB200104-200109
(L)
09114EXTENSION SUB-ASSY, JACK HANDLE
09115ROD SUB-ASSY, JACK HANDLE
09116LEVER, JACK HANDLE
09120BAG, TOOL
09130PLIERS
main99913-11500iLN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708
09135DRIVER, SCREW
09141SPANNER
8 X 10
main99914-11214iLN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165,RZN194..SR..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,RZN154..(SCB,THXTR,XTR)..DLX..ARL;KZN165,LN167..DCB..DLX..(DEFI,TDE)..ARL..CBU;LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708
12 X 14
09150WRENCH, HUB NUT BOX
09155WRENCH, SPARK PLUG
09183AREPLACER, WHEEL CAP
12 parts on this diagram · 1 diagram in section
STANDARD TOOL for Toyota HILUX
This section contains 12 genuine Toyota parts for the STANDARD TOOL system of the Toyota HILUX. Key components include: JACK ASSY, HANDLE, JACK, EXTENSION SUB-ASSY, JACK HANDLE, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE.
