Toyota HILUX — SIDE WINDOW

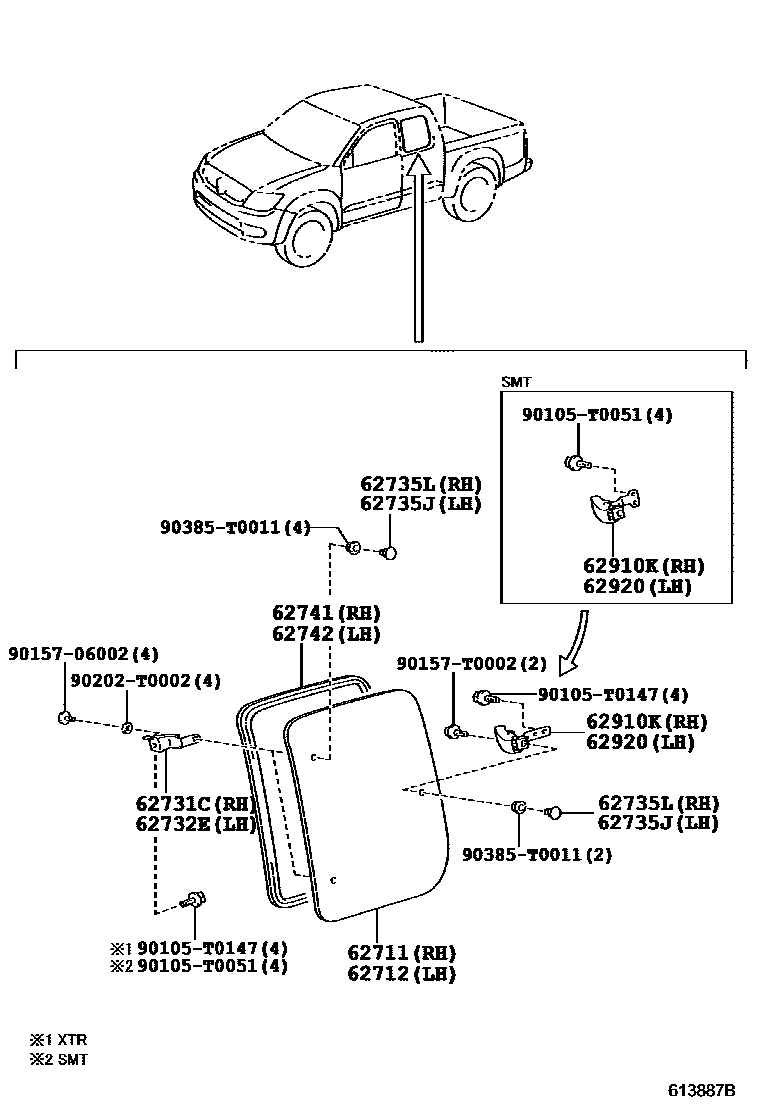

Parts diagram
62711GLASS, QUARTER WINDOW, RH
main62711-0K010i201107-201512
*TT,T=3.5,GREEN
main62711-0K210i201107-201504
*TT,T=3.5,GREEN
62712GLASS, QUARTER WINDOW, LH
main62712-0K010i201107-201512
*TT,T=3.5,GREEN
main62712-0K130i201107-201504
*TT,T=3.5,GREEN
62731CHINGE, QUARTER WINDOW, RH
main62731-0K010i201107-201512
UPPER
main62731-0K020i201107-201504
UPPER
main62731-0K030i201107-201504
LOWER
main62731-0K040i201107-201512
LOWER
62732EHINGE, QUARTER WINDOW, LH
main62732-0K010i201107-201512
UPPER
main62732-0K020i201107-201504
UPPER
main62732-0K030i201107-201504
LOWER
main62732-0K040i201107-201512
LOWER
62735JRETAINER, QUARTER WINDOW HINGE, LH
main62735-35010×3i201107-201512
62735LRETAINER, QUARTER WINDOW HINGE, RH
main62735-35010×3i201107-201512
62741WEATHERSTRIP, QUARTER WINDOW, RH
main62741-0K010i201107-201512
main62741-0K020i201107-201504
62742WEATHERSTRIP, QUARTER WINDOW, LH
main62742-0K010i201107-201512
main62742-0K020i201107-201504
62910KLOCK ASSY, QUARTER WINDOW, RH
main62910-0K020-B1i201107-201203
MD.GRAY,TRIM1#
main62910-0K020-B2i201203-201308
DK.GRAY,TRIM11
main62910-0K020-C0i201308-201504
BLACK,TRIM2#
main62910-0K020-E0i201107-201504
SAND BEIGE,TRIM4#
main62910-35021-B3i201107-201512
MD.GRAY,TRIM1#
main62910-35021-C0i201308-201504
BLACK,TRIM2#
62920LOCK ASSY, QUARTER WINDOW, LH
main62910-35021-B3i201107-201512
MD.GRAY,TRIM1#
main62910-35021-C0i201308-201504
BLACK,TRIM2#
main62920-0K010-B1i201107-201203
MD.GRAY,TRIM1#
main62920-0K010-B2i201203-201308
DK.GRAY,TRIM11
main62920-0K010-C0i201308-201504
BLACK,TRIM2#
main62920-0K010-E0i201107-201504
SAND BEIGE,TRIM4#
90105T0051
main90105-T0051
90105T0147
main90105-T0147
9015706002
main90157-06002
90157T0002
main90157-T0002
90202T0002
main90202-T0002
90385T0011
main90385-T0011

16 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota HILUX

This section contains 16 genuine Toyota parts for the SIDE WINDOW system of the Toyota HILUX. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, HINGE, QUARTER WINDOW, RH, HINGE, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW HINGE, LH.
