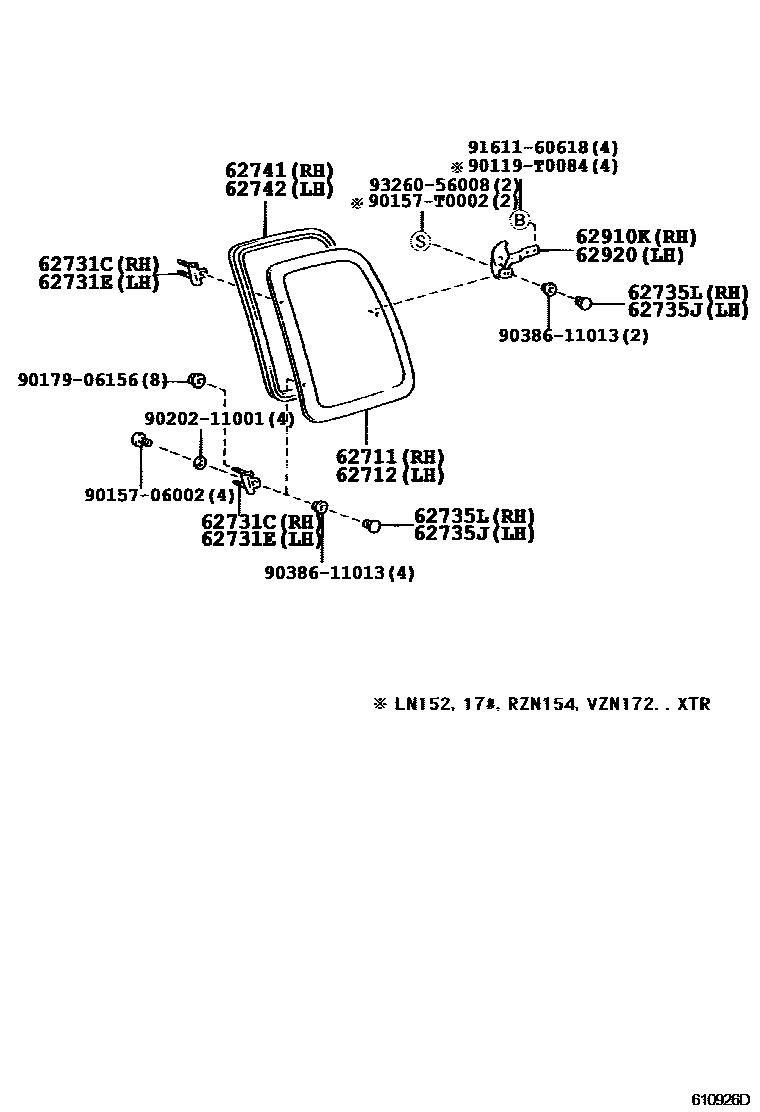

Toyota HILUX — SIDE WINDOW
62711GLASS, QUARTER WINDOW, RH
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
62712GLASS, QUARTER WINDOW, LH
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
*TT,T=3.5,GREEN
62731CHINGE, QUARTER WINDOW, RH
main62731-89102iLN150,152..DLX..CBU;KDN150,151,16#,190,KZN165,LN17#,RZN154,174,VZN172..(THXTR,XTR)..(CBU,IV3)200108-200506
LOWER
62731EHINGE, QUARTER WINDOW, LH
main62731-89101iRZN154..ARL;LN152..THXTR;LN172..THXTR..DEFI;LN172,RZN154..CBR,DSL;KZN165,LN150,152,167,171,192,RZN174..(THXTR,XTR)..CBU199711-200109
LOWER
62735JRETAINER, QUARTER WINDOW HINGE, LH
main62735-35010×3iLN152,RZN154..DLX..(CBR,DEFI,DSL);KZN165,LN17#,RZN174..(THXTR,XTR)..(CBU,IV3);LN152,167,192,RZN154..RHD..(THXTR,XTR)..(DEFI,EFI)..CBU199711-200109
62735LRETAINER, QUARTER WINDOW HINGE, RH
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742WEATHERSTRIP, QUARTER WINDOW, LH
62910KLOCK ASSY, QUARTER WINDOW, RH
main62910-35020iRZN154..CBR;RZN154..ARL;KZN165,LN150,152,167,17#,192,RZN174..(THXTR,XTR)..(CBU,IV3)199711-200109
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM4#
MD.MOON MIST,TRIM1#
62920LOCK ASSY, QUARTER WINDOW, LH
main62910-35020iRZN154..CBR;RZN154..ARL;KZN165,LN150,152,167,17#,192,RZN174..(THXTR,XTR)..(CBU,IV3)199711-200109
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM4#
MD.MOON MIST,TRIM1#
90119T0084
main90119-T0084
9015706002
main90157-06002
90157T0002
main90157-T0002
9017906156
main90179-06156
9020211001
main90202-11001
9038611013
main90386-11013
9161160618
main91611-60618
9326056008
main93260-56008
18 parts on this diagram · 2 diagrams in section
SIDE WINDOW for Toyota HILUX
This section contains 19 genuine Toyota parts for the SIDE WINDOW system of the Toyota HILUX. Key components include: GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, HINGE, QUARTER WINDOW, RH, HINGE, QUARTER WINDOW, LH, RETAINER, QUARTER WINDOW HINGE, LH.
