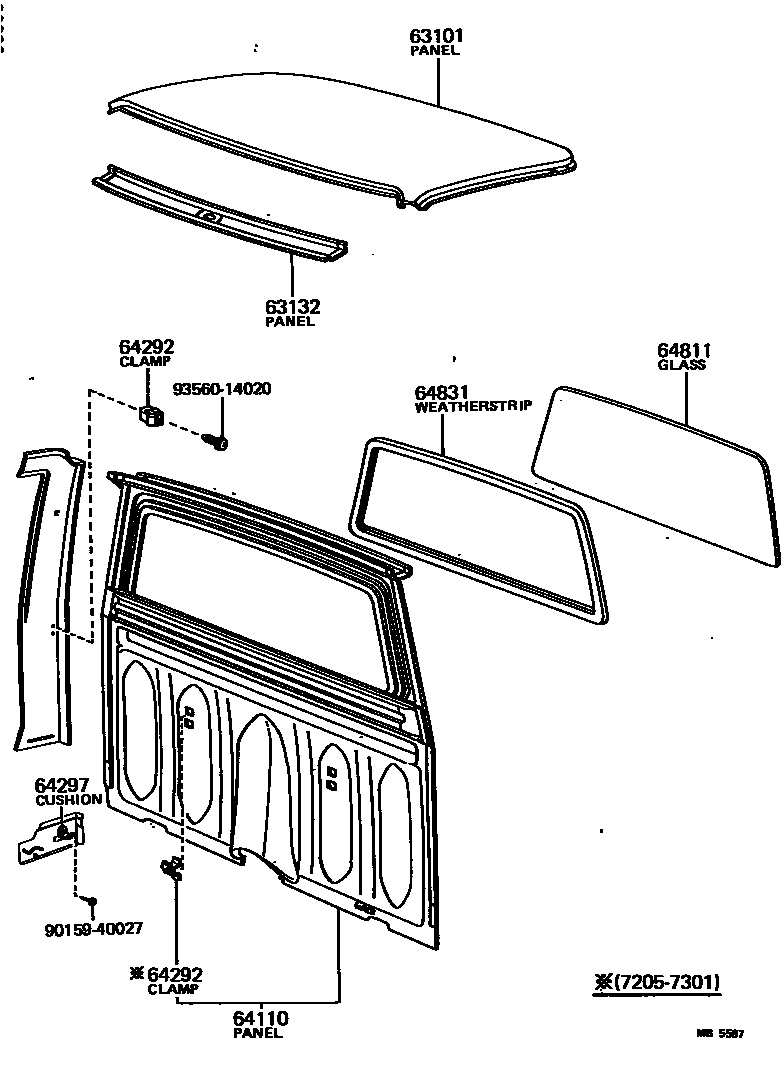

Toyota HILUX — ROOF PANEL & BACK PANEL

63101PANEL SUB-ASSY, ROOF

main63111-89102iRN22..5F197205-197807

main63111-89103iRN22,27..RHD197404-197807

63132PANEL, WINDSHIELD HEADER, INNER

main63132-89102iRN2#197205-197510

sub93530-15016

main63132-89103iRN2#197510-197807

64110PANEL ASSY, FRONT BODY BACK

main64101-89105iRN2#197205-197807

sub64101-89104

main64101-89107iRN20,25..4H197205-197807

AUSTRALIA SPEC.

64292CLAMP, JACK HANDLE

main58706-89101×2iRN22..5F197205-197807

main64292-89102iRN22,27..RHD197404-197807

64297CUSHION, JACK HANDLE

64811GLASS, BACK WINDOW

main64811-89106iRN22..5F197205-197807

TP.T=4.0

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-89106iRN2#197205-197607

main64831-89107iRN2#197607-197807

9015940027

main90159-40027

9356014020

main93560-14020

9 parts on this diagram · 1 diagram in section
