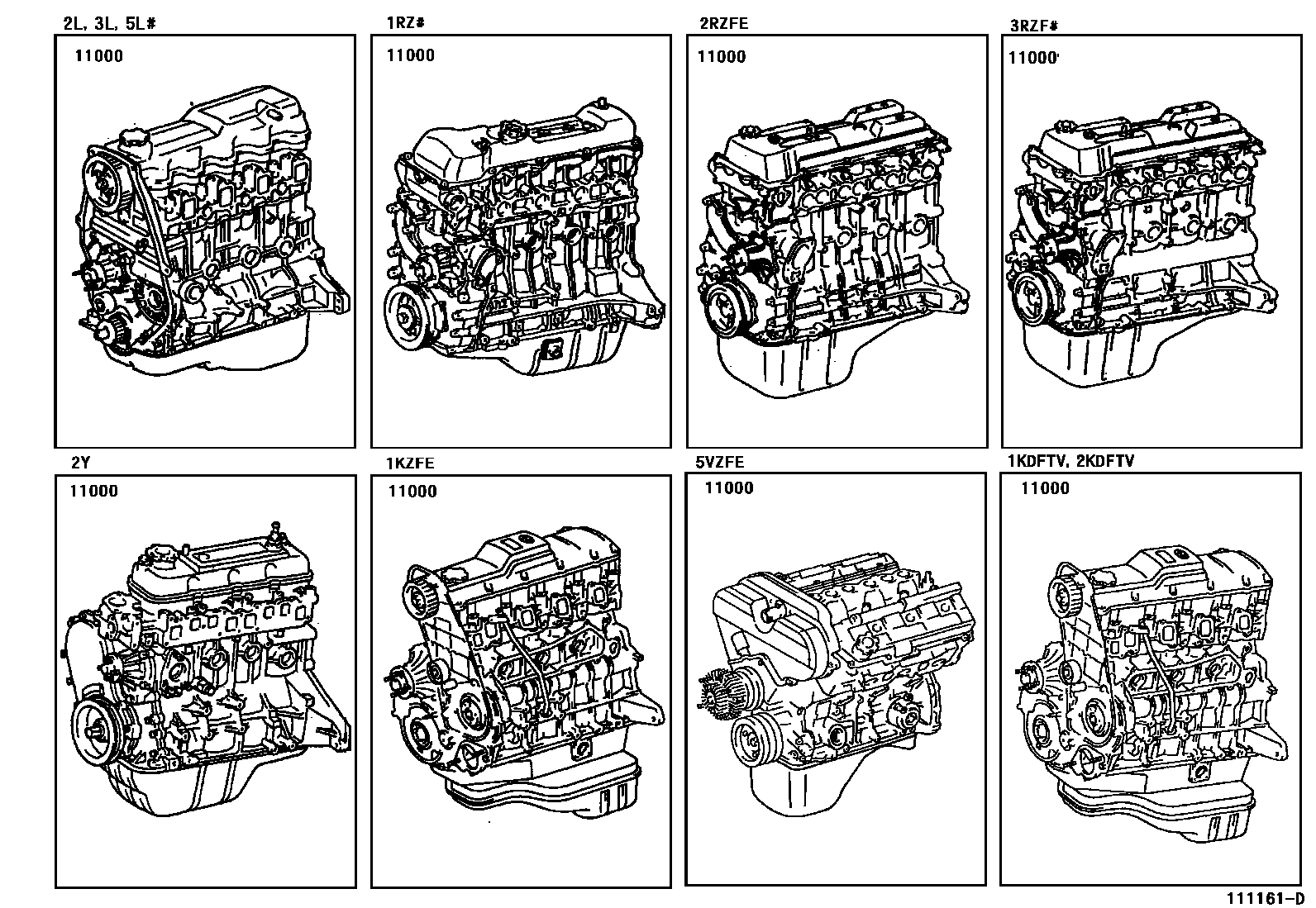

Toyota HILUX — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-05010i5L..LN147,152..THDCB,THSCB,THXTR199808-200009

main19000-05020i5L..LN167,172..THDCB,THSCB,THXTR199808-200009

main19000-05060i5LE..LN147,152200109-200502

sub19000-5B870

main19000-05070i5LE..LN167,172..ARL200109-200502

sub19000-5BA00

main19000-0L010i2KDFTV..KDN155200208-200408

main19000-0L020i2KDFTV..KDN165,190..CBU200110-200503

main19000-0L030i1KDFTV..KDN151200208-200408

main19000-0L040i1KDFTV..KDN166200208-200411

main19000-54851i2L..LN145..RHD..GEN199708-200603

main19000-5B460i2L..LN145..LHD..GEN200108-200506

main19000-5B490i3L..LN141,146199708-200108

main19000-5B500i3L..LN166,171,191..LHD200108-200508

main19000-5B510i3L..LN166..RHD..GEN199708-200603

main19000-5B520i5L..LN147,152..(DCB,SCB,XTR)..ARL199708-200009

main19000-5B530i5L..LN167,172..(DCB,SCB,XTR)..ARL199708-200009

main19000-62510i5VZFE..VZN167,172200208-200502

main19000-67140i1KZTE..KZN165199909-200005

sub82715-26161

sub91162-61216

main19000-67141i1KZTE..KZN165,190200005-200009

main19000-67171i1KZTE..KZN165..(THDCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)200009-200203

main19000-72292i2Y..YN140199808-200010

main19000-75360i1RZ..RZN147..SA199811-200603

main19000-75370i1RZE..RZN147200109-200208

main19000-75390i2RZFE..RZN148199708-199804

main19000-75391i2RZFE..RZN148..DLX199804-200206

main19000-75400i2RZFE..RZN168,193199708-199804

main19000-75401i2RZFE..RZN168,193..DLX199804-200206

main19000-75410i3RZFE..RZN149,154199708-199804

main19000-75411i3RZFE..RZN154..ARL;3RZFE..RZN149..DLX..(ARL,GEN)199804-200206

main19000-75420i3RZFE..RZN169,174199708-199804

main19000-75421i3RZFE..RZN169,174..ARL200109-200208

main19000-75430i3RZF..RZN144,149,154199708-200108

main19000-75440i3RZF..RZN169199708-200108

main19000-75700i3RZFE..RZN144,149..GCC200108-200508

main19000-75710i3RZFE..RZN169..GCC200108-200508

main19000-75720i3RZFE..RZN169,194..SA200203-200504

main19000-75730i3RZFE..RZN154..GEN200108-200506

main19000-75740i3RZFE..RZN169..GEN200108-200506

main19000-75810i3RZFE..RZN149,154..ARL200209-200502

LPG SPEC

1 parts on this diagram · 1 diagram in section
