Toyota HILUX — PARTIAL ENGINE ASSEMBLY

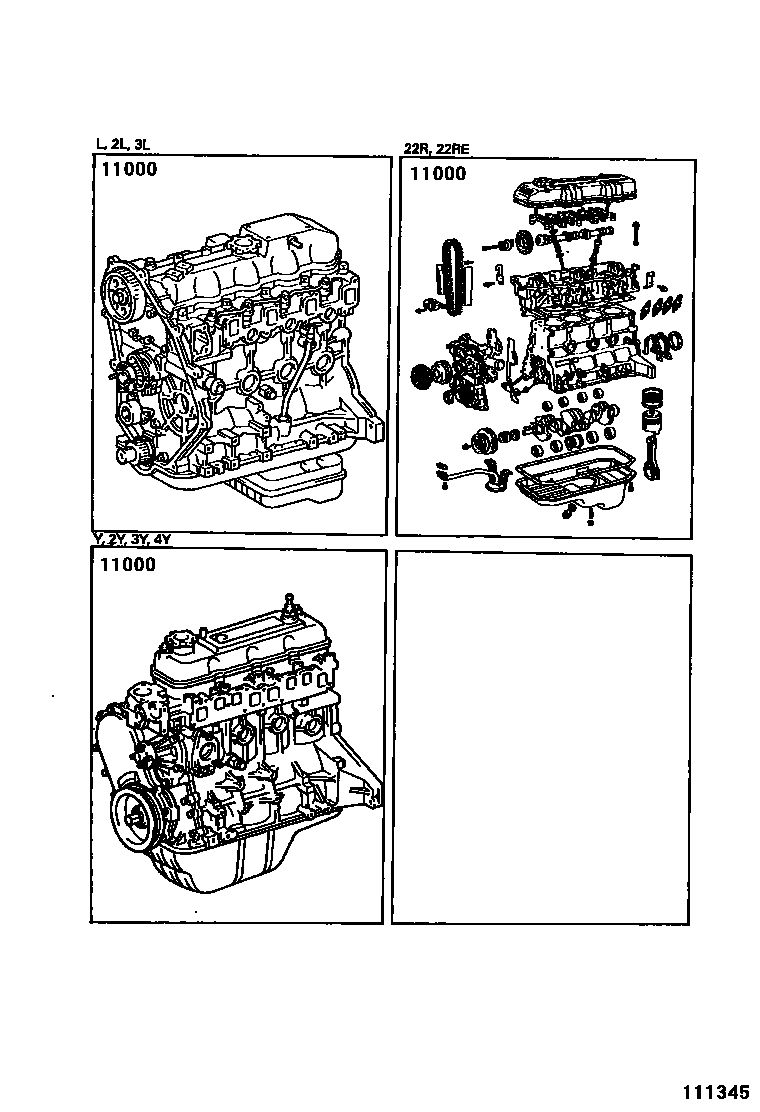

11000ENGINE ASSY, PARTIAL

main19000-35291i22REC..RN61198712-198808

main19000-35400i22R..RN5#198601-198602

main19000-35401i22R..RN5#198602-198808

main19000-35500i22R..RN58..SR5199407-199807

main19000-35560i22R..RN67199407-199807

main19000-35610i22REC..RN61198808-198903

main19000-54360iL..LN50,55198308-198408

sub19000-54361

main19000-54370i2L..LN56198308-198407

main19000-54371i2L..LN51,56;2L..LN65..LHD..RCB..EUR..CBU;2L..LN65..RHD..STD..(ARL,EUR)198407-198708

main19000-54372i2L..LN5#;2L..LN65..LHD..RCB..EUR..CBU;2L..LN65..RHD..STD..(ARL,EUR)198708-198805

sub13405-54011

sub13405-54060

sub32101-30052

sub32116-35010

sub32117-35010

sub90105-12014

sub90105-12109

main19000-54373i2L..LN5#198805-198807

main19000-54374i2L..LN5#198807-199208

main19000-54380i2L..LN60;2L..LN65..GEN198308-198407

main19000-54381i2L..LN6#198407-198805

sub13405-54060

sub90105-12109

main19000-54382i2L..LN6#198805-198807

main19000-54383i2L..LN6#198807-199208

main19000-54760i3L..LN67199508-199807

main19000-54780i2L..LN56198707-198805

MALAYSIA SPEC,HONG KONG SPEC

sub13405-54011

sub13405-54060

sub90105-12109

main19000-54800i2L..LN65198707-198805

MALAYSIA SPEC,HONG KONG SPEC

sub13405-54060

sub90105-12109

main19000-54851i2L..LN51,56199508-199807

main19000-5B200i3L..LN57199508-199807

main19000-5B260i2L..LN5#199208-199508

main19000-5B270i2L..LN65199208-199508

main19000-71020i1YC..YN55198308-198502

sub87208-89126

main19000-71021i1YC..YN55198502-198708

main19000-71030i1Y..YN50,55198308-198401

main19000-71040i1Y..YN50,55198401-198502

sub87208-89126

main19000-71041i1Y..YN50,55198502-198508

main19000-71100i1Y..YN50,55198508-199807

main19000-72110i2Y..YN56198308-198502

sub87208-89126

main19000-72111i2Y..YN56198502-198508

main19000-72210i2Y..YN56198508-198608

main19000-72290i2Y#..YN51,56198608-199303

main19000-72291i2Y..YN51,56199303-199408

main19000-72292i2Y..YN51,56199408-199807

main19000-73100i3Y..YN52,57198308-198401

main19000-73110i3Y..YN57..ARL198308-198502

*NSW

sub87208-89126

main19000-73111i3Y..YN57..ARL198502-198708

*NSW

sub19000-73112

main19000-73120i3Y..YN65..EUR198308-198502

sub87208-89126

main19000-73121i3Y..YN65..EUR198502-198508

sub19000-73122

main19000-73130i3Y..YN6#..ARL,GEN,ME198308-198401

main19000-73140i3Y..YN6#..ARL198308-198502

*NSW

sub87208-89126

main19000-73141i3Y..YN6#..ARL198502-198508

*NSW

sub19000-73142

main19000-73170i3Y..YN52,57198401-198502

sub87208-89126

main19000-73171i3Y..YN52,57198502-198508

sub19000-73172

main19000-73180i3Y..YN6#..ARL,GEN,ME,SA198401-198502

sub87208-89126

main19000-73181i3Y..YN6#..ARL,GEN,ME,SA198502-198508

sub19000-73182

main19000-73400i3Y..YN52,57..MTM198508-198608

main19000-73401i3Y..YN57198908-199303

main19000-73410i3Y..YN57..ARL198508-198708

sub19000-73411

main19000-73420i3Y..YN65198508-198608

sub19000-73421

main19000-73440i4Y..YN62,63,67198508-198608

main19000-73441i4Y..YN67199303-199807

main19000-73510i4Y..YN6#..ARL,EUR198608-198903

main19000-73520i4Y..YN58198608-199303

main19000-73521i4Y..YN58199303-199807

main19000-73630i4YE..YN63198608-198903

main19000-73650i4YC..YN58198708-198808

1 parts on this diagram · 1 diagram in section
