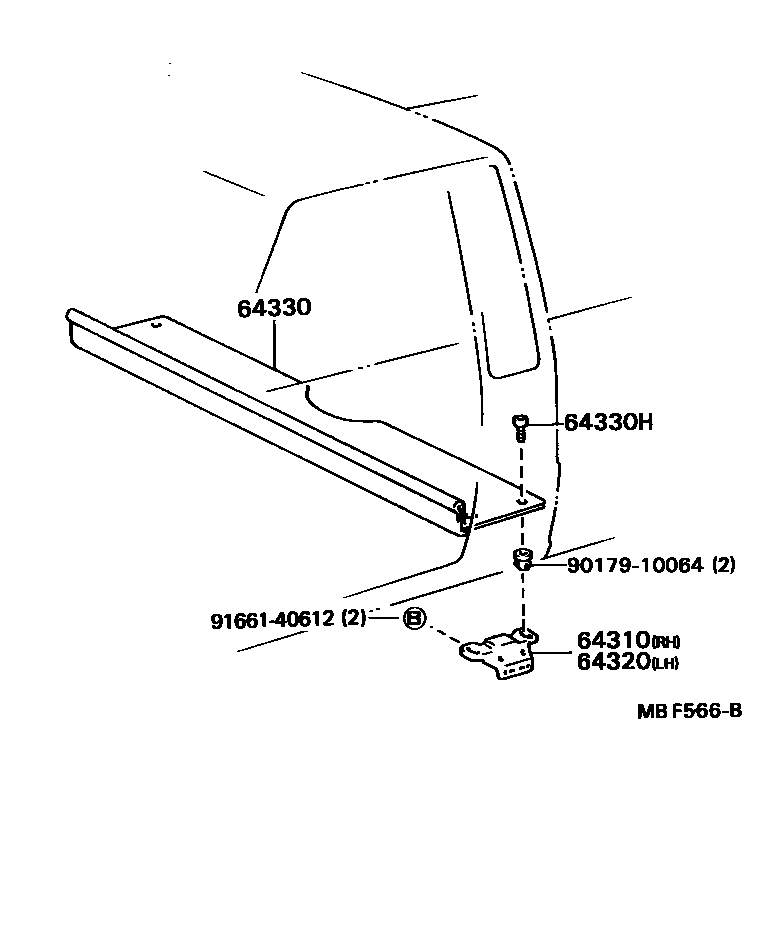

Toyota HILUX — PACKAGE TRAY PANEL

64310BRACKET, PACKAGE TRAY TRIM, RH

main64321-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

64320BRACKET, PACKAGE TRAY TRIM, LH

main64321-89101iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

64330PANEL ASSY, PACKAGE TRAY TRIM

main64303-89101-03iLN55,56,YN57,65..XTR198309-198508

LIGHT GRAY,GRAY,TRIM1#,8#

main64303-89101-04iLN55,56,YN57,65..XTR198309-198508

LIGHT BLUE,BLUE,TRIM8#

main64303-89101-05iLN56,65,YN56,57,58,67..XTR198608-199807

BEIGE,BEIGE,TRIM4#

main64303-89101-06iLN55,56,YN57,65..XTR198309-198508

LIGHT BROWN,BROWN,TRIM4#

main64303-89101-13iLN56,YN57,67..XTR198508-198608

GRAY,GRAY,TRIM1#

main64303-89101-14iLN56,YN57,67..XTR198508-198608

BLUE,BLUE,TRIM8#

main64303-89101-16iLN56,YN57,67..XTR198508-198608

BROWN,BROWN,TRIM4#

main64303-89101-23iLN56,65,YN56,57,58,67..XTR198608-199807

GRAY,GRAY,TRIM1#

main64303-89101-24iLN56,65,YN56,57,58,67..XTR198608-199807

BLUE,BLUE,TRIM8#

64330HBOLT(FOR PACKAGE TRAY TRIM PANEL)

main90109-10064-03×4iLN55,56,YN57,65..XTR198309-198508

GRAY,GRAY,TRIM1#

main90109-10064-04×4iLN55,56,YN57,65..XTR198309-198508

BLUE,BLUE,TRIM8#

main90109-10064-05×4iLN56,65,YN56,57,58,67..XTR198608-199807

BEIGE,BEIGE,TRIM4#

main90109-10064-06×4iLN55,56,YN57,65..XTR198309-198508

BROWN,BROWN,TRIM4#

main90109-10064-13×4iLN56,YN57,67..XTR198508-198608

GRAY,GRAY,TRIM1#

main90109-10064-14×4iLN56,YN57,67..XTR198508-198608

BLUE,BLUE,TRIM8#

main90109-10064-16×4iLN56,YN57,67..XTR198508-198608

BROWN,BROWN,TRIM4#

main90109-10064-23×4iLN56,65,YN56,57,58,67..XTR198608-199807

GRAY,GRAY,TRIM1#

main90109-10064-24×4iLN56,65,YN56,57,58,67..XTR198608-199807

BLUE,BLUE,TRIM8#

9017910064

main90179-10064

9166140612

main91661-40612

6 parts on this diagram · 1 diagram in section
