Toyota HILUX — MIRROR
81261ALENS AND COVER, MAP LAMP
LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
RED,TRIM3#
W(MAP LAMP),MOON MIST,TRIM1#
W(MAP LAMP),LT.BLUISH GRAY,TRIM1#
W(MAP LAMP),RED,TRIM3#
87810MIRROR ASSY, INNER REAR VIEW
main87810-04040-B1iRZN149..SCB..DLX;LN145,166,RZN169..LHD..SCB..GEN..CBU;LN147,167,RZN147,148,16#..SCB..(DSL,EFI)199708-199805
LT.BLUISH GRAY,TRIM10,MARK=USA
main87810-04040-B2iRZN149..SCB..DLX;LN145,166,RZN169..LHD..SCB..GEN..CBU;LN147,167,RZN147,148,16#..SCB..(DSL,EFI)199708-199805
MOON MIST,TRIM10,MARK=USA
W(DAY & NIGHT MIRROR ANTI SCATTER & MAP LAMP),MOON MIST,TRIM1#; W(DAY & NIGHT MIRROR ANTI SCATTER),MOON MIST,TRIM1#
W(DAY & NIGHT MIRROR ANTI SCATTER & MAP LAMP),LT.BLUISH GRAY,TRIM1#
W(DAY & NIGHT MIRROR ANTI SCATTER & MAP LAMP),RED,TRIM3#
MOON MIST,TRIM1#
W(MAP LAMP),LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
CHINA SPEC,LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
LT.BLUISH GRAY,TRIM1#
CHINA SPEC,MOON MIST,TRIM1#; MOON MIST,TRIM1#
CHINA SPEC,LT.BLUISH GRAY,TRIM1#
RED,TRIM3#
CHINA SPEC,MOON MIST,TRIM1#; MOON MIST,TRIM1#
LT.BLUISH GRAY,TRIM1#
RED,TRIM3#
main87810-89140-B0iLN145..LHD..IV3;LN145,166..SCB..GEN..CBU; RZN142,147..SCB..GEN; RZN148,168..SCB..GEN..CBU200108-200506
CHINA SPEC OR COLOMBIA SPEC OR W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#; COLOMBIA SPEC,LT.BLUISH GRAY,TRIM1#; W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#
main87810-89140-B1iLN147,RZN149..MTM..IV3;LN167,RZN147,148,16#..SCB..(DSL,EFI);LN145,166,RZN149,169..LHD..SCB..GEN..CBU199805-199806
MOON MIST,TRIM10,MARK=JAPAN
main87810-89141-B0iLN145..SR;LN147,172,RZN149,154..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU200108-200407
W(DAY & NIGHT MIRROR ANTI SCATTER),LT.BLUISH GRAY,TRIM1#
main87810-89141-B1iRZN148,149,168..DCB..DLX..GEN; RZN154..ATM;RZN149..SR..GEN;LN147,167,172,RZN149,169,174..(DCB,XTR)..ARL; RZN169..LHD..DCB..GEN;LN145,166,RZN154..(DCB,XTR)..MTM..(DSL,EFI)..(ARL,GEN)..CBU199708-199805
COLOMBIA SPEC,MOON MIST,TRIM1#; MOON MIST,TRIM1#; W(DAY & NIGHT MIRROR ANTI SCATTER),MOON MIST,TRIM1#
W(DAY & NIGHT MIRROR ANTI SCATTER),RED,TRIM3#
LT.BLUISH GRAY,TRIM10
MOON MIST,TRIM10
W(DAY & NIGHT MIRROR ANTI SCATTER),RED,TRIM3#
87810BBULB, INNER REAR VIEW MIRROR LAMP
main99132-13050iRZN148,168..SCB..CBU;LN145,RZN147..RHD..SCB..GEN..CBU;LN16#,192,RZN142..RHD..SCB..(GEN,SA)200109-200203
12V 5W
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
NATURAL
main87834-89105-B1iLN145..LHD..TH;LN147,172,RZN149,154..THDCB,THXTR;LN152,167..(THDCB,THXTR)..DLX..CBU200108-200407
LT.BLUISH GRAY,TRIM1#
MOON MIST,TRIM1#
RED,TRIM3#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
CHINA SPEC
W(VENT WINDOW)
W(ELECTRIC REMOTE CONTOROL MIRROR)
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED); W(POWER WINDOW)
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
CHINA SPEC
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED)
W(VENT WINDOW)
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED)
87910MIRROR ASSY, OUTER REAR VIEW, RH
CHINA SPEC; TURKEY SPEC & W(OUTSIDE REAR VIEW MIRROR=DOOR)
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED) & W(VENT WINDOW); W(VENT WINDOW & POWER WINDOW)
W/O(VENT WINDOW)
CHROME PLATED
main87910-35510iKZN165..DLX..CBU;RZN149..SCB..MTM..IV3;RZN149..ATM..ARL..CBU;LN147,152,167,172..DEFI..ARL;RZN147,169..(THDCB,THSCB)..CBU;RZN149..(DCB,THDCB,THSCB)..MTM..ARL; RZN169..(DCB,SCB)..ARL..CBU;RZN147,149,154,174..(SCB,THXTR,XTR)..ARL..CBU199708-200109
W(OUTSIDE REAR VIEW MIRROR=DOOR)
CHROME PLATED & W(VENT WINDOW); W(VENT WINDOW) & W(OUTSIDE REAR VIEW MIRROR=DOOR)
PAINTED(BLACK)
W(VENT WINDOW)
CHROME PLATED
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED)
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED); W(POWER WINDOW)
W(OUTSIDE REAR VIEW MIRROR=DOOR)
main87910-35790iRZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN; RZN154,169..LHD..GEN;LN166,RZN148,168..SR..GEN200108-200506
CHROME PLATED; W(OUTSIDE REAR VIEW MIRROR=DOOR PLATING)
W(VENT WINDOW)
main87910-35810iRZN148..DLX..GEN..CBU;LN145,166,171,191,RZN142,147,168,193..LHD..DLX..GEN; RZN154,169..LHD..DLX..GEN200108-200506
CHROME PLATED & W(VENT WINDOW); W(VENT WINDOW) & W(OUTSIDE REAR VIEW MIRROR=DOOR)
ELECTRIC REMOTE CONTROL DOOR MIRROR
87911GASKET, OUTER REAR VIEW MIRROR, RH
main87911-35020iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU200108-200506
87915COVER, OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
CHINA SPEC; TURKEY SPEC
CHINA SPEC
W(VENT WINDOW & POWER WINDOW)
main87940-35460iLN145..DCB..IV3;LN145..LHD..IV3;RZN148..DLX..GEN;RZN154,169..CBR..GEN;LN145,166,171,191,RZN142,147,149,168,193..DLX..GEN..CBU200009
W/O(VENT WINDOW)
main87940-35470iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,168,193..DLX..GEN..CBU; RZN154,169..GEN;LN166,RZN148,168..SR..GEN200108-200506
CHROME PLATED; W(OUTSIDE REAR VIEW MIRROR=DOOR PLATING)
main87940-35480iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,168,193..DLX..GEN..CBU; RZN154,169..DLX..GEN200108-200506
W(OUTSIDE REAR VIEW MIRROR=DOOR); W(VENT WINDOW)
main87940-35490iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,168,193..DLX..GEN..CBU; RZN154,169..DLX..GEN200108-200506
CHROME PLATED & W(VENT WINDOW); W(VENT WINDOW)
PAINTED(BLACK)
W(VENT WINDOW)
CHROME PLATED
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED)
ELECTRIC REMOTE CONTROL MIRROR(CHROME PLATED)
ELECTRIC REMOTE CONTROL DOOR MIRROR
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-35020iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..DLX..GEN..CBU200108-200506
87945COVER, OUTER MIRROR, LH
main87945-89106iVZN167..DLX..CBU;LN147,167..SCB..IV3;RZN149..DCB..ATM..DLX..ARL;RZN149..(DCB,SCB)..MTM..DLX..ARL;KZN165,LN152..(SCB,XTR)..ARL..CBU;KZN165,LN147,167,172,RZN154,VZN172..(DCB,XTR)..DLX..ARL200108-200502
9015760010
main90157-60010
9015950236
main90159-50236
91511B0616
main91511-B0616
9351016020
main93510-16020
9354016020
main93540-16020

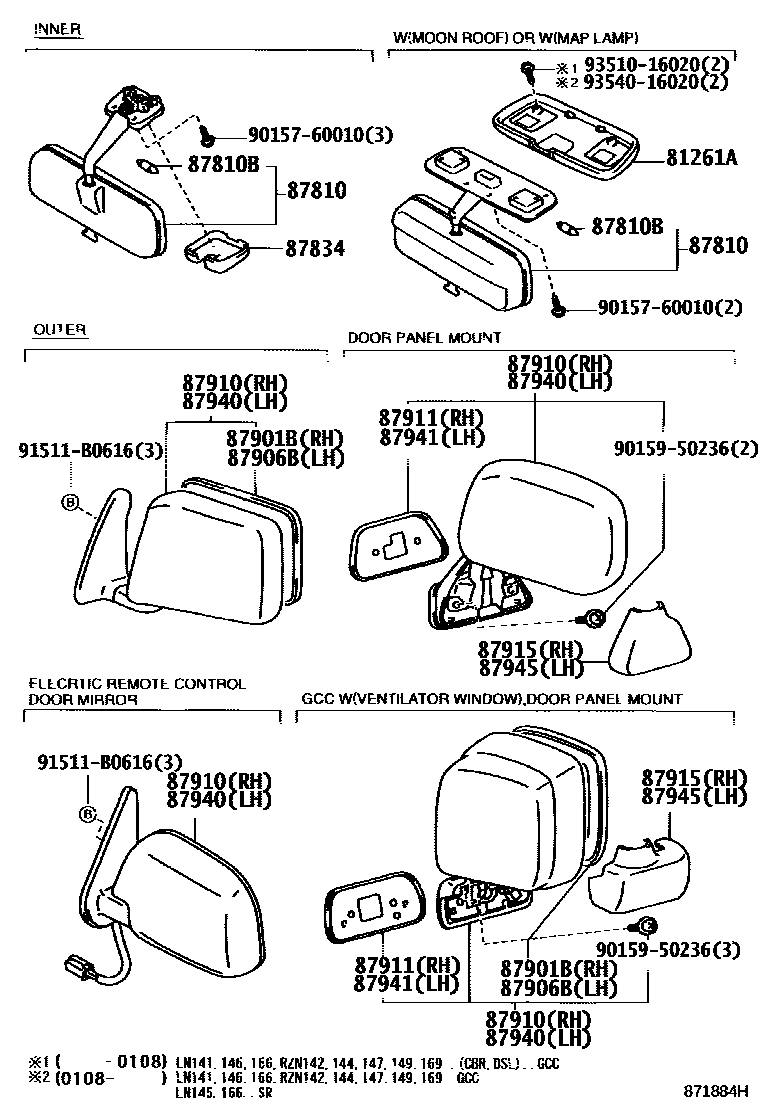

17 parts on this diagram · 1 diagram in section
MIRROR for Toyota HILUX
This section contains 17 genuine Toyota parts for the MIRROR system of the Toyota HILUX. Key components include: LENS AND COVER, MAP LAMP, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
