Toyota HILUX — METER
83100BBULB, COMBINATION METER, NO.1
12V3.4W W(GREEN CAP),TYPE B:REFER ILLUST.
12V3.4W W(GREEN CAP),TYPE B:REFER ILLUST.
12V 1.4W,W(SOCKET),W(TACHO METER),TYPE A:REFER ILLUST.
12V3.4W,W(GREEN CAP); 12V3.4W,W(GREEN CAP),TYPE B:REFER ILLUST.
12V 3.4W,W(SOCKET),W(TACHO METER)
12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST.
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
CHINA SPEC,TYPE B:REFER ILLUST.
main83101-14040iLN167..SR..SA;RZN169..GCC,SA;RZN149..EFI..GEN;RZN147,149..DLX..GCC;RZN169..(SCB,THSCB)..ARL;RZN149..(SCB,THSCB)..(ARL,GCC);LN152,172,RZN147..RHD..(DCB,SCB,XTR)..DLX..(CBR,DSL);LN147,167,RZN154..(SCB,THDCB,THSCB,THXTR,XTR)..DLX..(DSL,EFI);LN141,145,146,166,171,19#,RZN142,144,148,168,174,19#,YN140..(DCB,SCB,THXTR,XTR)..(CBR,DSL,EFI)..(ARL,GCC,GEN,SA)200008-200108
TYPE A:REFER ILLUST.
main83101-20070iRZN147,169..SA;RZN148,149,168..DLX..GEN..CBU;LN140,145,166,RZN194..RHD..(GEN,SA)..CBU200110-200203
W(TACHO METER),TYPE B:REFER ILLUST.
83110SPEEDOMETER ASSY
W(TACHOMETER)
W(TACHOMETER & DOOR AJAR WARNING)
W(TACHOMETER)
MPH & KM/H
MPH & KM/H
TURKEY SPEC
TURKEY SPEC
MPH & KM/H
MPH & KM/H
main83220-35220iRZN147,149,154,169,174..(DCB,SCB,XTR)..ARL; RZN148,149,168..DLX..GEN..CBU200108-200109
THAILAND PRODUCT & W(TACHOMETER); W(TACHOMETER)
main83220-35230iLN147,167..(DCB,SCB)..ARL;KZN165,LN152,172..(DCB,SCB,THDCB,THSCB,XTR)..ARL199908-200109
W(TACHOMETER)
CHINA SPEC & W(TACHOMETER)
W(TACHOMETER),MPH & KM/H
TURKEY SPEC & W(TACHOMETER)
W(TACHOMETER),MPH & KM/H
W(TACHOMETER)
W(TACHOMETER)
CHINA SPEC
W/O(TACHOMETER)
W/O(TACHOMETER---MILE/H+KM/H)
CHINA SPEC & W/O(TACHOMETER)
W/O(TACHOMETER)
W/O(TACHOMETER)
W(SPEED METER---MILE/KM)
W/O(TACHOMETER)
main83220-35620iRZN147,174,193..(DCB,SCB,XTR)..EFI;RZN149,154,169..(DCB,SCB,XTR)..ARL; RZN148,154,16#..GEN..CBU200108-200506
W(TACHOMETER); W(TACHOMETER---KM/H)
MILE/KM; W(TACHOMETER)
CHINA SPEC; CHINA SPEC & W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
GENERAL SPEC; W(TACHOMETER---KM/H)
W(TACHOMETER)
W(TACHOMETER)
main83220-35720iLN167..SCB..IV3;LN167..DCB..DLX..ARL;KZN165,LN147,152,172..(DCB,SCB,XTR)..ARL200109-200308
TURKEY SPEC
TURKEY SPEC & W(TACHOMETER)
83132CASE, COMBINATION METER
W/O(TACHOMETER)
W/O(TACHOMETER)
MIDDLE EAST SPEC
main83841-35580iRZN147,169..SA;RZN148,149,168..DLX..GEN..CBU;KZN165,190,LN140,145,16#,192,RZN194..RHD..(GEN,SA)..CBU200110-200203
W(TACHOMETER)
CHINA SPEC
main83841-3G190iKZN190..SR;LN147,167,VZN167,172..(DCB,SCB,XTR)..MTM;KDN165,190,KZN165,LN152,172,192..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,MA,SA)200109-200504
83133PLATE, COMBINATION METER, NO.1
main83811-35380iLN145..LHD..IV3;RZN149..SR..GCC;RZN148..DLX..GEN..CBU;RZN147,169..DLX..(ARL,GEN);RZN142,168..DLX..(CO,GEN,SA);RZN148,149..DLX..(ARL,CO,GCC);LN141,145,146,166,171,191,RZN144,154,174,193..(DSL,EFI)..(ARL,GCC,GEN,MA)..CBU200108-200511
83138GLASS, SPEEDOMETER
main83852-35020iRZN169..SA;KZN190,RZN194..SR;LN147,167,VZN167,172..DCB,SCB,XTR;KDN165,190,KZN165,LN145,152,172,192,RZN147..(DCB,SCB,THDCB,THSCB,XTR)..(CBR,DCR,DEFI,DSL,TDE)..(ARL,MA,SA)200109-200504
main83852-35400iRZN148,149..CO;LN145..LHD..IV3;LN145,RZN147,148,169..DLX..GEN..CBU;LN166,171,191,RZN142,154,168,193..DLX..(CO,GEN,MA,SA)200108-200511
main83852-35580iRZN142,147..ARL,GCC;LN141,145,146,147,152,16#,17#,191,RZN144,148,149,154,16#,174,193..ARL,GCC,GEN199907-199908
W(TACHOMETER)
83147GCONNECTOR, COMBINATION METER
83159BRELAY ASSY, METER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83882-35380iRZN149..DLX..GEN;RZN142,147,148,154,16#,193;LN141,146,166,RZN144,149,174..ARL,GCC199708-199805
W(TACHOMETER)
GENERAL SPEC
main83882-35660iLN147,167,172..(DCB,SCB,XTR)..DEFI..ARL;KZN165,LN152..(DCB,SCB,THDCB,THSCB,XTR)..ARL199811-200109
CHINA SPEC
W/O(TACHOMETER)
W/O(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
HOT SPEC
main83883-35411iLN141,146,166,RZN142,144,147,149,169..GCC; RZN169..LHD..GEN;RZN142,147,154..GEN199805-200108
HOT SPEC
HOT SPEC
HOT SPEC
main83883-35580iRZN147..(DCB,SCB)..(ARL,SA)..CBU;LN147,167,192,RZN149,169..(DCB,SCB)..(DSL,EFI)..(ARL,SA);LN140,145,172,RZN154,174,194..(SCB,XTR)..(DSL,EFI)..(ARL,SA)199908-200109
W(TACHOMETER)
THAILAND PRODUCT & W(TACHOMETER)
W(TACHOMETER)
CHINA SPEC
CHINA SPEC
W(TACHOMETER & HOT SPEC WATER TEMPERATURE RECEIVER GAUGE)
main83883-3D110iRZN147..SCB..ARL;RZN149..ATM..ARL;RZN147..LHD..SCB..GEN;RZN149..MTM..DLX..(ARL,GEN);RZN147..(DCB,THSCB)..(ARL,GEN);RZN142,154,169,174,193..ARL,GEN199805-200108
W/O(TACHOMETER)
main83883-3D780iRZN142,147,154..GEN;RZN169..LHD..DLX..GEN;LN141,146,166,RZN144,149..GCC200108-200508
GENERAL SPEC
W(WATER TEMPERATURE GAUGE)
main83883-3G030iRZN169..SA;KZN190,RZN194..SR;LN147,167,VZN167,172..DCB,SCB,XTR;KDN165,190,KZN165,LN152,172,192,RZN147..(DCB,SCB,THDCB,THSCB,XTR)..(CBR,DCR,DEFI,TDE)..(ARL,MA,SA)200109-200504
main83883-3G050iLN145..LHD..GEN..CBU; RZN168..SCB..CBU;LN166,171,191,RZN154,169,193..GEN200108-200506
GENERAL SPEC & W(TACHOMETER)
MIDDLE EAST SPEC; MIDDLE EAST SPEC & W(TACHOMATER)
83247PLATE, METER CIRCUIT
W/O(TACHOMETER)
main83861-35440iRZN147,169..ARL,GEN;RZN142,148,149,154,168,174,193,YN140..DLX..(ARL,GEN,SA)199708-200108
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
W(TACHOMETER)
CHINA SPEC & W/O(TACHOMETER)
W(TACHOMETER)
main83861-3G080iRZN148..DLX..GEN..CBU;RZN168..DCB..DLX..GEN; RZN148..GEN..CBU;RZN168..DCB..GEN200108-200304
CHINA SPEC
W(TACHOMETER)
W(TACHOMETER)
main83861-3G150iLN145..LHD..IV3;LN166..SCB..GEN;LN166..DCB..(GEN,MA);LN145,171,191..GEN..CBU200108-200506
W(TACHOMETER)
W(TACHOMETER)
TURKEY SPEC
W(TACHOMETER) & TURKEY SPEC
8319387501
main83193-87501
8319487502
main83194-87502
9009900226
main90099-00226
9009900917
main90099-00917
9009900929
main90099-00929
9356855014
main93568-55014

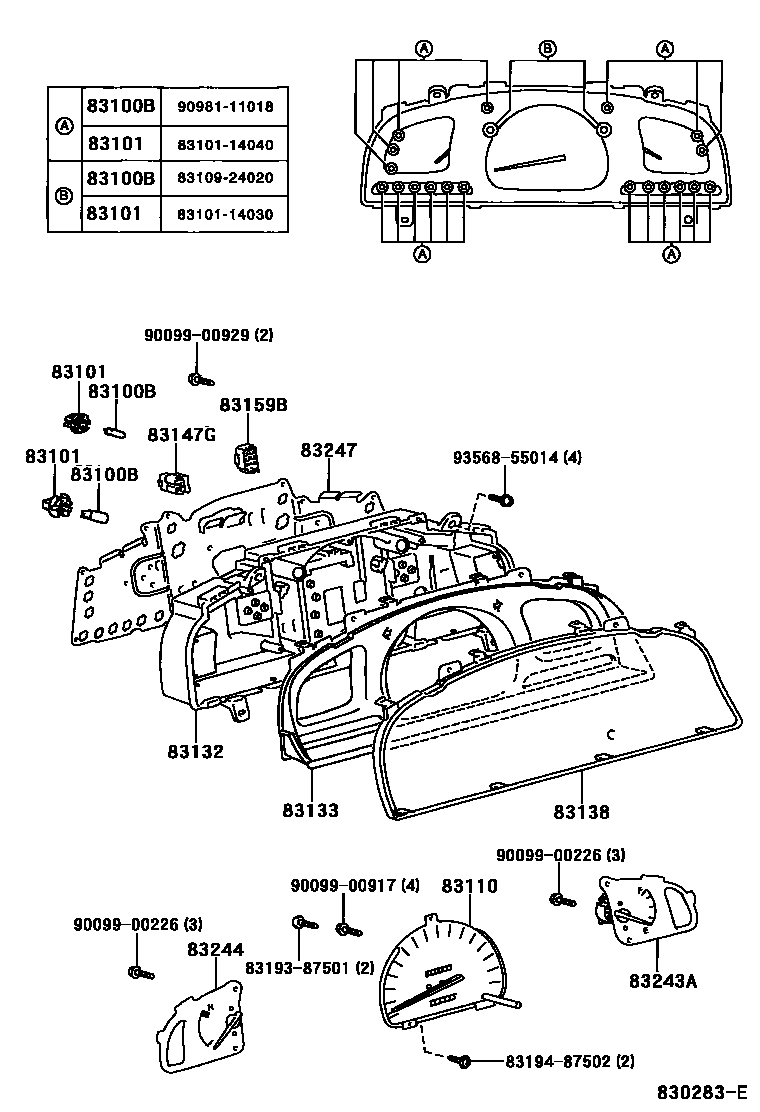

17 parts on this diagram · 7 diagrams in section
METER for Toyota HILUX
This section contains 49 genuine Toyota parts for the METER system of the Toyota HILUX. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
