Toyota HILUX — FRONT VENTILATOR

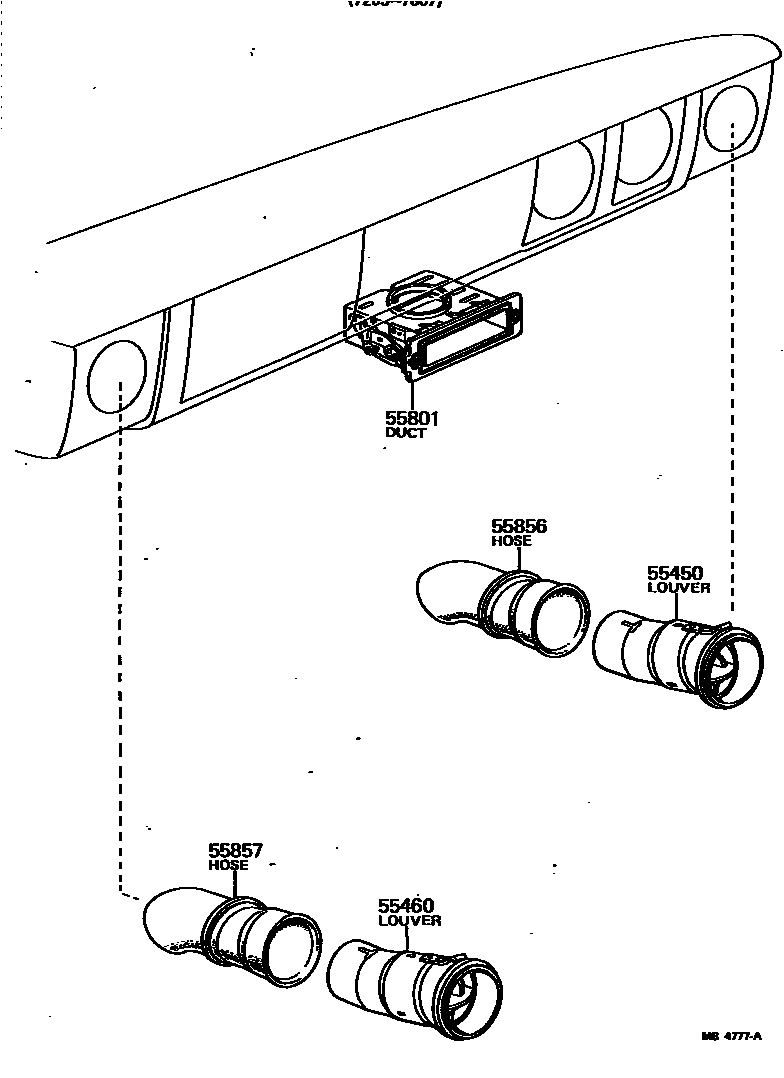

Parts diagram

55450LOUVER ASSY, SIDE VENTILATOR, RH

main55402-10011i197404-197807

main55402-89101i197205-197404

main55402-89102i197404-197408

55460LOUVER ASSY, SIDE VENTILATOR, LH

main55402-10011i197404-197807

main55402-89101i197205-197404

main55402-89102i197404-197408

55801DUCT ASSY, COWL VENTILATOR

main55810-89112i197205-197408

55856HOSE, COWL VENTILATOR DUCT, RH

main55856-89101i197205-197807

55857HOSE, COWL VENTILATOR DUCT, LH

main55856-89101i197205-197807

5 parts on this diagram · 1 diagram in section
