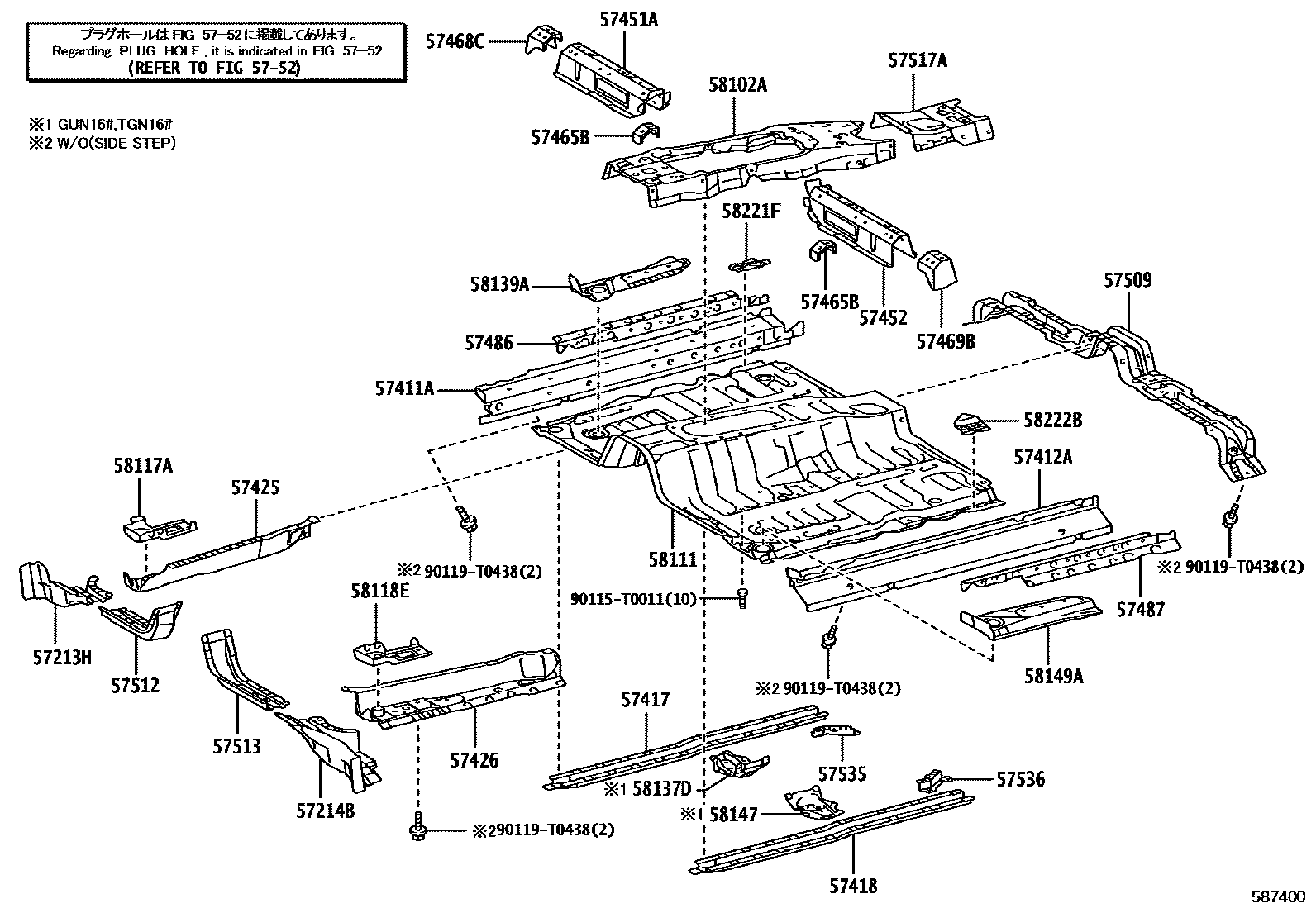

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57213HBRACKET, BODY MOUNTING, NO.2 RH
57214BBRACKET, BODY MOUNTING, NO.2 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
main57451-KK010iGUN125..AD;GUN125..AS..BZAG;GUN13#..(AD,AS)..6F;GGN125,GUN126,TGN126,128,136..AD,AS; GUN125..AS..LA;GUN13#,TGN138..AD..6FC; GUN136..LA;GUN126..6F..L..LA;GUN126..TD..H..LA;GUN125..TD..6F..LA;GUN126..TD..6F..S..LA;GUN135..(AS,TD)..6F..LA;GUN125,126..6FC..(L,S)..LA202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
57452MEMBER, FRONT FLOOR CROSS, LH
main57452-KK010iGUN125..AD;GUN125..AS..BZAG;GUN13#..(AD,AS)..6F;GGN125,GUN126,TGN126,128,136..AD,AS; GUN125..AS..LA;GUN13#,TGN138..AD..6FC; GUN136..LA;GUN126..6F..L..LA;GUN126..TD..H..LA;GUN125..TD..6F..LA;GUN126..TD..6F..S..LA;GUN135..(AS,TD)..6F..LA;GUN125,126..6FC..(L,S)..LA202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
57465BBRACKET, FRONT SEAT, INNER
57468CBRACKET, FRONT SEAT, OUTSIDE, RH
57469BBRACKET, FRONT SEAT, OUTSIDE LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57517ARETAINER, FRONT FLOOR REINFORCEMENT, REAR
5752HOLE PLUG
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR
58111PAN, FRONT FLOOR
main58111-KK010iGUN135..RHD..6F..(ARL,KEN,SA,TH);GUN112,122,123,125,126,136,TGN110,120,121,136..RHD..MTM202006-202111
main58111-KK020supersedes 58111-KK060iGUN125..AD..6F;GUN125..AS..BZAG;GUN126,13#,TGN126,136..(AD,AS)..MTM202006-202110
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58118EBRACKET, JACK SET
main58118-KK010iGUN125..AD;GUN125..AS..BZAG;GUN13#..(AD,AS)..6F;GGN125,GUN126,TGN126,128,136..AD,AS; GUN125..AS..LA;GUN13#,TGN138..AD..6FC; GUN136..LA;GUN126..6F..L..LA;GUN126..TD..H..LA;GUN125..TD..6F..LA;GUN126..TD..6F..S..LA;GUN135..(AS,TD)..6F..LA;GUN125,126..6FC..(L,S)..LA202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
58137DBRACKET, FRONT FLOOR HOUSING, FRONT RH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58147BRACKET, FRONT FLOOR HOUSING, FRONT LH
58149APLATE, FRONT FLOOR SIDE, REAR LH
58221FREINFORCEMENT, FLOOR PANEL, FRONT RH
58222BREINFORCEMENT, FLOOR PANEL, FRONT LH
90115T0011
main90115-T0011
90119T0438
main90119-T0438
34 parts on this diagram · 6 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 55 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, PLATE, STEP, RH, PLATE, STEP, LH, COVER, STEP PLATE, RH.
