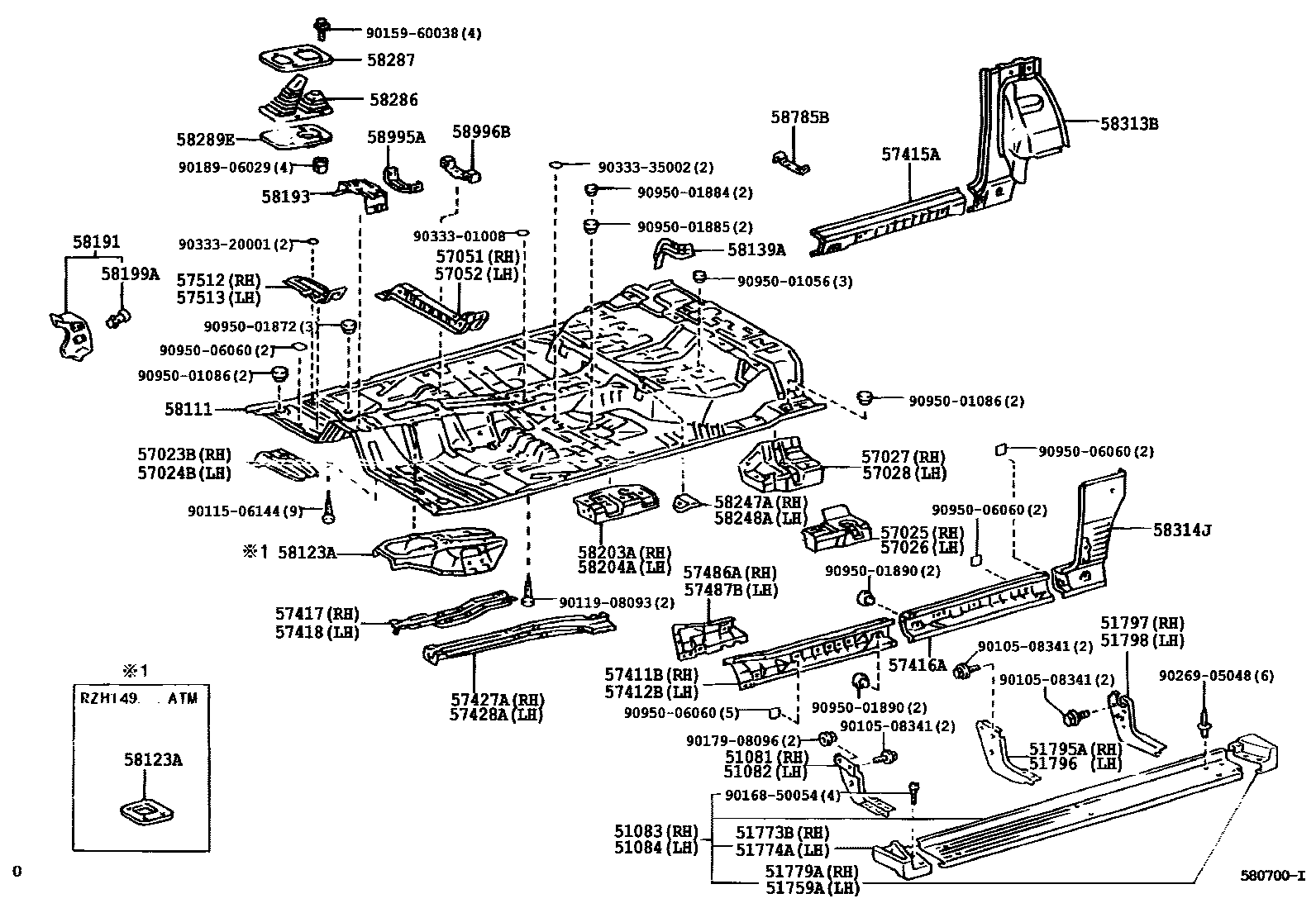

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51081STAY SUB-ASSY, SIDE STEP, NO.1 RH
main51081-35040iRZN169..CBR;RZN169..DCB..SA;RZN168..DLX..GEN;LN16#,171,19#,RZN193..(DSL,EFI)..(GCC,GEN,TH)..CBU199708
main51081-35050iLN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA)199708
W(OVER FENDER)
51082STAY SUB-ASSY, SIDE STEP, NO.1 LH
main51082-35040iKZN190,RZN169,194..SCB..SR;LN166,171,191,RZN16#,193..(CO,GCC,GEN,MA)..CBU200108-200511
51083STEP SUB-ASSY, RH
main51083-35110iRZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,19#,RZN193..DCB..(DSL,EFI)..(GCC,GEN,SA)199708-200403
W(OVER FENDER)
W(OVER FENDER)
51084STEP SUB-ASSY, LH
main51084-35100iRZN169..DCB..SA;RZN169..DCB..CBR;RZN168..DCB..DLX..GEN;LN16#,19#,RZN193..DCB..(DSL,EFI)..(GCC,GEN,SA)199708-200403
W(OVER FENDER)
W(OVER FENDER)
main51084-35120iKZN190,RZN169..SCB..SR;RZN169..SCB..(GCC,GEN);LN166,RZN168,194..SCB..CBU200108-200307
main51084-35121iRZN169..SCB..SR;RZN169..SCB..(GCC,GEN);KZN190,LN166,RZN168,194..SCB..CBU200307-200508
51759ACOVER, SIDE DOOR STEP PLATE, REAR LH
main51759-35050iRZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA)199708-200603
W(OVER FENDER)
51773BCOVER, SIDE DOOR STEP PLATE, FRONT RH
W(OVER FENDER)
51774ACOVER, SIDE DOOR STEP PLATE, FRONT LH
W(OVER FENDER)
51779ACOVER, SIDE DOOR STEP PLATE, REAR RH
main51779-35060iRZN169..DCB..SA;KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN16#,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA)199708-200603
W(OVER FENDER)
51795ABRACKET, SIDE STEP, NO.2 RH
51796BRACKET, SIDE STEP, NO.2 LH
51797BRACKET, SIDE STEP, NO.3 RH
main51797-35060iLN167,RZN169..DCB..SR..(SA,TH);KZN190,RZN169..DCB..DLX..(CBR,TDE)..(GEN,SA);KZN165,LN166,192,RZN194..(DCB,SADCB)..(DSL,EFI,TDE)..(GEN,SA)199708
W(OVER FENDER)
51798BRACKET, SIDE STEP, NO.3 LH
W(OVER FENDER)
57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
main57024-35050iLN152..IV3;RZN169..DCB..SA;LN172..THXTR..IV3;KZN165..SR..(ARL,SA);RZN149..MTM..DLX..ARL;RZN147,194..DCB,SADCB,SCB;LN167..(SCB,THDCB,THSCB)..DLX..DEFI;RZN169..(DCB,SCB,THDCB)..DLX..(ARL,SA);KZN165,RZN154..(SCB,THXTR,XTR)..MTM..DLX..ARL;RZN149,154..(DCB,SCB,THDCB,XTR)..ATM..DLX..(ARL,GEN);LN167,RZN144,149,154,169..(CBR,DSL)..(ARL,GCC,GEN,SA);KZN165,LN167,172..(DCB,THXTR)..DLX..(DEFI,TDE)..ARL..CBU;KZN190,LN141,145,146,147,166,17#,19#,RZN142,148,168,174,193,YN140..(DCB,SCB,THDCB,THSCB,XTR)..DLX..(ARL,GCC,GEN,SA)199708
57025BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
NEW ZEALAND SPEC
main57025-35060iKZN165..THSCB;RZN147,169..(SCB,THSCB)..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208
57026BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
main57026-35070iRZN154..MTM..ARL;RZN154..XTR..ATM;LN172,RZN174..XTR;LN172..THXTR..IV3;LN172..THXTR..DEFI..CBU;LN152,171,RZN154..DLX..(CBR,DEFI,DSL)199711-200109
57027BRACKET SUB-ASSY, BODY MOUNTING, NO.4 RH
57028BRACKET SUB-ASSY, BODY MOUNTING, NO.4 LH
main57028-35020iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)199708
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
main57051-35020iKZN190..SCB..SR;LN140,145,167,192..SCB..SA; RZN142,147..SA; RZN169..DLX..SA; RZN169..SCB..SR200108-200504
W(FRONT BENCH SEAT)
W(SEPARATE SEAT)
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
main57052-35041iLN145..LHD..IV3;RZN169..SR..GEN;LN145,166,171,191,RZN142,147,148,154,168,193..GEN..CBU; RZN169..DLX..GEN200108-200506
W(SEPARATE SEAT)
57411BMEMBER, FLOOR SIDE, INNER RH
main57411-35050iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208
57412BMEMBER, FLOOR SIDE, INNER LH
main57412-35050iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708
57415ARAIL SUB-ASSY, FLOOR SIDE, REAR RH
main57415-35020iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)199708-200603
57416ARAIL SUB-ASSY, FLOOR SIDE, REAR LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
main57417-35040iRZN149..(SCB,THSCB)..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..DLX..(DEFI,EFI)..ARL;LN167,RZN149..(CBR,DSL)..(ARL,GCC,SA,TH);KZN165,RZN194..(DCB,SADCB,SCB)..(ARL,SA);LN145,RZN169..LHD..DLX..(CBR,DSL)..(GCC,TH);LN145,147,RZN144..(SCB,THSCB)..(CBR,DEFI,DSL)..(ARL,GCC,SA,TH);KZN190,LN141,146,155,157,166,172,192,RZN142,147,174,YN140..DLX..(ARL,GCC,SA,TH)199708-200203
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
main57418-35040iRZN149..(SCB,THSCB)..ARL;KZN165..(THDCB,THSCB,XTR)..SR;LN167,RZN169..(DEFI,EFI)..(SA,TH);LN167,RZN169..DLX..(DEFI,EFI)..ARL;LN167,RZN149..(CBR,DSL)..(ARL,GCC,SA,TH);KZN165,RZN194..(DCB,SADCB,SCB)..(ARL,SA);LN145,RZN169..LHD..DLX..(CBR,DSL)..(GCC,TH);LN145,147,RZN144..(SCB,THSCB)..(CBR,DEFI,DSL)..(ARL,GCC,SA,TH);KZN190,LN141,146,155,157,166,172,192,RZN142,147,174,YN140..DLX..(ARL,GCC,SA,TH)199708-200203
57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH
57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57512REINFORCEMENT, FRONT FLOOR, RH
main57512-35021iLN167..SR..ARL;KZN165..DCB..TH;RZN147,169..ARL;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208
57513REINFORCEMENT, FRONT FLOOR, LH
58111PAN, FRONT FLOOR
main58111-04281iLN152,RZN154..THXTR..MTM; RZN154..XTR..MTM..ARL;LN152,RZN154..XTR..DLX..(CBR,DEFI)200101-200109
W(REAR JUMP SEAT)
W(REAR JUMP SEAT)
main58111-35311iRZN149..DCB..CBR;LN145..LHD..DLX..TH;LN145,146,191,RZN147,19#..DCB..(GCC,GEN,SA);LN147,RZN148,149..(DCB,THDCB)..MTM..DLX..(DEFI,EFI)..(ARL,GEN)200101
58123ASUPPORT, SHIFT & SELECT LEVER
main58123-35051iRZN169..SR;LN167..SCB..ARL;RZN169..ARL,GCC,GEN;LN145,RZN147,149..MTM..(ARL,GEN);LN155,RZN142,148..LHD..(GEN,TH)..CBU;KZN165,LN147,150,152,166,17#,191,RZN154,168,174,19#..MTM;KZN190,LN145,167,192,RZN147..(DCB,THDCB,THSCB,XTR)..(CBR,DEFI,DSL,TDE)..(ARL,SA,TH)199909-200010
58139APLATE, FRONT FLOOR SIDE, REAR RH
main58139-35010iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)199708
58191FOOTREST, FRONT FLOOR
main58190-04010iLN167..THDCB,XTR;LN145,155,157,167..RHD..(DCB,SCB)..TH;KZN165,LN150,152,192..(THDCB,THSCB,XTR)..SR;LN147,152,172,RZN149,154,169,174..THDCB,THXTR199909-200109
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
main58193-35040iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
NEW ZEALAND SPEC
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
main58204-35010iRZN154..MTM..ARL;RZN154..XTR..ATM;LN172,RZN174..XTR;LN172..THXTR..IV3;LN172..THXTR..DEFI..CBU;LN152,171,RZN154..DLX..(CBR,DEFI,DSL)199711-200109
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
main58247-89102iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)199708
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58286-35150iRZN194;LN152..IV3;RZN144,149..CBR;LN147,192,RZN154..DLX..(CBR,DEFI,DSL)199708-200203
58287RETAINER, SHIFT LEVER BOOT
58289EBOOT, SHIFT LEVER, NO.2
58313BPANEL, REAR FLOOR SIDE, RH
main58313-35900iKZN165..DCB..ARL;LN167..(DCB,THDCB)..DLX..ARL;LN147,RZN149,VZN167..(DCB,THDCB)..ARL200108-200502
58314JPANEL, REAR FLOOR SIDE, LH
main58314-35030iKZN165..THDCB..SR;LN145..LHD..DLX..TH;RZN169..(DCB,THDCB)..DLX..ARL;LN167,RZN149,169..(DCB,THDCB)..(CBR,DSL);LN167,RZN169..DCB..SR..(DEFI,EFI)..(SA,TH);LN167,RZN149..(DCB,THDCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,LN146,19#,RZN147,19#..(DCB,SADCB)..(ARL,GCC,GEN,SA)..CBU;KZN190,LN145,147,166,RZN148,168..(DCB,THDCB)..DLX..(ARL,GCC,GEN,SA)199708
58785BBRACKET, TOOL BAG BAND
main58785-89106iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;RZN169..(DCB,THDCB)..ARL;KZN165,RZN174..(THDCB,THXTR,XTR)..ARL200108-200208
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996BBRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-35010iLN167..SCB..ARL;LN152..DEFI..IV3;LN150,RZN194..SR;RZN169..DLX..ARL;LN145..LHD..DLX..TH;RZN149..DCB..DLX..CBR;RZN169..LHD..DCB..CBR..GEN;RZN149..DLX..EFI..(ARL,GEN);LN167..(DCB,THDCB,THSCB,XTR)..DSL;LN141,146,147,17#,RZN174,193..DLX;KZN165,RZN149..SR..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN165,LN152,RZN154..(THXTR,XTR)..(CBR,DSL,TDE);LN166,192..(DCB,XTR)..(DEFI,DSL)..(GCC,GEN,SA,TH);LN155,RZN142,144,147,169..LHD..(CBR,DSL)..(GCC,TH);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);LN167,RZN148,168..(DCB,THDCB,THSCB)..DLX..(DEFI,EFI)..(ARL,GEN);KZN165,190,LN145,RZN154..RHD..(DCB,THXTR,XTR)..DLX..(ARL,GEN,SA)..CBU199708
9010508341
main90105-08341
9011506144
main90115-06144
9011908093
main90119-08093
9015960038
main90159-60038
9016850054
main90168-50054
9017908096
main90179-08096
9018906029
main90189-06029
9026905048
main90269-05048
9033301008
main90333-01008
9033320001
main90333-20001
9033335002
main90333-35002
9095001056
main90950-01056
9095001086
main90950-01086
9095001872
main90950-01872
9095001884
main90950-01884
9095001885
main90950-01885
9095001890
main90950-01890
9095006060
main90950-06060
68 parts on this diagram · 4 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 89 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: STAY SUB-ASSY, SIDE STEP, NO.1 RH, STAY SUB-ASSY, SIDE STEP, NO.1 LH, STEP SUB-ASSY, RH, STEP SUB-ASSY, LH, COVER, SIDE DOOR STEP PLATE, REAR LH.
