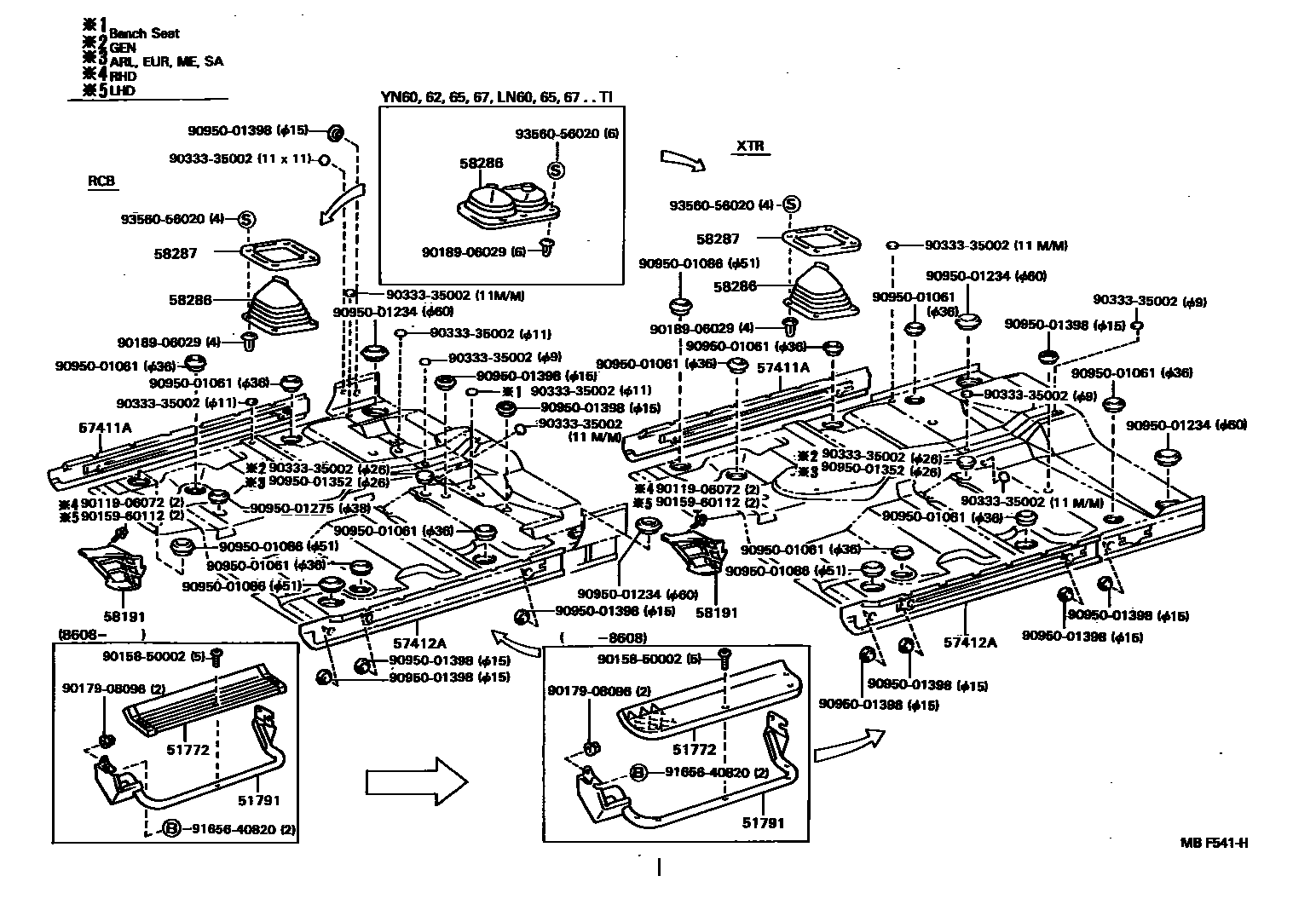

Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51772PLATE, STEP
51791STAY, STEP
RH
RH
RH
RH
RH
RH
LH
LH
LH
LH
LH
LH
57411AMEMBER, FLOOR SIDE, INNER RH
main57411-89103iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN50,52,56,6#; YN55..GEN; YN57..LHD..RCB; YN57..RHD198706-199807
57412AMEMBER, FLOOR SIDE, INNER LH
main57412-89105iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN50,52,56,6#; YN55..GEN; YN57..LHD..RCB; YN57..RHD198706-199807
58191FOOTREST, FRONT FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
9011906072
main90119-06072
9015850002
main90158-50002
9015960112
main90159-60112
9017908096
main90179-08096
9018906029
main90189-06029
9033335002
main90333-35002
9095001061
main90950-01061
9095001086
main90950-01086
9095001234
main90950-01234
9095001275
main90950-01275
9095001352
main90950-01352
9095001398
main90950-01398
9165640820
main91656-40820
9356056020
main93560-56020
21 parts on this diagram · 3 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX
This section contains 30 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: PLATE, STEP, PLATE SUB-ASSY, REAR STEP, RH, PLATE SUB-ASSY, REAR STEP, LH, STAY, STEP, STAY, STEP PLATE, NO.2.
