Toyota HILUX — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

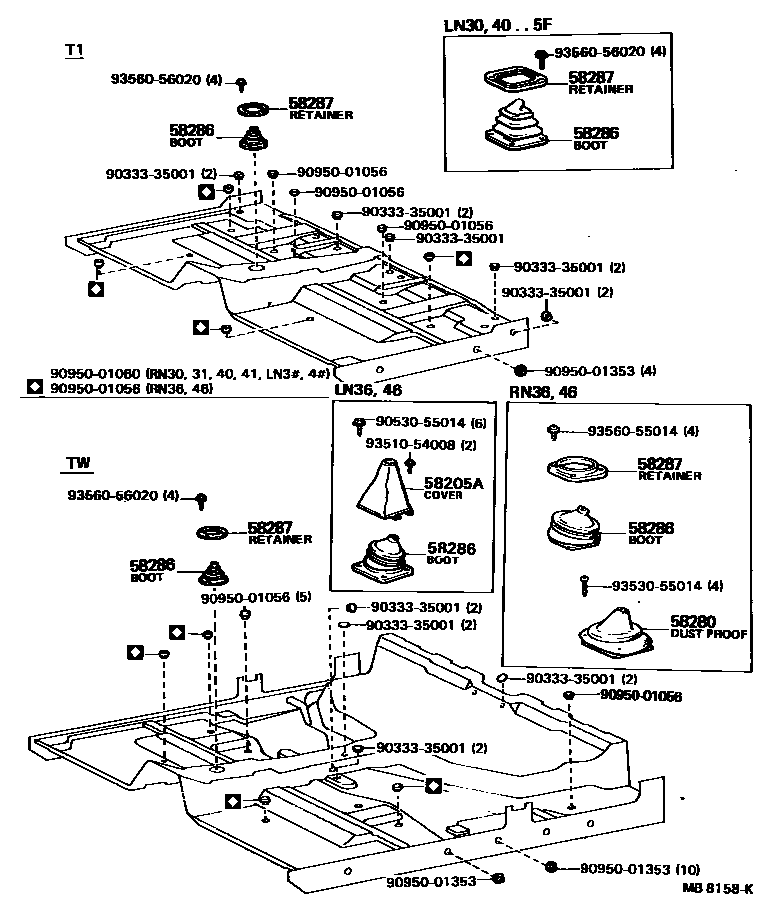

Parts diagram

58205ACOVER SUB-ASSY, SHIFT LEVER BOOT

main58205-95112i198103-198307

58280DUST PROOF ASSY, TRANSFER CONTROL LEVER

main58285-95111i197901-198307

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58209-95111i198103-198307

main58286-89103i197808-198005

main58286-89104i197808-198307

main58286-89105i197808-198008

main58286-89106i197911-198403

main58286-89107i198108-198312

main58286-89107i198112-198307

W/BENCH SEAT

main58286-89108i198005-198008

main58286-89109i198008-198403

main58286-95110i197901-198307

58287RETAINER, SHIFT LEVER BOOT

main33574-89102i197808-198005

main58287-89102i197808-198312

main58287-89103i197911-198403

main58287-89104i198008-198403

main58287-95110i197901-198307

9033335001

main90333-35001

9053055014

main90530-55014

9095001056

main90950-01056

9095001060

main90950-01060

9095001353

main90950-01353

9351054008

main93510-54008

9353055014

main93530-55014

9356055014

main93560-55014

9356056020

main93560-56020

13 parts on this diagram · 1 diagram in section

FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota HILUX

This section contains 13 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota HILUX. Key components include: COVER SUB-ASSY, SHIFT LEVER BOOT, DUST PROOF ASSY, TRANSFER CONTROL LEVER, BOOT, SHIFT & SELECT LEVER, NO.1, RETAINER, SHIFT LEVER BOOT.
