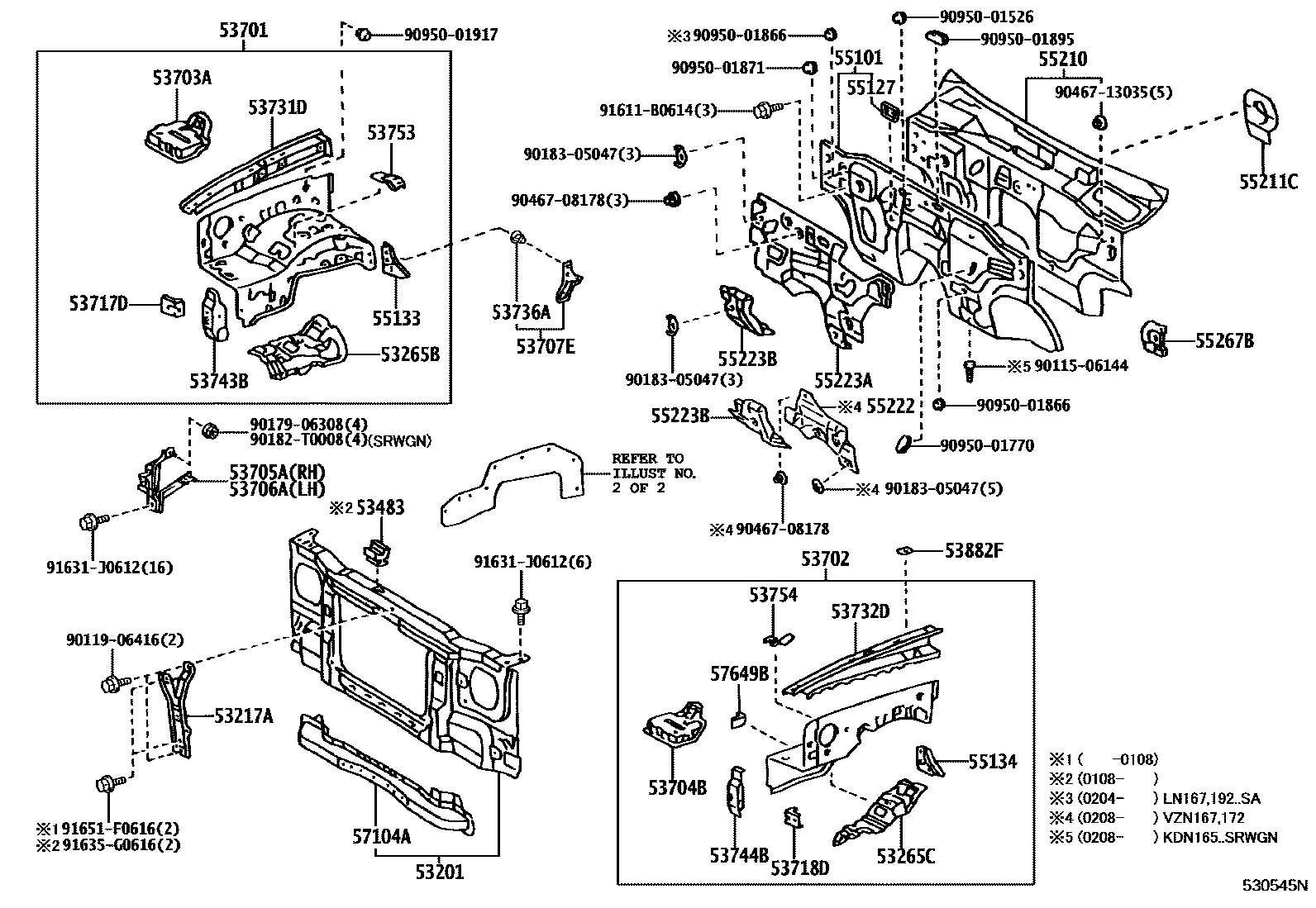

Toyota HILUX — FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
main53201-35130iLN147..DCB;LN147..SCB..IV3;KZN165,LN140,145,167,172,192,RZN142,147,149,154,169,174,194..(DCB,SCB,XTR)..(ARL,SA)200108-200109
main53201-35160iLN145,155..LHD..TH;KZN165,LN147,152,167,172,RZN147,149,154,169,174..THDCB,THSCB,THXTR200009-200109
main53201-35190iLN147,167..IV3;RZN149..DLX..ARL;LN147,152,167..(DCB,THDCB,THXTR,XTR)..DLX..ARL..CBU;KZN165,LN172,RZN154,VZN167,172..(DCB,SCB,THXTR,XTR)..DLX..ARL200108-200502
53217ABRACE, HOOD LOCK SUPPORT
main53217-35030iLN152,17#,RZN154,174..DLX;KZN165,190,LN14#,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SADCB,SCB,THDCB,THSCB199708-200009
53265BBRACKET, BATTERY CARRIER MOUNTING, NO.1 RH
main53265-35040iLN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208
53265CBRACKET, BATTERY CARRIER MOUNTING, NO.1 LH
53483PROTECTOR, HOOD SUPPORT ROD
53701APRON SUB-ASSY, FRONT FENDER, RH
W(ABS)
W(ABS)
WASHER TANK = 4.6L
WASHER TANK = 4.6L
WASHER TANK = 4.6L
WASHER TANK = 4.6L
WASHER TANK = 4.6L & W(ABS)
WASHER TANK = 4.6L & W(ABS)
W(ABS)
W(ABS)
main53701-35721iLN152..IV3;KZN165..SR..ARL;KZN165..SCB..DLX;KZN165..DCB..DLX..CBU;LN145,147,16#,172..RHD..DLX..(ARL,GEN)199908
WASHER TANK = 4.6L & W(ABS)
WASHER TANK = 4.6L & W(ABS)
W(SRS AIR BAG)
WASHER TANK = 4.6L & W(ABS & SRS AIR BAG)
WASHER TANK = 4.6L & W(SRS AIR BAG)
W(SRS AIR BAG)
W(ABS & SRS AIR BAG)
main53701-3D180iLN147,167..(DCB,SCB)..ARL;LN147,152,167,172..(THDCB,THSCB,THXTR)..DEFI;KZN165,LN152,172..(DCB,SCB,THDCB,THSCB,XTR)..ARL199908-200109
W(SRS AIR BAG)
WASHER TANK = 4.6L & W(ABS & SRS AIR BAG)
WASHER TANK = 4.6L & W(SRS AIR BAG)
W(SRS AIR BAG)
W(ABS & SRS AIR BAG)
W(ABS & SRS AIR BAG)
53702APRON SUB-ASSY, FRONT FENDER, LH
W(A.D.D)
W(A.D.D)
W(A.D.D)
W(A.D.D)
W(SRS AIR BAG)
W(SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
main53702-3D020iRZN144,149,169..GCC; RZN148,149..CO;RZN148..GEN..CBU;RZN154,16#,193..LHD..(CO,GEN)200108
W(SRS AIR BAG)
W(A.D.D)
W(SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
W(SRS AIR BAG)
W(A.D.D)
W(SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
W(A.D.D)
W(SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
W(SRS AIR BAG)
W(A.D.D)
W(SRS AIR BAG)
W(A.D.D & SRS AIR BAG)
53703ASUPPORT SUB-ASSY, BATTERY, RH
main53703-35030iLN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;LN167..(SCB,THSCB)..ARL..CBU200108-200208
53704BSUPPORT SUB-ASSY, BATTERY, LH
main53704-35060iRZN169..CBR;LN145..LHD..IV3;LN145..DCB..IV3;RZN169..DCB..SA;RZN142,147,174,19#;LN145..LHD..DLX..TH;RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);LN145,166,RZN168..DLX..(GCC,GEN)..CBU;LN147,RZN154..(DCB,THXTR,XTR)..(DSL,EFI)..ARL;LN167,RZN148..(DCB,SCB)..DLX..(DSL,EFI)..(ARL,GEN);LN141,146,155,171,191,RZN144,149,154..LHD..(CBR,DSL)199708
53705ABRACE SUB-ASSY, FENDER APRON, RH
main53705-35040iLN152,17#,RZN154,174..DLX;KZN165,190,LN14#,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SADCB,SCB,THDCB,THSCB199708-200009
53706ABRACE SUB-ASSY, FENDER APRON, LH
main53706-35040iLN147..IV3;LN147..DCB,THDCB;LN145,155..LHD..TH;KZN165,LN140,145,167,172,192,RZN142,147,149,154,169,174,194..ARL,SA200108-200109
main53706-35070iKZN165..TH;LN167..SR..ARL;KDN165,190..IV1;KZN165..THDCB,THSCB;RZN147,169,174..ARL;LN167..(SCB,THSCB)..ARL..CBU200108-200208
53707EAPRON SUB-ASSY, FENDER SIDE, RH
main53707-35010iRZN142,147,149,154..ARL,GCC;LN141,146,147,150,152,16#,17#,19#,RZN144,16#,174,19#199708-199909
main53707-35020iRZN142,147,149,154..ARL,GCC;KZN165,LN141,146,147,152,16#,17#,19#,RZN144,16#,174,19#..ARL,GCC,GEN,SA199909-199910
53717DGUSSET, FENDER APRON, RH
main53717-35010iLN167..DSL;LN145..DCB..GEN;LN152..DEFI..IV3;LN150,RZN194..SR;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);RZN169..DLX..(ARL,SA);KZN165,LN145..SCB..DLX;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;KZN165,LN152..(THXTR,XTR)..(DSL,TDE);LN192,RZN144,149,154,169..CBR,DEFI,DSL;LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH);KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-35050iKZN165,LN141,145,146,147,15#,16#,17#,19#,RZN14#,154,16#,174,193..ARL,GCC,GEN,TH199708-200008
53736ACLIP(FOR FRONT FENDER APRON SEAL)
main90467-10186×2iKZN190..SR;LN147..IV3;RZN142,147..ARL,GCC;LN167,192,RZN149,154..ARL,GCC,SA;LN147,152..(DCB,THDCB,THXTR,XTR)..ARL..CBU;KDN145,150,151,16#,190,KZN165,LN141,146,166,17#,191,RZN144,16#,174,19#,VZN167,172200108-200511
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53753BRACKET, RELAY BOX MOUNTING, NO.2
main53753-35020iLN167..SCB..SA;RZN147..RHD..SCB..GEN;KZN190,RZN148,168..DLX..(GEN,SA)..CBU;KZN165,LN140,145,166,192..RHD..(GEN,SA)200110
53754BRACKET, RELAY BOX MOUNTING, NO.2
53882FSEAL, FRONT FENDER
55101PANEL SUB-ASSY, DASH
W(A.D.D & 245/75R15 TIRE)
W(HEATER)
W(HEATER)
W(AIR CONDITIONER & HEATER)
W(ABS)
W(ABS & HEATER)
W(ABS & AIR CONDITIONER & HEATER)
W(ABS & AIR CONDITIONER & HEATER)
W(HEATER)
W(AIR CONDITIONER & HEATER)
W(HEATER)
W(AIR CONDITIONER & HEATER)
W(AIR CONDITIONER & HEATER)
W(AIR CONDITIONER & HEATER)
W(A.D.D)
W(AIR CONDITIONER)
W(ABS & HEATER)
W(ABS & AIR CONDITIONER & HEATER)
W(FOOT REST)
W(HEATER)
MALAYSIA SPEC
W(AIR CONDITIONER & HEATER)
W(AIR CONDITIONER )
W(HEATER)
W(ABS & HEATER)
W(AIR CONDITIONER & HEATER)
W(ABS & AIR CONDITIONER & HEATER)
W(ABS)
W(HEATER)
W(AIR CONDITIONER & HEATER)
W(ABS)
W(AIR CONDITIONER)
W(ABS)
W(ABS & AIR CONDITIONER)
W(ABS & AIR CONDITIONER & HEATER)
W(ABS & HEATER)
W(AIR CONDITIONER)
W(ABS)
W(ABS & AIR CONDITIONER)
W(ABS & HEATER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER & HEATER)
W(AIR CONDITIONER)
W(ABS & AIR CONDITIONER & HEATER)
W(HEATER)
W(HEATER)
W(AIR CONDITIONER & HEATER)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC & W(ABS)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC & W(ABS)
SAUDI ARABIA SPEC
SAUDI ARABIA SPEC & W(ABS)
55127REINFORCEMENT, PARKING BRAKE
main55127-34010iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708
main55127-35020iLN192..SCB;LN140,145,147,16#,172,RZN147,149,154,169,174,194..RHD..(ARL,GEN,SA)199708-199808
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210INSULATOR ASSY, DASH PANEL
W(CARPET)
W(CARPET)
W(CARPET)
W(CARPET)
55211CCOVER, DASH PANEL INSULATOR
main55211-35030iRZN149..EFI..GEN;LN145,166,RZN148,168,193..LHD..DLX..(GCC,GEN,TH);LN141,146,155,171,191,RZN142,144,147,149,154,169..LHD..(CBR,DSL)199708
55222INSULATOR, DASH PANEL, OUTER CENTER
55223AINSULATOR, DASH PANEL, OUTER
(L)
(J)
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55225-35100iLN172,RZN154,174..ARL;LN140,145,147,152,16#,192,RZN147,149,169,194..RHD..(DCB,SCB,THDCB,THSCB,THXTR)..(ARL,GEN,SA)199708-199908
55267BCOVER, DASH PANEL INSULATOR, NO.3
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-35040iLN152,17#,RZN154,174..DLX;KZN165,190,LN14#,155,157,16#,19#,RZN14#,16#,19#,YN140..DCB,SADCB,SCB,THDCB,THSCB199708-200009
57649BBRACKET, WIRING HARNESS
9011506144
main90115-06144
9011906416
main90119-06416
9017906308
main90179-06308
90182T0008
main90182-T0008
9018305047
main90183-05047
9046708178
main90467-08178
9046713035
main90467-13035
9095001526
main90950-01526
9095001770
main90950-01770
9095001866
main90950-01866
9095001871
main90950-01871
9095001895
main90950-01895
9095001917
main90950-01917
91611B0614
main91611-B0614
91631J0612
main91631-J0612
91635G0616
main91635-G0616
91651F0616
main91651-F0616
51 parts on this diagram · 2 diagrams in section
FRONT FENDER APRON & DASH PANEL for Toyota HILUX
This section contains 53 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota HILUX. Key components include: SUPPORT SUB-ASSY, RADIATOR, BRACE, HOOD LOCK SUPPORT, BRACKET, BATTERY CARRIER MOUNTING, NO.1 RH, BRACKET, BATTERY CARRIER MOUNTING, NO.1 LH, PROTECTOR, HOOD SUPPORT ROD.
