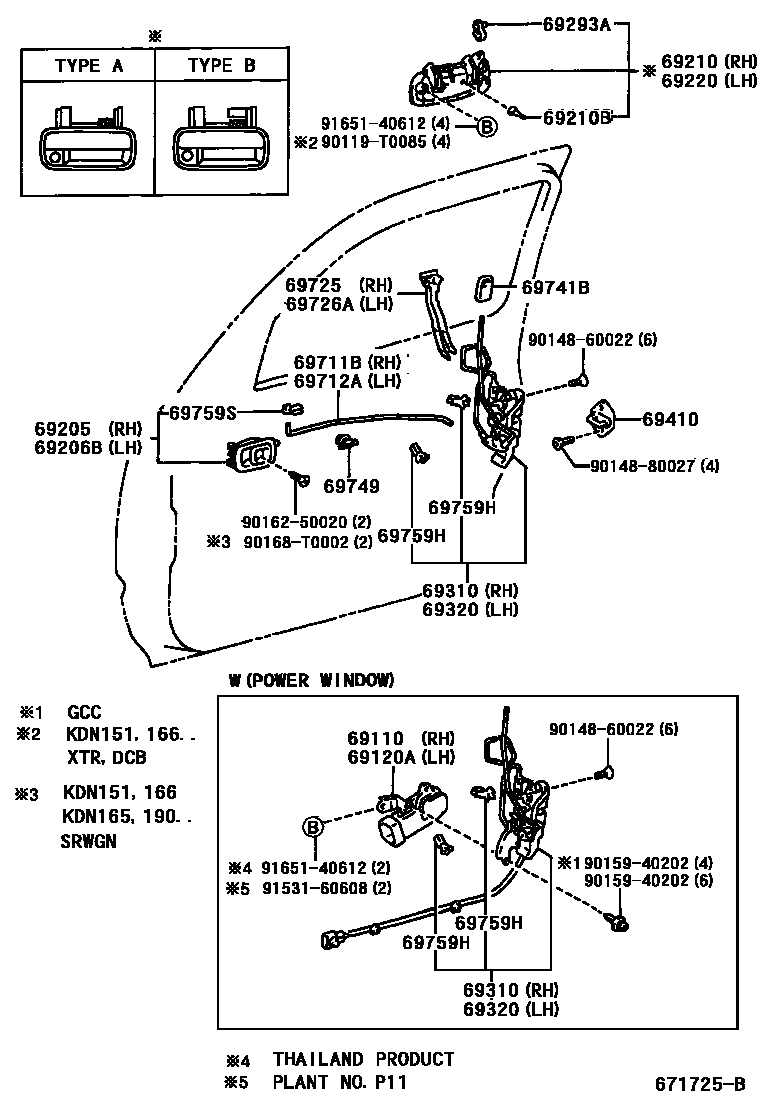

Toyota HILUX — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
main69110-04010iLN152,172..THXTR..DEFI;KZN165,LN152,167,192..(THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3)199909-200109
(L)
main69110-35040iRZN144,149..SR;LN166..DCB..GEN;LN166..LHD..SCB;LN192,RZN194..SA;LN145,RZN147,169..LHD..(GEN,TH)..CBU;RZN147,149..(DCB,THDCB)..DLX..(ARL,GCC,SA);LN146,147,152,167,17#,191,RZN148,154,16#,174,193..(DCB,THDCB,XTR)..(DSL,EFI)..(ARL,GCC,GEN,SA)199805-199908
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
main69120-04010iLN152,172..THXTR..DEFI;KZN165,LN152,167,192..(THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3)199909-200109
(L)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-04020-B0iLN152,167..TH..CBU;LN167..THDCB,THSCB;KZN165,LN147,150,192,RZN147,149,169..(THDCB,THSCB,XTR)..(CBU,IV3);LN145,152,155,157,172,RZN154,174..(DCB,SCB,THXTR)..(ARL,TH)..(CBU,IV3)200104-200109
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM4#
main69205-10070-B1iKZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA199708-200104
MD.MOON MIST,TRIM1#
RED,TRIM3#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-04020-B0iLN167..THDCB..DLX;LN167..THSCB..IV3;KDN155,LN145,150,155..TH;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR200109-200404
MD.MOON MIST,TRIM1#
SANDAL WOOD,TRIM4#
main69206-10070-B1iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU200108-200506
MD.MOON MIST,TRIM1#
RED,TRIM3#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-04010iLN145..DLX..TH;LN167..THDCB..DLX;LN167..THSCB..IV3;KDN150,155,LN150,155;LN147,152,172,RZN149,154..THDCB,THSCB,THXTR200109-200408
NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION
main69210-04020iLN167..TH..CBU;LN167..THDCB,THSCB;RZN149..THDCB..ATM;LN152,RZN169..(THDCB,XTR)..CBU;KZN165,LN147,150,192,RZN149..(THDCB,THSCB,XTR)..MTM..(CBU,IV3);LN145,152,155,157,172,RZN154,174..(DCB,SCB,THXTR)..(ARL,TH)..(CBU,IV3)200104-200109
PLATED,TYPE B:REFER TO ILLUSTRATION
NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION
main69210-35080iRZN148,168;RZN149,169..(DCB,THDCB)..ARL;LN147,167,RZN154,174,193..(DCB,THDCB,THXTR,XTR)..DLX;LN141,145,146,152,166,17#,191,RZN142,144,147,149,169..(CBR,DSL)..(ARL,GCC,GEN)199809-199908
PLATED,TYPE A:REFER TO ILLUSTRATION
NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION
PLATED,TYPE B:REFER TO ILLUSTRATION
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04014×4iKZN165,190,LN14#,152,16#,17#,19#,RZN14#,154,16#,174,19#,YN140..ARL,GCC,GEN,SA199909-200104
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-04010iLN167..THDCB..SR;LN167..THSCB..CBU;KZN165,RZN147,169,174..THDCB,THSCB,THXTR200109-200208
BLACK,TYPE B:REFER TO ILLUSTRATION
main69220-04020iKZN165..TH..CBU;LN167..THSCB..CBU;KZN165,LN167..THDCB..SR;RZN169,174..THDCB,THXTR200109-200208
*CR,TYPE B:REFER TO ILLUSTRATION
NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION
main69220-35080iRZN148,154,168,174,193;LN147,167,RZN149..MTM..IV3;LN147,167,RZN149,169..DCB..ARL;LN141,145,146,152,166,17#,191,RZN142,144,147,149,169..(CBR,DSL)..(ARL,GCC,GEN)199708-199809
*CR,TYPE A:REFER TO ILLUSTRATION
main69220-35130iLN147,167..SCB..IV3;LN167..DCB..DLX..ARL;LN147,152..(DCB,XTR)..ARL..CBU;KZN165,LN172,RZN149,154,VZN167,172..(DCB,SCB,XTR)..ARL200108-200502
BLACK,TYPE B:REFER TO ILLUSTRATION
main69220-35140iRZN149..DCB..ATM;RZN169..DCB..ARL;RZN149..THSCB..MTM..IV3;LN172,RZN149..(DCB,SCB,XTR)..MTM;LN147,167,172..(SCB,THSCB,THXTR)..IV3;LN147,167,RZN148,154,168,174,193..(DCB,SCB,XTR)..(ARL,GEN)..CBU;LN141,145,146,152,166,171,191,RZN142,144,147,169..(CBR,DSL)..(ARL,GCC,GEN)199908-199909
*CR,TYPE B:REFER TO ILLUSTRATION
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(PROTECTOR)
W(POWER DOOR LOCK & PROTECTOR); W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
main69310-35420iLN145..SR; LN146,RZN147,149..DCB..GCC; LN166,RZN169..LHD..DCB..GEN;LN145,146,191,RZN147,148,149,168,193..LHD..DCB..MTM..(GCC,GEN); RZN144,149..SCB..SR; RZN144,149..SCB..SR;LN145,166,171,RZN147,169..LHD..(SCB,XTR)..GEN..CBU200109-200203
W(POWER DOOR LOCK & PROTECTOR)
main69310-35430iLN152,172..THXTR..DEFI;KZN190,LN152,172,192,RZN154,174,194..(SCB,XTR)..(ARL,SA);KZN165,LN152,167,192..(SCB,THSCB,XTR)..SR..(DEFI,TDE)..(CBU,IV3)199808-200109
W(POWER DOOR LOCK & PROTECTOR)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & PROTECTOR)
69320LOCK ASSY, FRONT DOOR, LH
SINGAPORE SPEC; W(POWER WINDOW)
main69320-35400iLN145,RZN144,168..SR;RZN147..LHD..SCB..GEN;RZN168..DCB..DLX..GEN;LN166,RZN169..LHD..GEN;RZN147,148..LHD..DCB..(GCC,GEN);LN145,146,171,191,RZN149,193..LHD..MTM..(GCC,GEN)..CBU200109
W(POWER DOOR LOCK & PROTECTOR)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-87001×2iLN145..DCB..GEN;LN150,RZN194..SR;LN152..DEFI..IV3;LN145..LHD..DLX..TH;KZN165..SR..(ARL,SA);LN167..DSL..(CBU,IV3);RZN169..DLX..(ARL,SA);RZN149..DLX..EFI..(ARL,GEN);KZN165,LN145..SCB..DLX..(CBU,IV3);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN192,RZN144,149,154,169..(CBR,DEFI,DSL)..CBU;KZN165,LN152..(THXTR,XTR)..(DSL,TDE)..(CBU,IV3);LN152,167,RZN169..(DCB,XTR)..SR..(DEFI,EFI)..(SA,TH)..CBU;KZN165,LN167,RZN154..(DCB,THXTR,XTR)..DLX..(DEFI,EFI,TDE)..ARL..CBU;KZN190,LN140,141,146,147,155,157,166,17#,191,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA,TH)199708
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
main69725-35030iLN167..(SCB,THSCB)..ARL..CBU;KZN165..(THSCB,XTR)..(CBU,IV3);RZN147,169,174..(SCB,THSCB,THXTR,XTR)..ARL200108-200208
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
main69726-35040iLN167..THDCB..DLX;LN147,RZN149..THDCB;KDN145,16#,190,LN145..(DCB,SRWGN)..TH200108-200408
69741BKNOB, FRONT DOOR LOCK CONTROL
main69741-12040-B1×2iLN152..IV3;RZN169..DCB..SA;RZN169..DLX..(ARL,SA);KZN165..(THDCB,THSCB)..SR;LN167..DCB..DLX..DEFI..ARL;RZN149..DLX..EFI..(ARL,GEN);LN167..(SCB,THDCB,THSCB)..DLX..DEFI;LN167,RZN154,194..(DSL,EFI)..(ARL,SA);KZN165,RZN144,149,154,169..(DCB,SCB,XTR)..(CBR,TDE)..(ARL,GCC,GEN,SA);KZN190,LN14#,166,17#,19#,RZN142,147,148,168,174,193,YN140..DLX..(ARL,GCC,GEN,SA)199708-200208
MD.MOON MIST,TRIM1#
RED,TRIM3#
69749CLAMP, FRONT DOOR LOCK LINK
main69749-12070×2iLN145..LHD..IV3;LN145,166,171,191,RZN142,147,148,154,16#,193..GEN..CBU200108-200506
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
main69759-04020iLN167..THSCB..CBU;RZN147,169,174..THSCB,THXTR;KZN165..(THSCB,XTR)..(CBU,IV3)200109-200208
BROWN
main69759-04030iLN167..THSCB..CBU;RZN147,169,174..THSCB,THXTR;KZN165..(THSCB,XTR)..(CBU,IV3)200109-200208
NATURAL
main69759-04040iLN167..THSCB..IV3;LN147,152,172,RZN149,154..THSCB,THXTR;KDN15#,16#,190,LN150,155..(SCB,XTR)..CBU200109-200408
YELLOW
main69759-04050iLN152..DEFI..CBU;LN152,157,172..(SCB,THXTR)..DEFI;KZN165,LN147,167,192..(THSCB,XTR)..(DEFI,TDE)..(CBU,IV3)199909-200109
(L),BLUE
YELLOW
BROWN
NATURAL
BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
main69759-20060iKZN190..SCB..SR;LN145..LHD..IV3;LN167..SCB..CBU;RZN148,149..SCB..(CO,GCC);LN145,RZN148,154..(SCB,XTR)..(GEN,SA)..CBU;LN140,141,166,171,192,RZN142,144,147,16#,174,194..(SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA); RZN169..DCB;RZN149..DCB..(CO,GCC);KZN190,LN167..DCB..SR..(ARL,SA);KDN165,190,KZN165,LN145,146,16#,191,RZN147,148,168,19#..DCB..(CO,GCC,GEN,MA,SA)200108
LH
main69759-20070iKZN190..SCB..SR;LN145..LHD..IV3;LN167..SCB..CBU;RZN148,149..SCB..(CO,GCC);LN145,RZN148,154..(SCB,XTR)..(GEN,SA)..CBU;LN140,141,166,171,192,RZN142,144,147,16#,174,194..(SCB,XTR)..(ARL,CO,GCC,GEN,MA,SA); RZN169..DCB;RZN149..DCB..(CO,GCC);KZN190,LN167..DCB..SR..(ARL,SA);KDN165,190,KZN165,LN145,146,16#,191,RZN147,148,168,19#..DCB..(CO,GCC,GEN,MA,SA)200108
RH
90119T0085
main90119-T0085
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9016250020
main90162-50020
90168T0002
main90168-T0002
9153160608
main91531-60608
9165140612
main91651-40612
27 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota HILUX
This section contains 27 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota HILUX. Key components include: ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH.
