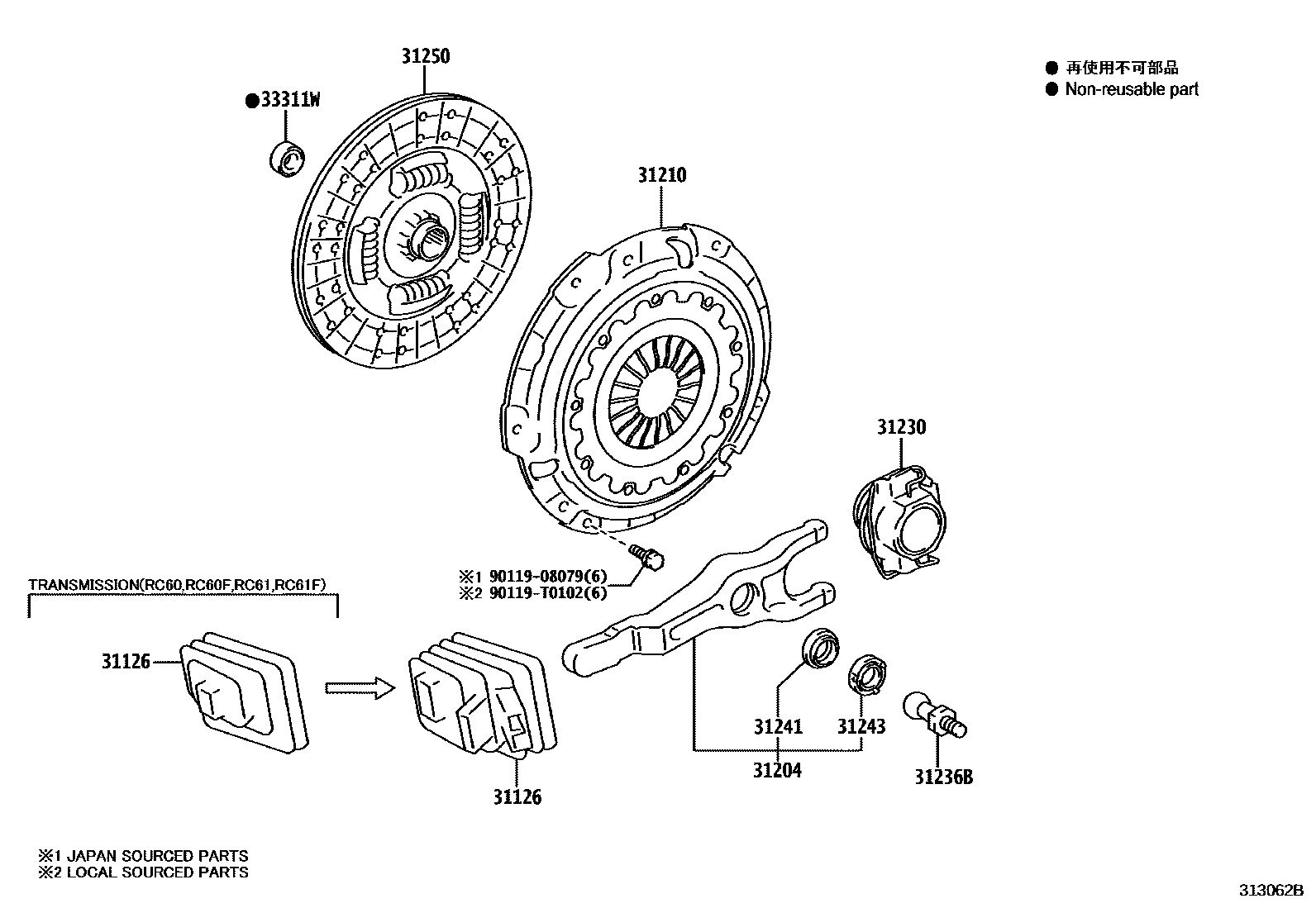

Toyota HILUX — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
TYPE B:REFER 33-01,TYPE C:REFER 33-01
TYPE A:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-0K110iGUN126,KUN122,126..MTM;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN);GUN112,122,123,125,KUN112,125,13#..MTM..(ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,SA,TH,VN)201505-202105
TYPE B:REFER 33-01
TYPE A:REFER 33-01
31210COVER ASSY, CLUTCH
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
31230BEARING ASSY, CLUTCH RELEASE
main31230-71050iGUN112,12#,13#,KUN125,126,13#..MTM; GUN112,122,123; GUN126..6F..TH; GUN126..RHD..6F..H..GEN; GUN126..RHD..6F..M..GEN;GUN126..(TDC,TXT)..6F..S..ARL201505-201805
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01,TYPE A:REFER 33-01; TYPE B:REFER 33-01,TYPE A:REFER 33-01; TYPE C:REFER 33-01; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
main31230-71051iGUN112,122,123,125,126,13#..MTM; GUN112,122,123..5F; GUN126..6F..TH; GUN126..RHD..6F..H..GEN; GUN126..RHD..6F..M..GEN;GUN126..(TDC,TXT)..6F..S..ARL201806-201810
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01; TOYOTA STOP & START SYSTEM-WITH,TYPE B:REFER 33-01,TYPE A:REFER 33-01; TYPE B:REFER 33-01,TYPE A:REFER 33-01; TYPE C:REFER 33-01; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01; VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),TYPE B:REFER 33-01,TYPE A:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
TYPE B:REFER 33-01,TYPE C:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE C:REFER 33-01
31236BSUPPORT, RELEASE FORK
main31236-0K010iGUN122,125,126,KUN125,126,13#..6F;GUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202105
TYPE B:REFER 33-01
TYPE B:REFER 33-01,TYPE C:REFER 33-01
TYPE C:REFER 33-01
TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01
31241SEAL, CLUTCH RELEASE FORK DUST
main31241-71010iGUN122..TDC..GEN;GUN112,122..LHD..(L,S)..DCR;GUN122..(SDC,SSC,TSC,TXT)..5F..X201505-201901
TYPE A:REFER 33-01
31243COLLAR, CLUTCH RELEASE FORK
main31243-0K010iGUN122..TDC..GEN;GUN112,122..LHD..(L,S)..DCR;GUN122..(SDC,SSC,TSC,TXT)..5F..X201505-201901
TYPE A:REFER 33-01
31250DISC ASSY, CLUTCH
main31250-0K280iKUN125..6F..IDN;KUN126,136..(PDC,PSC,TDC)..6F;GUN126,135,KUN135..6F..(M,S)..VN201505-201801
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
33311WBEARING (FOR INPUT SHAFT)
main90363-T0006iKUN12#,135..MTM;GUN112,122,123,125,126,13#,KUN112,136..(ADC,ASC,KDC,KSC,MDC,MSC,PDC,PSC,TDC,TSC,TXT)..MTM201505-202105
9011908079
main90119-08079
90119T0102
main90119-T0102
11 parts on this diagram · 6 diagrams in section
CLUTCH & RELEASE FORK for Toyota HILUX
This section contains 14 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota HILUX. Key components include: CLUTCH SET, COVER & DISC, BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE.
