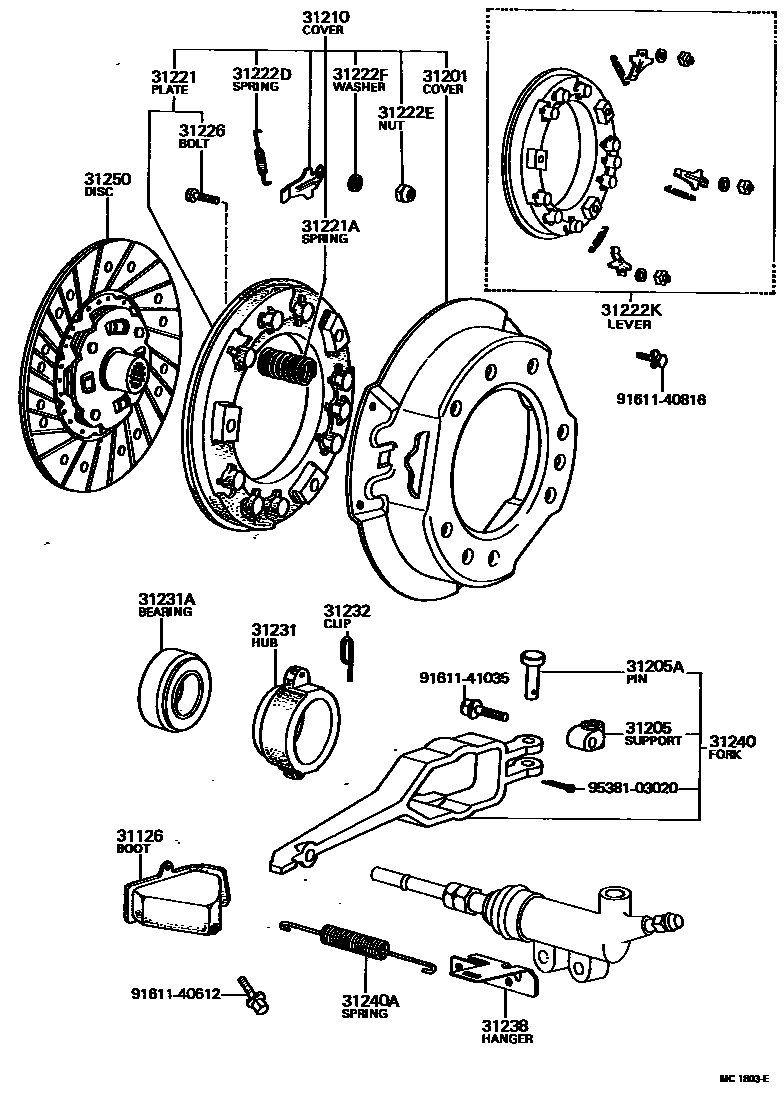

Toyota HILUX — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31201COVER SUB-ASSY, CLUTCH
31205SUPPORT SUB-ASSY, RELEASE FORK
31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)
31210COVER ASSY, CLUTCH
31221PLATE, CLUTCH PRESSURE
31221ASPRING, COMPRESSION(FOR CLUTCH)
31222DSPRING, TENSION(FOR CLUTCH PRESSURE LEVER)
31222ENUT(FOR CLUTCH PRESSURE LEVER ADJUST)
31222FWASHER(FOR CLUTCH PRESSURE LEVER)
31222KLEVER KIT, CLUTCH PRESSURE
31226BOLT, CLUTCH PRESSURE PLATE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
40TRK39-1SB
40TMK29-1
40TRK39-1SB
31232CLIP OR SPRING, RELEASE BEARING HUB
31238HANGER, RELEASE FORK RETRACTING SPRING
31240FORK ASSY, CLUTCH RELEASE
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
31250DISC ASSY, CLUTCH
9161140612
main91611-40612
9161140816
main91611-40816
9161141035
main91611-41035
9538103020
main95381-03020
23 parts on this diagram · 3 diagrams in section
CLUTCH & RELEASE FORK for Toyota HILUX
This section contains 32 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota HILUX. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, SUPPORT SUB-ASSY, RELEASE FORK, PIN, W/SERRATION(FOR RELEASE FORK SUPPORT), COVER ASSY, CLUTCH.
