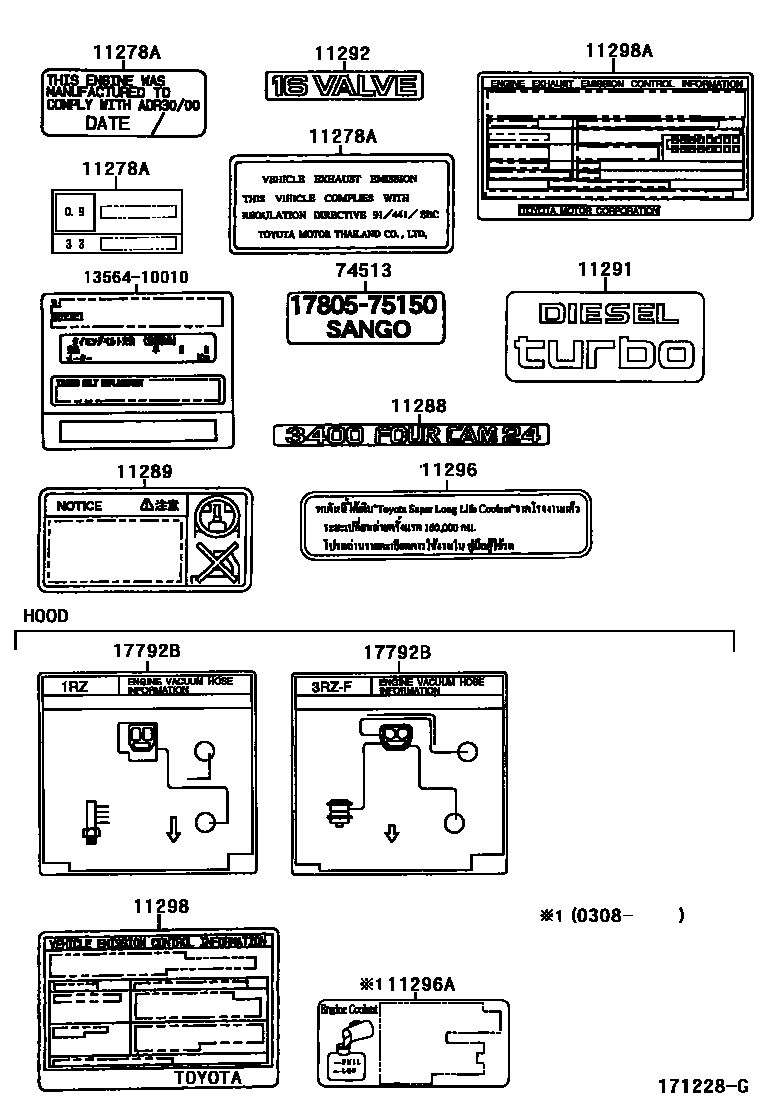

Toyota HILUX — CAUTION PLATE & NAME PLATE (ENGINE)
11278ALABEL, ENGINE EMISSION COMPLIANCE INFORMATION
11288PLATE, ENGINE SYSTEM
11289PLATE, SPARK PLUG CAUTION
11291PLATE, ENGINE NAME
main11291-67010i1KZTE..KZN165..(THDCB,THSCB,XTR)..SR;1KZTE..KZN165,190..(DCB,SCB)..(ARL,SA)199909-200203
11292PLATE, ENGINE NAME, NO.2
11296PLATE, TIMING BELT CAUTION
11296ALABEL, ENGINE SERVICE INFORMATION
main11296-27020i2L,3L..LN145,166..RHD..GEN;1RZ..RZN147..RHD..SCB..GEN;2RZFE,3RZFE..RZN148,149,168..DLX..GEN; 3L,1RZ,2RZFE,3RZFE..LN141,146,166,RZN14#,16#..CO,GCC200308
11298PLATE, EMISSION CONTROL INFORMATION
11298ALABEL, EMISSION CONTROL INFORMATION
17792BLABEL, ENGINE VACUUM HOSE INFORMATION
CHINA SPEC
74513LABEL, IDENTIFICATION NUMBER INFORMATION
main74513-35230iRZN169..SA;RZN154,194..RHD;RZN169..DLX..ARL;RZN148,149,168,174,193..DLX..EFI..(ARL,GEN)199708-200203
1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010
12 parts on this diagram · 1 diagram in section
CAUTION PLATE & NAME PLATE (ENGINE) for Toyota HILUX
This section contains 12 genuine Toyota parts for the CAUTION PLATE & NAME PLATE (ENGINE) system of the Toyota HILUX. Key components include: LABEL, ENGINE EMISSION COMPLIANCE INFORMATION, PLATE, ENGINE SYSTEM, PLATE, SPARK PLUG CAUTION, PLATE, ENGINE NAME, PLATE, ENGINE NAME, NO.2.
