Toyota HILUX — ARMREST & VISOR

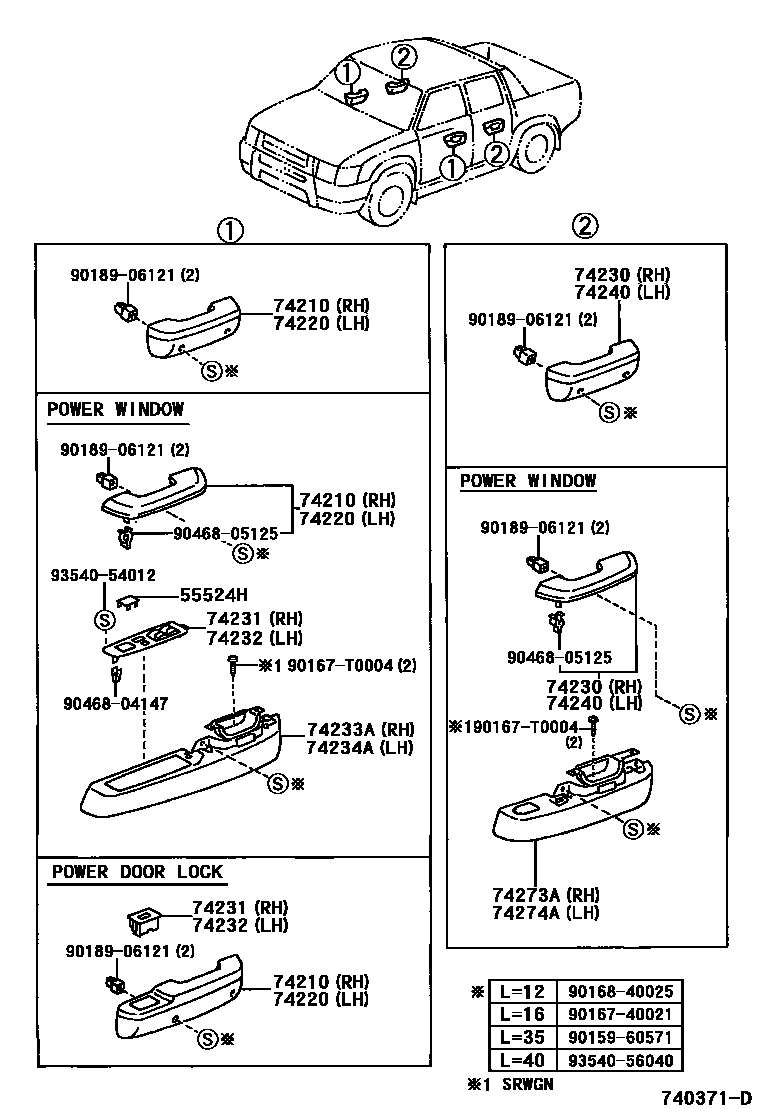

Parts diagram
55524HCOVER, SWITCH BASE HOLE
main55524-35010-C0i200109-200203
BLACK,TRIM1#
74210ARMREST ASSY, FRONT, RH
main74210-35090i200208-200408
main74210-35090-B1i200208-200501
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main74210-35090-D1i200108-200508
W(POWER WINDOW),RED,TRIM3#
main74210-35110-B0i199708
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74210-35120-B0i200009-200108
ARMREST=FABRIC & W(POWER WINDOW),MEDIUM MOONMIST,TRIM1#
main74210-35190-B0i200108-200506
ARMREST=FABRIC & W(POWER WINDOW),MOONMIST,TRIM1#
main74210-89105-B1i199708
MD.MOON MIST,TRIM1#
main74210-89105-D3i199708-200108
RED,TRIM3#
main74210-89106-B1i200108-200508
MD.MOON MIST,TRIM1#
main74210-89106-D3i200108-200508
RED,TRIM3#
74220ARMREST ASSY, FRONT, LH
main74210-89105-B1i199708
MD.MOON MIST,TRIM1#
main74210-89105-D3i200108-200508
RED,TRIM3#
main74210-89106-B1i200009
SR PACKAGE,MD.MOON MIST,TRIM1#
main74210-89106-D3i199708-200108
RED,TRIM3#
main74220-35090i200110-200409
main74220-35090-B1i200108-200208
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main74220-35090-D1i200108-200508
W(POWER WINDOW),RED,TRIM3#
main74220-35110-B0i200108-200506
W(POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74220-35120-B0i199805-200009
ARMREST=FABRIC & W(POWER WINDOW),MEDIUM MOONMIST,TRIM1#
main74220-35190-B0i200208-200506
ARMREST=FABRIC & W(POWER WINDOW),MOONMIST,TRIM1#
74230ARMREST ASSY, REAR, RH
main74210-89105-B1i200108-200506
MD.MOON MIST,TRIM1#
main74210-89105-D3i199708-200108
RED,TRIM3#
main74210-89106-B1i200108
MD.MOON MIST,TRIM1#
main74210-89106-D3i200108
RED,TRIM3#
main74250-35100-B1i200407
SPECIAL EDITION(AUSTRALIA),MID.MOON MIST,TRIM1#
main74250-35100-D1i200108
W(POWER WINDOW),RED,TRIM3#
main74250-35110-B0i200009-200108
ARMREST=FABRIC & W(POWER WINDOW),MEDIUM MOONMIST,TRIM1#
main74250-35180-B0i200108-200506
ARMREST=FABRIC & W(POWER WINDOW),MOONMIST,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-35030-C0i200110-200208
BLACK,TRIM1#; BLACK,TRIM1#,4#
main74231-35040-C0i200208-200502
W(POWER WINDOW),BLACK,TRIM1#
main74231-35050-C0i200108-200506
W(POWER DOOR LOCK),BLACK,TRIM1#
main74232-35030-C0i200108
BLACK,TRIM1#; BLACK,TRIM1#,3#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74231-35050-C0i200110
W(POWER DOOR LOCK),BLACK,TRIM1#
main74232-35010-C0i200108-200506
BLACK,TRIM1#
main74232-35030-C0i200110-200203
W(POWER WINDOW),BLACK,TRIM1#
main74232-35040-C0i200108-200408
BLACK,TRIM1#
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74233-35030-B0i200108-200408
MD.MOON MIST,TRIM1#
main74233-35030-D0i199708-200108
RED,TRIM3#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74234-35030-B0i200208
MD.MOON MIST,TRIM1#
main74234-35030-D0i200108
RED,TRIM3#
74240ARMREST ASSY, REAR, LH
main74210-89105-B1i200108-200503
MD.MOON MIST,TRIM1#
main74210-89105-D3i200108
RED,TRIM3#
main74210-89106-B1i200108
MD.MOON MIST,TRIM1#
main74210-89106-D3i200108
RED,TRIM3#
main74260-35010-B1i200108-200504
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main74260-35010-D1i200108
W(POWER WINDOW),RED,TRIM3#
main74260-35100-B0i200009-200108
ARMREST=FABRIC & W(POWER WINDOW),MEDIUM MOONMIST,TRIM1#
main74260-35170-B0i200108-200501
ARMREST=FABRIC & W(POWER WINDOW),MOONMIST,TRIM1#
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
main74273-35010-B0i200208-200502
MD.MOON MIST,TRIM1#
main74273-35010-D0i200108
RED,TRIM3#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
main74274-35020-B0i199805-199908
MD.MOON MIST,TRIM1#
main74274-35020-D0i200108
RED,TRIM3#
9015960571
main90159-60571
9016740021
main90167-40021
90167T0004
main90167-T0004
9016840025
main90168-40025
9018906121
main90189-06121
9046804147
main90468-04147
9046805125
main90468-05125
9354054012
main93540-54012
9354056040
main93540-56040

20 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota HILUX

This section contains 33 genuine Toyota parts for the ARMREST & VISOR system of the Toyota HILUX. Key components include: COVER, SWITCH BASE HOLE, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH.
