Toyota HILUX — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78100LINK ASSY, ACCELERATOR
main78100-35071iLN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,16#,17#,19#..DSL..(ARL,GCC,GEN,SA,TH)199708
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
main78104-22140iLN150..SR;LN145..SCB;LN145..DCB..GEN;LN145..LHD..DLX..TH;LN140,141,146,147,152,155,157,16#,17#,19#..DSL..(ARL,GCC,GEN,SA,TH)199708
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78110CBUSH (FOR ACCELERATOR PEDAL ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
PLANT TMT
PLANT TMT
main78180-04130iLN152..ATM..DEFI;LN152,157,192..DSL..TH;LN167..(THDCB,THSCB,XTR)..DSL;LN147,152,172..(THDCB,THSCB,THXTR)..DSL200008-200108
78186ACLAMP, ACCELERATOR CONTROL CABLE, NO.3
78188CCLAMP, ACCELERATOR CONTROL CABLE, NO.5
NO.1
NO.2
NO.3
78401CABLE SUB-ASSY, THROTTLE CONTROL
78411AKNOB, THROTTLE CONTROL CABLE
main78411-89105iLN155..LHD;LN145..DCB..TH;LN145..LHD..IV3;LN140,141,146,150,171,191..DLX;LN145,166..(GCC,GEN,MA,SA)..CBU200108-200508
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-14110
9008017130
main90080-17130
9011608039
main90116-08039
9011906775
main90119-06775
90119T0053
main90119-T0053
9017011006
main90170-11006
9017908150
main90179-08150
9020107008
main90201-07008
9046312011
main90463-12011
9046912010
main90469-12010
91511B0812
main91511-B0812
9161160814
main91611-60814
91611G0612
main91611-G0612
91621J0814
main91621-J0814

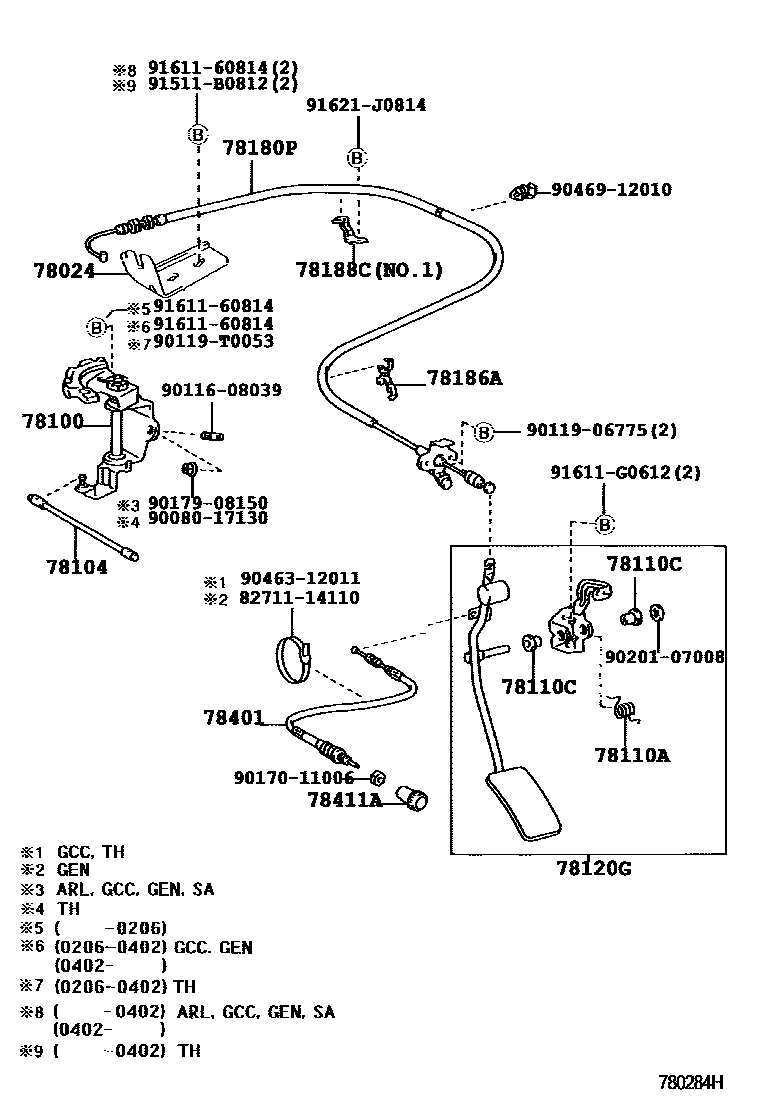

25 parts on this diagram · 14 diagrams in section
ACCELERATOR LINK for Toyota HILUX
This section contains 57 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD).
