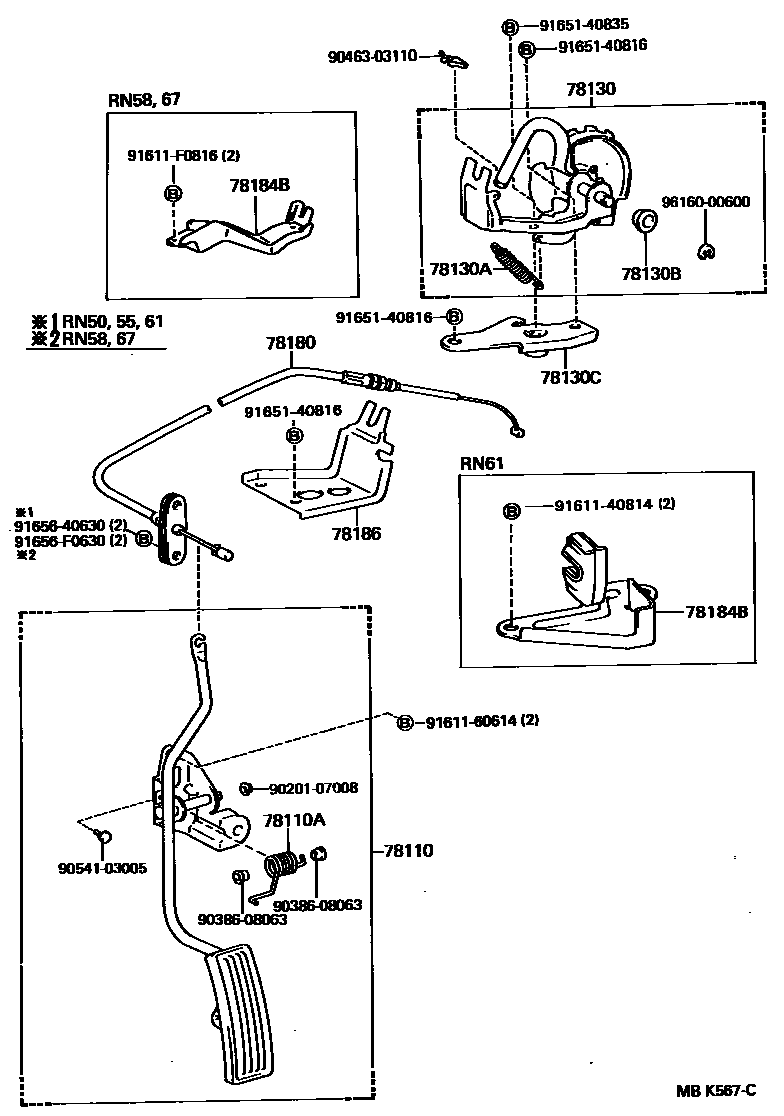

Toyota HILUX — ACCELERATOR LINK
78110ROD ASSY, ACCELERATOR PEDAL
W/THROTTLE BUTTON
W/THROTTLE BUTTON
W/THROTTLE BUTTON
W/THROTTLE BUTTON
main78120-89130iYN58..4F;YN58..SR5,STD;YN50,51,55,56,57..RHD..(4F,4FC,4H,5F); YN60,63,65,67..RHD..(ARL,EUR,GEN)198506-199807
W/THROTTLE BUTTON
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
main90508-14066iYN58..4F;YN58..SR5,STD;YN50,51,55,56,57..RHD..(4F,4FC,4H,5F); YN63,65,67..RHD..(ARL,EUR,GEN)198604-199807
W/THROTTLE BUTTON
78130BELLCRANK ASSY, ACCELERATOR
main78130-89110iYN58..4F;YN58..SR5..SA;YN50,51,52,55,56,57,60,65..(4F,4FC,4H,5F)..(GEN,ME,SA)198308-199807
78130ASPRING (FOR ACCELERATOR ROD RETURN)
78130BBUSH, ACCELERATOR BELLCRANK
78130CBRACKET, ACCELERATOR BELLCRANK
78180WIRE ASSY, ACCELERATOR
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9020107008
main90201-07008
9038608063
main90386-08063
9046303110
main90463-03110
9054103005
main90541-03005
9161140814
main91611-40814
9161160614
main91611-60614
91611F0816
main91611-F0816
9165140816
main91651-40816
9165140835
main91651-40835
9165640630
main91656-40630
91656F0630
main91656-F0630
9616000600
main96160-00600
21 parts on this diagram · 12 diagrams in section
ACCELERATOR LINK for Toyota HILUX
This section contains 67 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: LINK, ACCELERATOR, BUSH (FOR ACCELERATOR LINK), SPRING, TORSION (FOR ACCELERATOR LINK), ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD ASSY, ACCELERATOR PEDAL.
