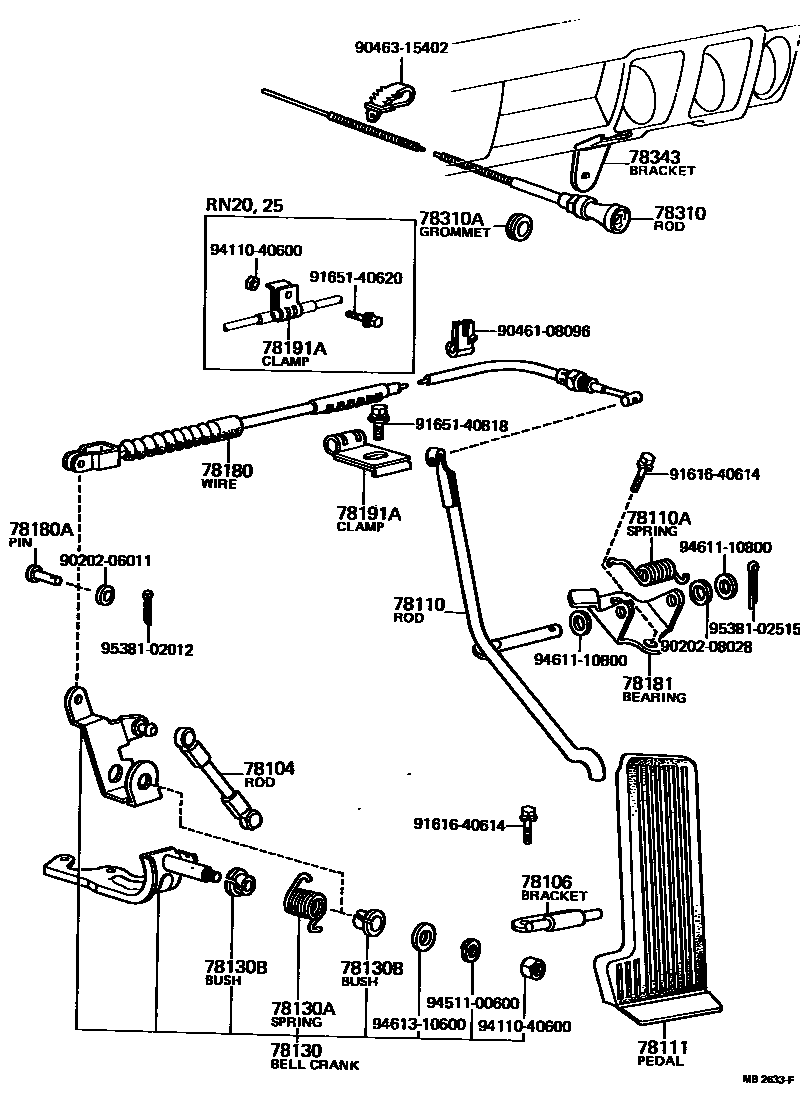

Toyota HILUX — ACCELERATOR LINK
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78130BELLCRANK ASSY, ACCELERATOR
78130ASPRING (FOR ACCELERATOR ROD RETURN)
78130BBUSH, ACCELERATOR BELLCRANK
78180WIRE ASSY, ACCELERATOR
78180APIN, ACCELERATOR WIRE SET
78181BEARING, ACCELERATOR PEDAL ROD SUPPORT
78191BRACKET, ACCELERATOR WIRE SUPPORT
78191ACLAMP (FOR ACCELERATOR WIRE SET)
78310AGROMMET, CHOKE CABLE
78343BRACKET, CHOKE ROD
9020206011
main90202-06011
9020208028
main90202-08028
9046108096
main90461-08096
9046315402
main90463-15402
9161640614
main91616-40614
9165140620
main91651-40620
9165140818
main91651-40818
9411040600
main94110-40600
9451100600
main94511-00600
9461110800
main94611-10800
9461310600
main94613-10600
9538102012
main95381-02012
9538102515
main95381-02515
29 parts on this diagram · 7 diagrams in section
ACCELERATOR LINK for Toyota HILUX
This section contains 54 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota HILUX. Key components include: RETAINER, ACCELERATOR TORQUE ROD SUPPORT, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, CLIP (FOR ACCELERATOR TORQUE ROD).
