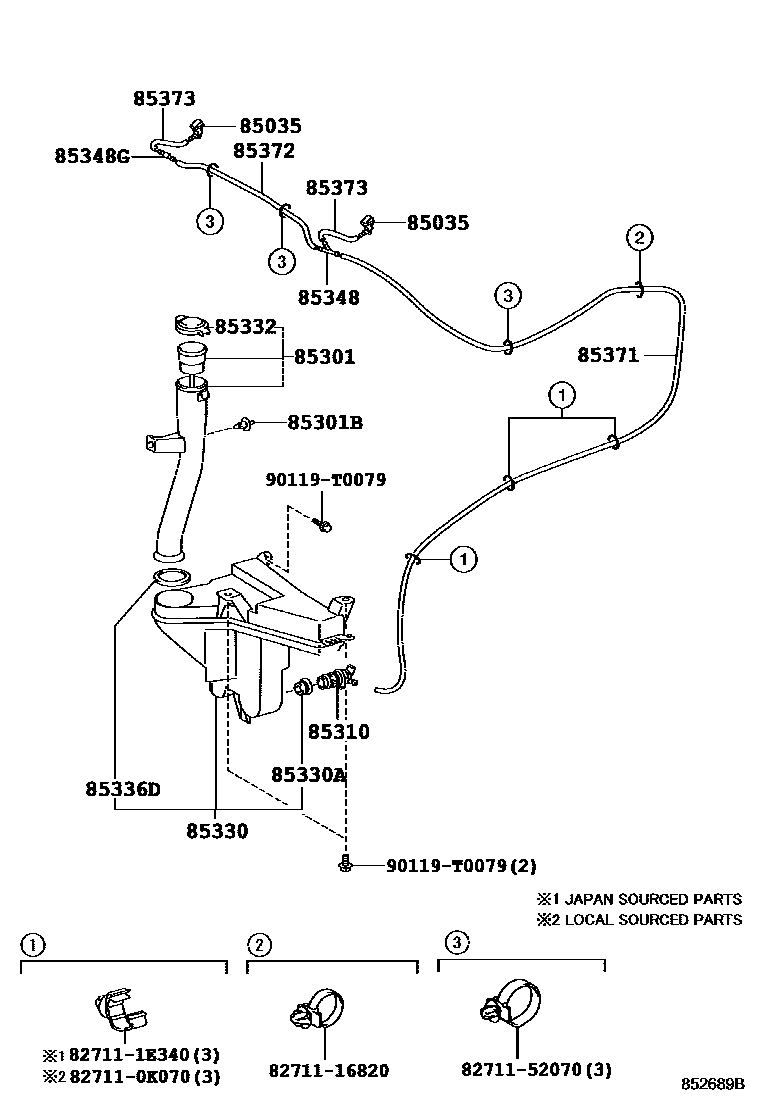

Toyota HILUX — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K010×2i201107-201512

85301INLET SUB-ASSY, WASHER

main85301-0K010i201107-201512

85301BCLIP, WASHER

main90467-07076-A0i201107-201512

IVORY

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71010i201107-201512

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K010i201107-201512

main85355-71011i201107-201512

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0K020i201107-201512

main85336-60300i201107-201512

85332CAP, WINDSHIELD WASHER JAR

main85316-0K010i201107-201512

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0K010i201107-201512

main85336-42190i201107-201512

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-0K051i201107-201512

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02330i201107-201512

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33108i201107-201512

L=1910

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201107-201512

L=1450(*H,L=530)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i201107-201512

L=1450(*H,L=120)

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

827111E340WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E340

8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52070

90119T0079

main90119-T0079

18 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, CLIP, WASHER.
