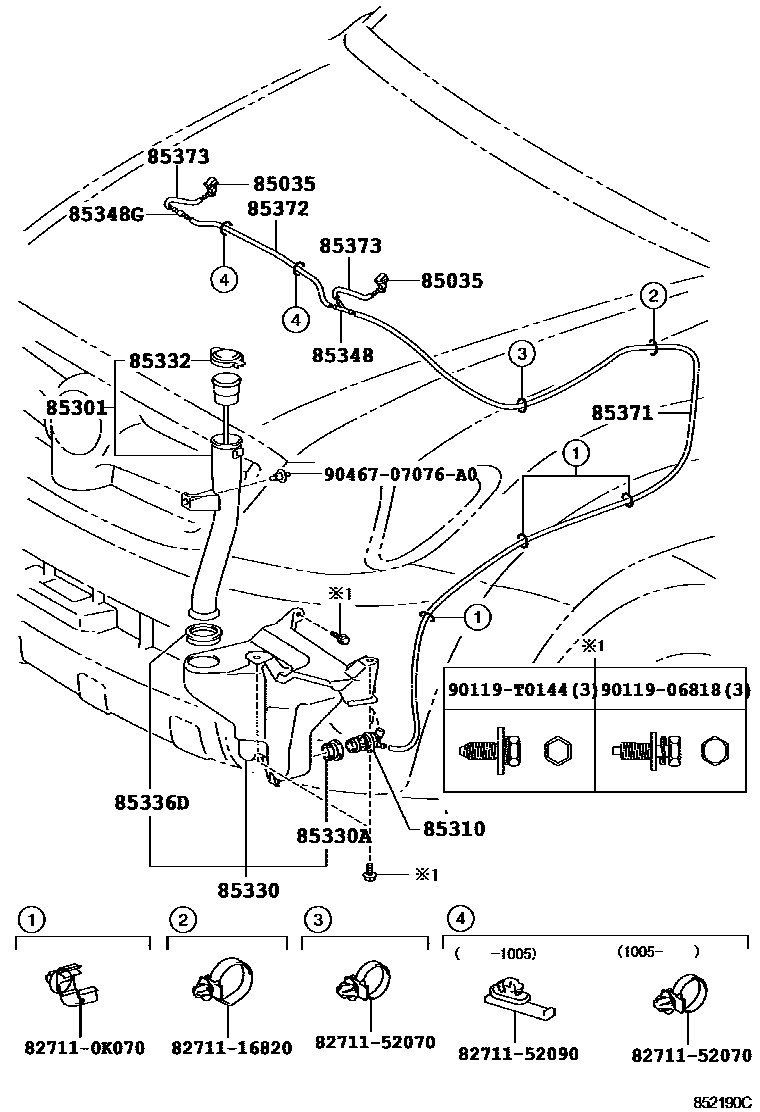

Toyota HILUX — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0K010×2i200507-200810

85301INLET SUB-ASSY, WASHER

main85301-0K010i200507-200810

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-71010i200507-200810

85330JAR ASSY, WINDSHIELD WASHER

main85315-0K010i200808-201107

main85355-71010i200808-201102

main85355-71011i201102-201108

85330ABUSH, WINDSHIELD WASHER JAR

main85336-0K020i200808-201108

main85336-60300i200808-201102

85332CAP, WINDSHIELD WASHER JAR

main85316-0K010i200808-201108

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0K010i200808-201107

main85336-42190i200808-201102

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250i200507-200810

main85378-0K051i200902-201107

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200808-200902

main85375-02330i200902-201107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33108i200902-201107

L=1910

main90099-33803i200808-200902

L=1910

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33106i200902-201108

L=510

main90099-33080i200507-200810

L=1450(*H,L=510)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i200808-201108

L=1450(*H,L=120)

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

8271152070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52070

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906818

main90119-06818

90119T0144

main90119-T0144

9046707076A0

main90467-07076A0

19 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota HILUX

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
