Toyota HILUX — WINDSHIELD WASHER
85031BVALVE SUB-ASSY, WASHER
85035NOZZLE SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
TYPE B OR TYPE D:REFER TO ILLUSTRATION
TYPE A OR TYPE C:REFER TO ILLUSTRATION
85330JAR ASSY, WINDSHIELD WASHER
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE D:REFER TO ILLUSTRATION,W(HEADLAMP CLEANER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
TYPE B:REFER TO ILLUSTRATION
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1800(*H,L=100)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1000(*H,L=140),TYPE B:REFER TO ILLUSTRATION
L=1800(*H,L=140); L=1800(*H,L=460)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1000(*H,L=400)
L=1800(*H,L=300),TYPE B:REFER TO ILLUSTRATION
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90446-07001iLN165..RHD;LN165..LHD..DCB;LN145,150,170,190,RZN168,173; RZN168..DCB;LN145,150,165,170,190,RZN173199708-200108
L=1800(*H,L=250); L=1800(*H,L=310)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90446-07001iLN165..RHD;LN165..LHD..DCB;LN145,150,170,190,RZN168,173; RZN168..DCB;LN145,150,165,170,190,RZN173199708-200108
L=1800(*H,L=410),TYPE B:REFER TO ILLUSTRATION; L=1800(*H,L=650)
85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7
L=1800(*H,L=650)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=170)
9011906698
main90119-06698
9048025025
main90480-25025

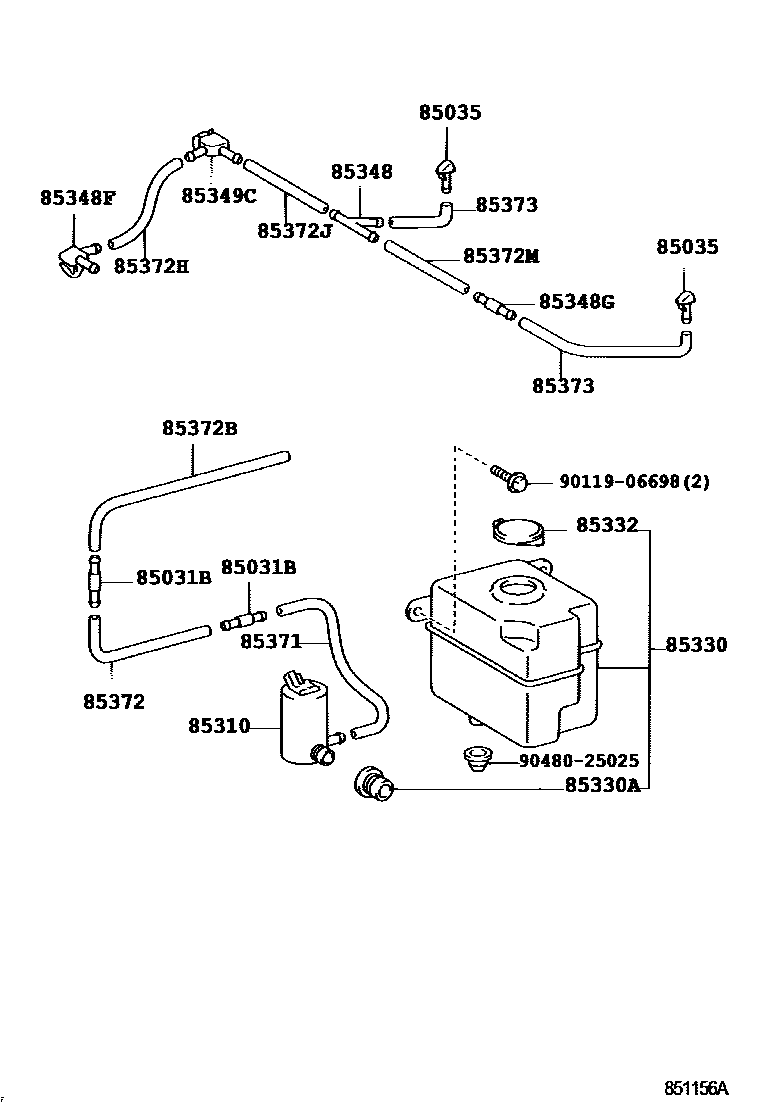

19 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota HILUX
This section contains 33 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota HILUX. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
