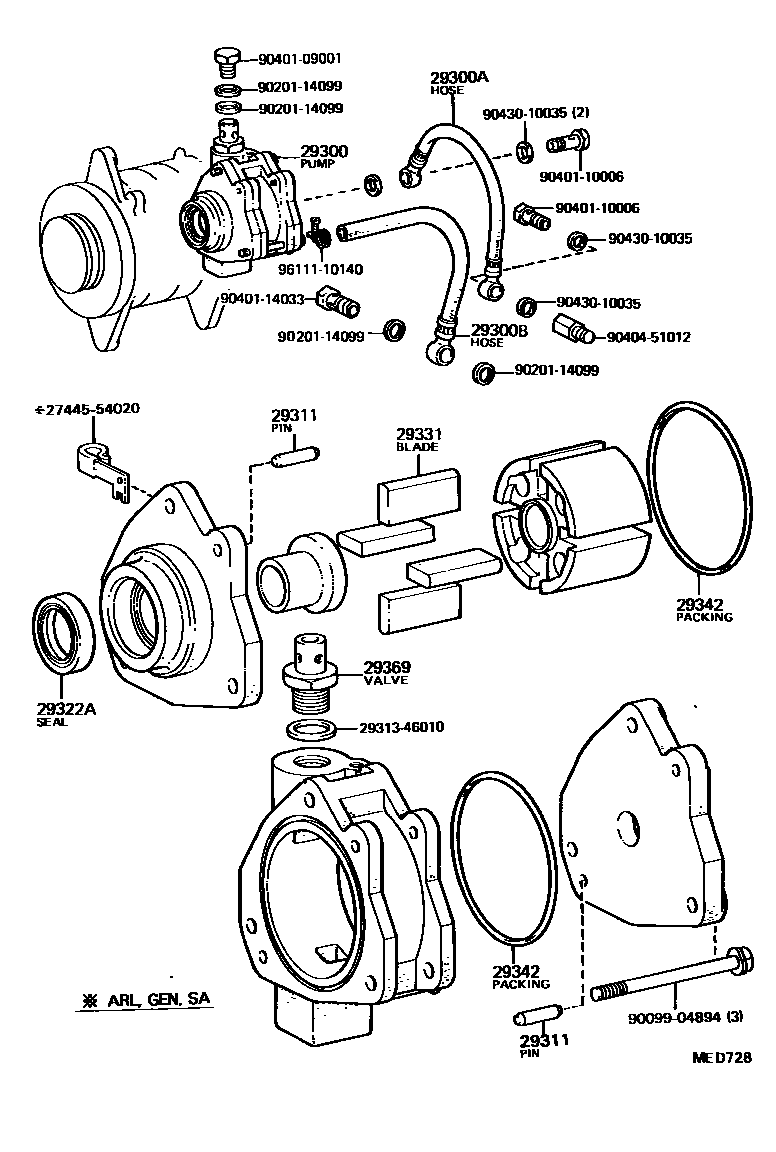

Toyota HILUX — VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-54021iL..LN50,55..ARL,GEN,SA198308-198408

main29300-54040iL..LN55..EUR198308-198408

sub29300-54021

main29300-54050i2L..LN51,56,6#198308-199101

main29300-54051i2L..LN5#,65199101-199508

main29300-54091i2L,3L..LN5#,67199508-199807

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02056iL..LN50,55198308-198408

main90923-02077i2L..LN51,56,60,61,65198308-199807

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i2L..LN51,56,61,65198807-199807

main90923-02052iL..LN50,55198308-198408

main90923-02089i2L..LN51,56,6#198308-198807

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i2L..LN51,56,60,61,65198308-199807

main90099-08082iL..LN50,55198308-198408

sub29311-76010

29322ASEAL, VACUUM PUMP OIL

main90099-15017iL..LN50,55198308-198408

29331BLADE, VACUUM PUMP, A

main29331-56010iL..LN50,55198308-198408

main29331-56070i2L..LN51,56,60,61,65198308-199807

29342PACKING, VACUUM PUMP

main96740-02063iL,2L..LN5#,6#198308-199807

29369VALVE SUB-ASSY, CHECK

main29369-56070i2L..LN51,56,60,61,65198308-199807

main29369-68030iL..LN50,55198308-198408

sub29369-54010

2744554020

main27445-54020

2931346010

main29313-46010

9009904894

main90099-04894

9020114099

main90201-14099

9040109001

main90401-09001

9040110006

main90401-10006

9040114033

main90401-14033

9040451012

main90404-51012

9043010035

main90430-10035

9611110140

main96111-10140

18 parts on this diagram · 3 diagrams in section
